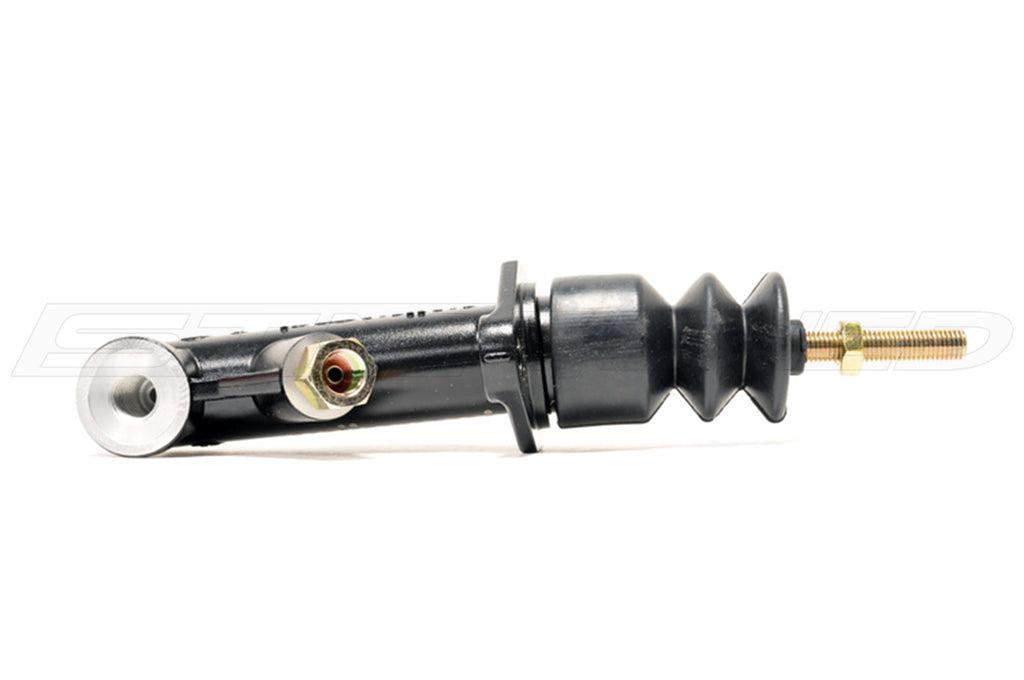

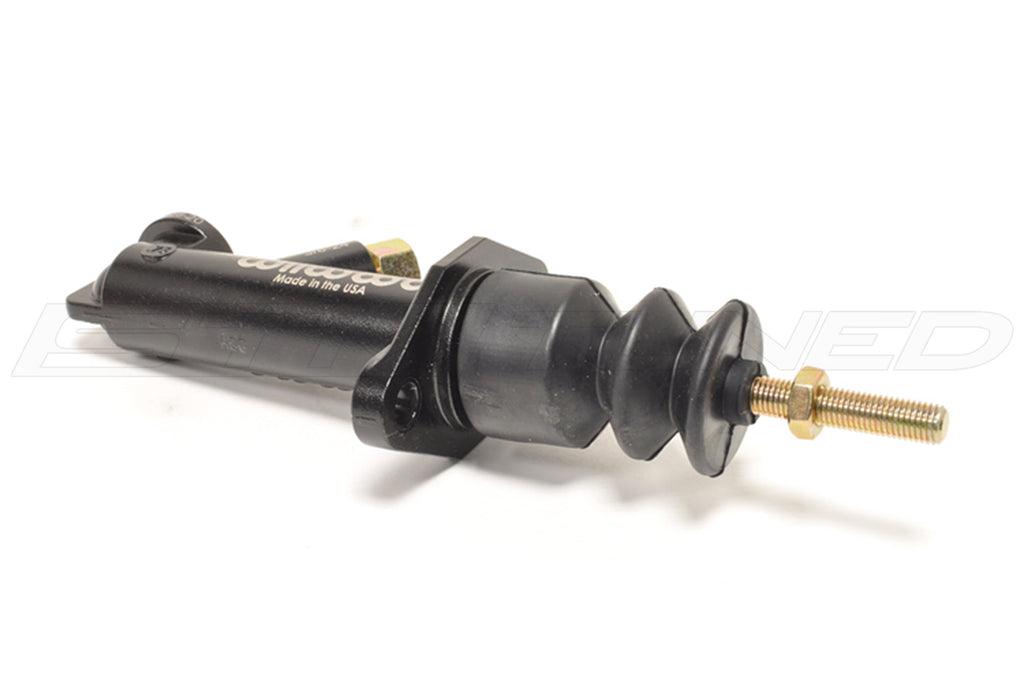

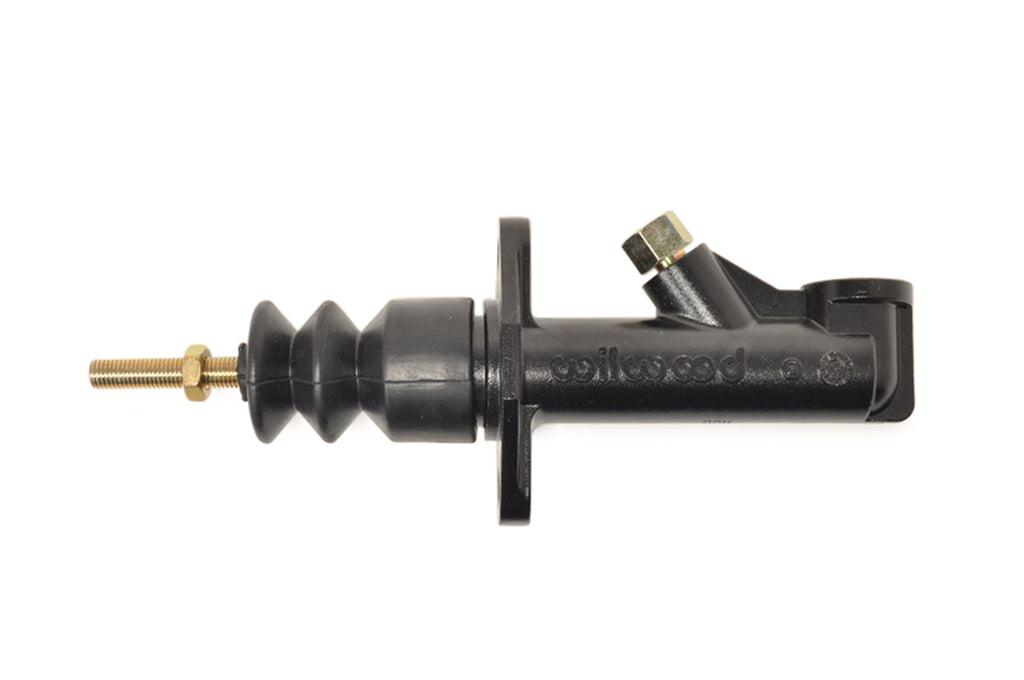

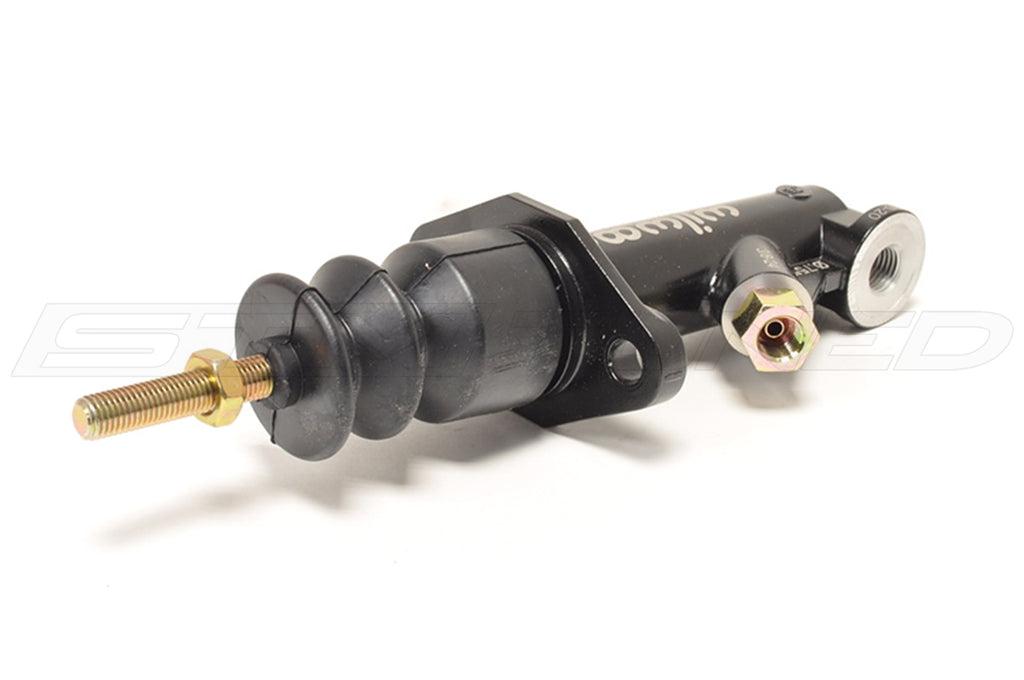

Wilwood GS Compact Remote Master Cylinder (260-15091)
63.80€
Sold By: Baltic Turbo Motors
Wilwood GS Compact Remote Master Cylinder features a high pressure, rebuildable design with die cast
SKU: WIL-260-15091
Categories: Performance Parts
Share:
Wilwood GS Compact Remote Master Cylinder features a high pressure, rebuildable design with die cast aluminum body with a protective e-coat finish. Standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
Vehicle Fitment:
Universal Application
Purchase Includes:
(1) Master Cylinder
Install PDF:
Vehicle Fitment:
Universal Application
Purchase Includes:
(1) Master Cylinder
Install PDF:

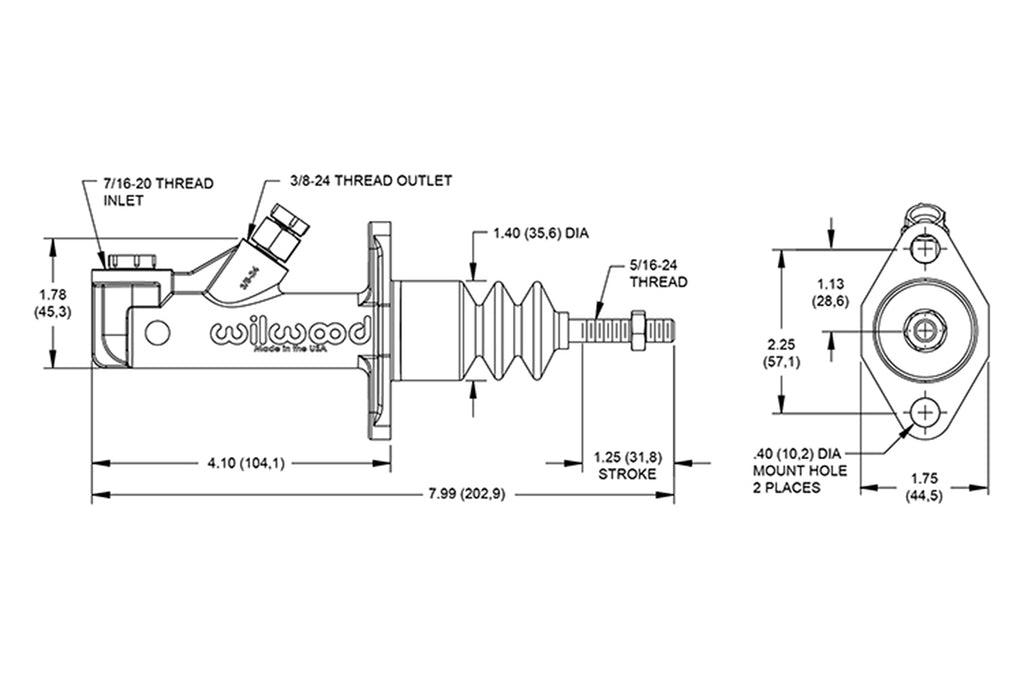

| Master Cylinder Dimensions: | |
| Bore Size | 3/4' |
| Area (in²) | 0.44 |
| Stroke | 1.25 |
| Volume (cu in) | 0.55 |
| Master Cylinder Description: | |
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum |
| Finish | Black E-coat |
| Reservoir: | |
| Res Type | Remote |
| Additional Dimensions | |
| Overall Length | 7.85' |
| Flange to End Length | 4.10' |
| Inlet Size | 7/16-20 |
| Outlet Size 1 | 3/8-24 |
| Outlet Fit 1 | 3/8-24 IF Female |
