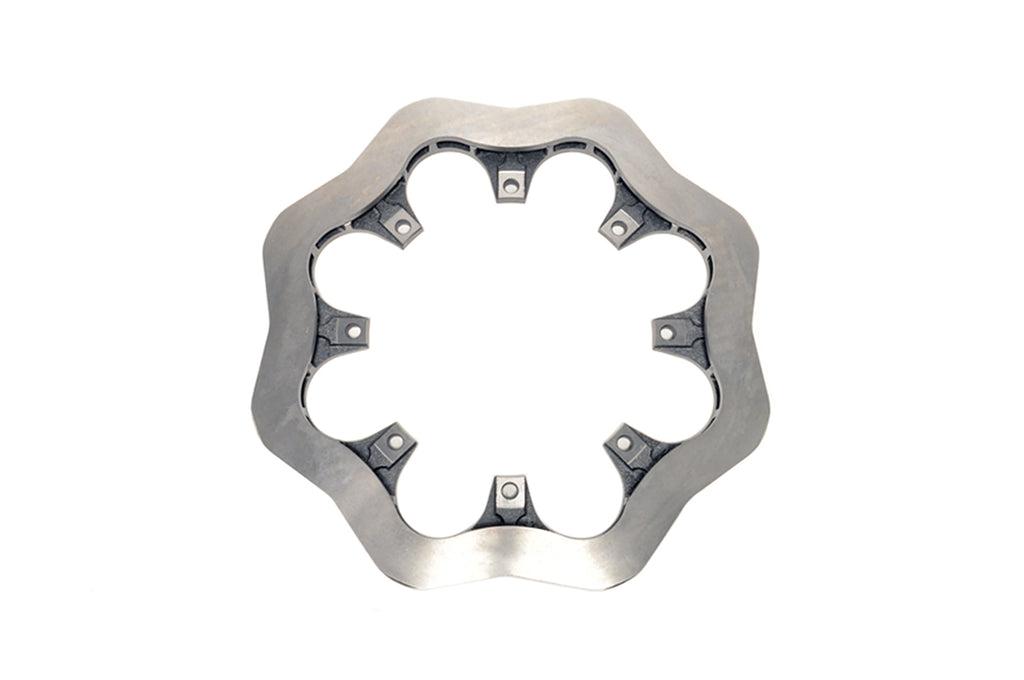

Wilwood Scalloped Rotor for STM Front Drag Brakes (160-8135)

If you need to replace the rotors on your STM Front Drag Brake Kit, this is the lightweight scalloped option. If you previously had the standard rotor, this is a direct replacement as they are interchangeable. Sold individually as needed, price is for one rotor.

Vehicle Fitment:
• STM Front Drag Brakes
• Replacement vented scalloped rotor

Rotor Weight:
5.05 pounds

Purchase Includes:
(1) Rotor

Features:
• Not intended for street use
• Not for use with stock calipers
• Vented rotor construction
• Solid surface
• Carbon iron rotor material

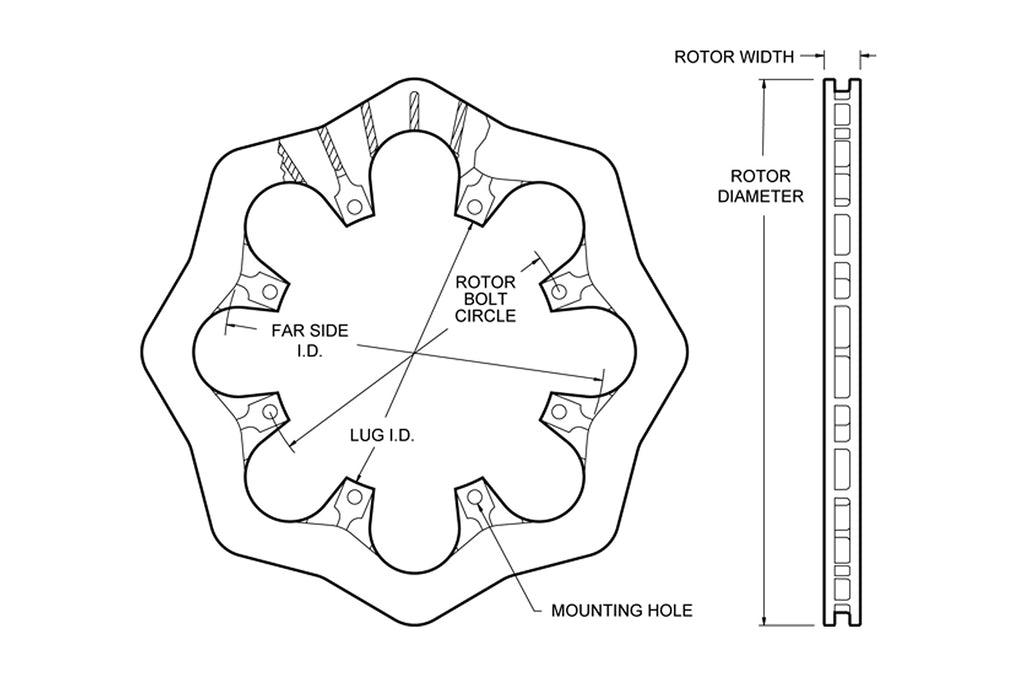

Specs:
• Rotor Diameter: 11.750'
• Rotor Width: 0.810'
• Rotor Bolt Circle: 8 x 7.00'
• Mounting Hole Size: 0.326'
• Lug ID: 6.38'
• Far Side ID: 8.34'
