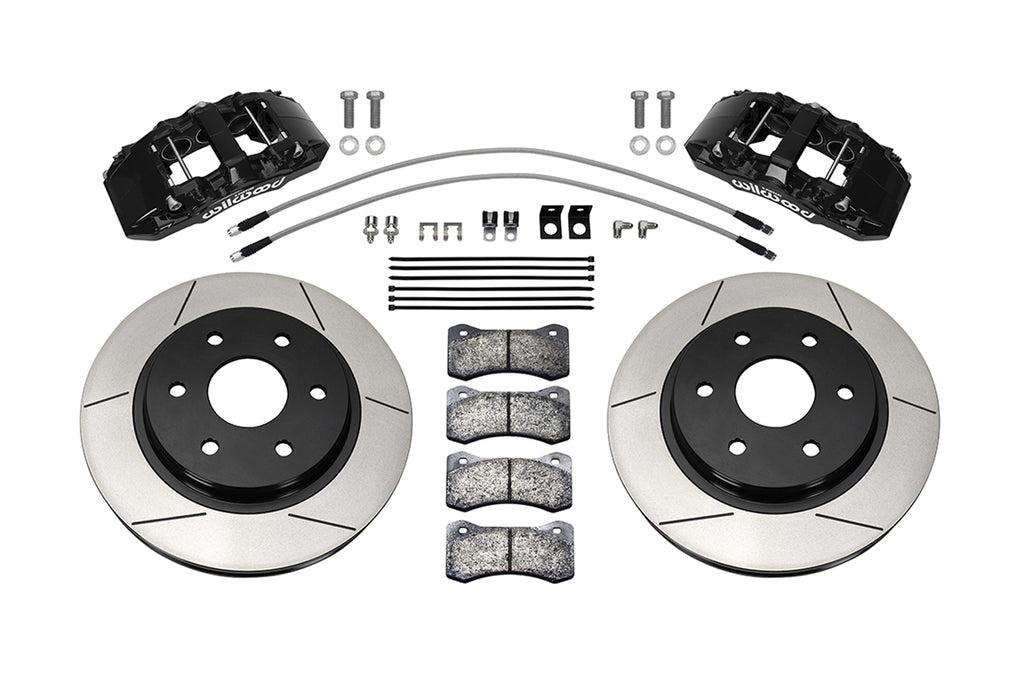

Wilwood AERO6-DM Front Brake Kit for 2021+ Raptor Gen 3

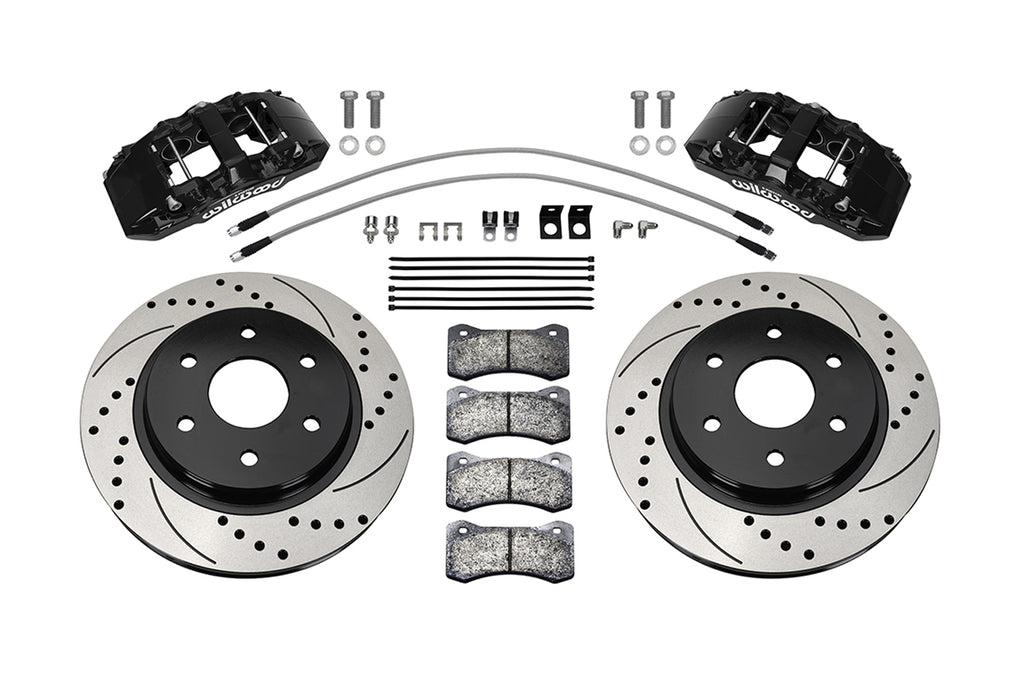

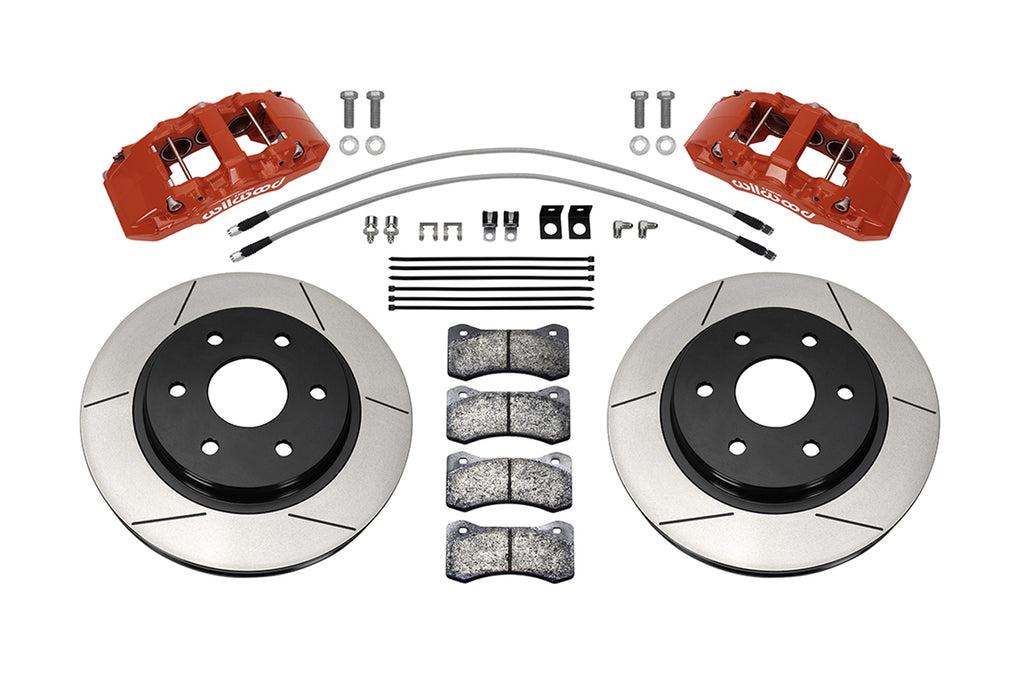

Wilwood AERO6-DM direct mount front brake kit for 2021+ Ford F150 Raptor provides big stopping power and maximum cooling. Available with red or black calipers and your choice of slotted or slotted/drilled rotors.

Vehicle Fitment:
Ford F-150 2021-2024 Raptor
Ford F-150 2024 Raptor R

Installation:

Quick Specs:
• 17' minimum wheel diameter required

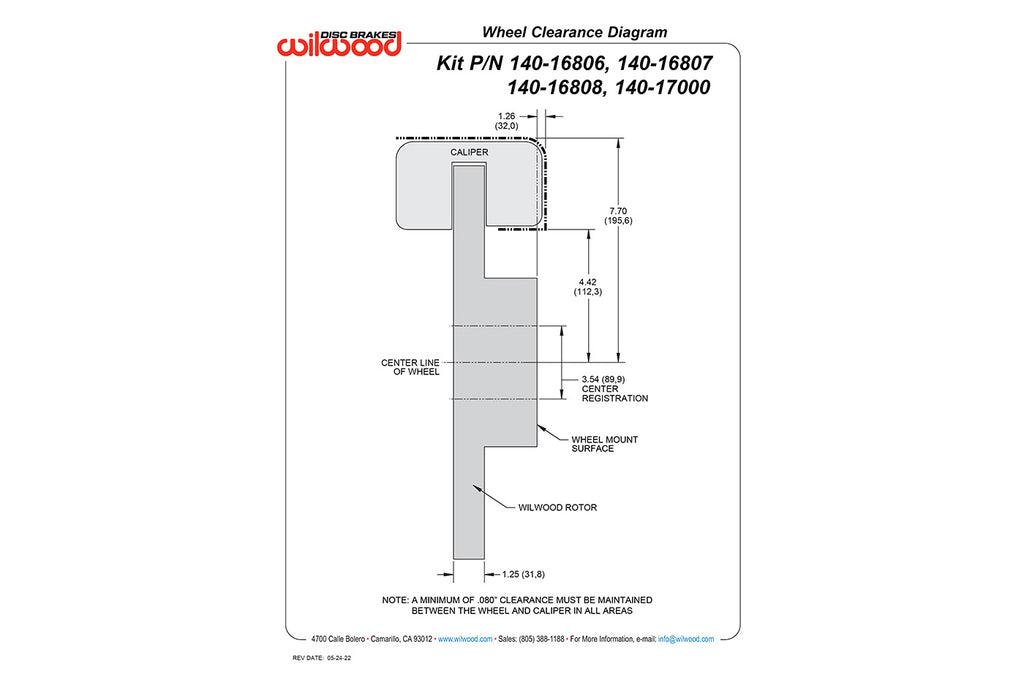

• This brake kit may fit 17-inch wheels. *Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel
• Rotor Diameter 13.38'
• Rotor Thickness 1.25'
• Rotor Bolt Pattern 6x5.315'

More from Wilwood:
Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38' to 13.56' diameter rotors provide maximum cooling for sustained high heat durability.

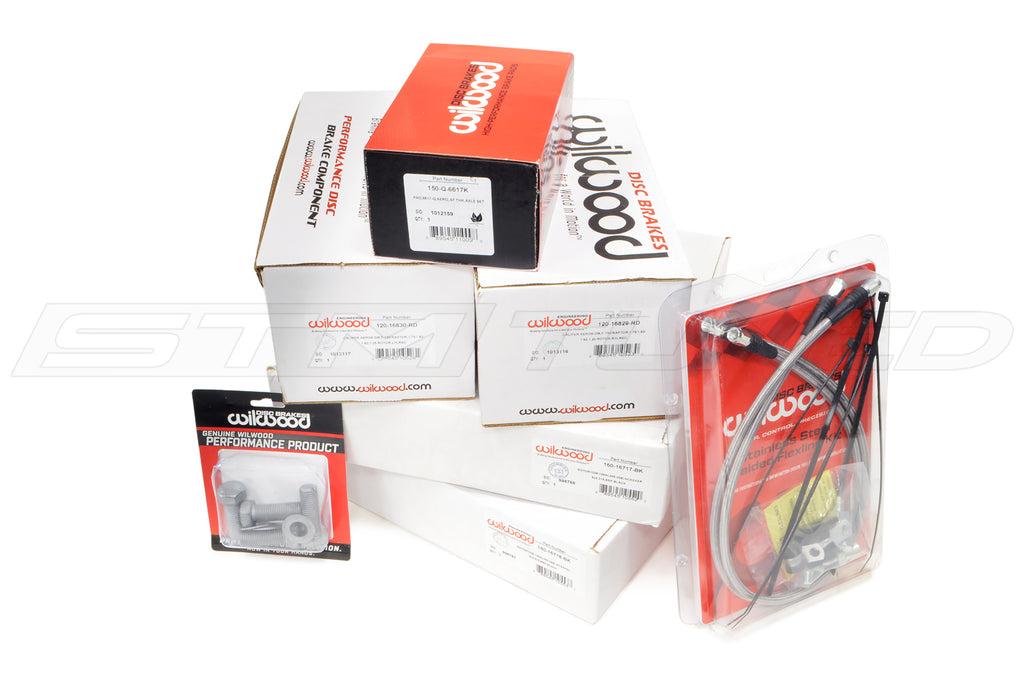

Included/Replacement Part Numbers:
All parts of the brake kits are available for maintenance or replacement.
(1) Brake Line Kit for Gen 3 (220-17001)
(1) Brake Pad Kit (150-Q-6617K - includes 300-14504 Clips)
(1) Caliper Bolt Kit (230-16860)
(2) Calipers (see below)
(2) Rotors (see below)

LH vs RH?
Left Hand and Right Hand is determined by driver position. From the driver seat, which side is it on?

This brake kit is the same for Gen 2 Raptor - except the brake lines are different.
