Wilwood AERO6-DM Front Brake Kit for 2017-2020 Raptor Gen 2

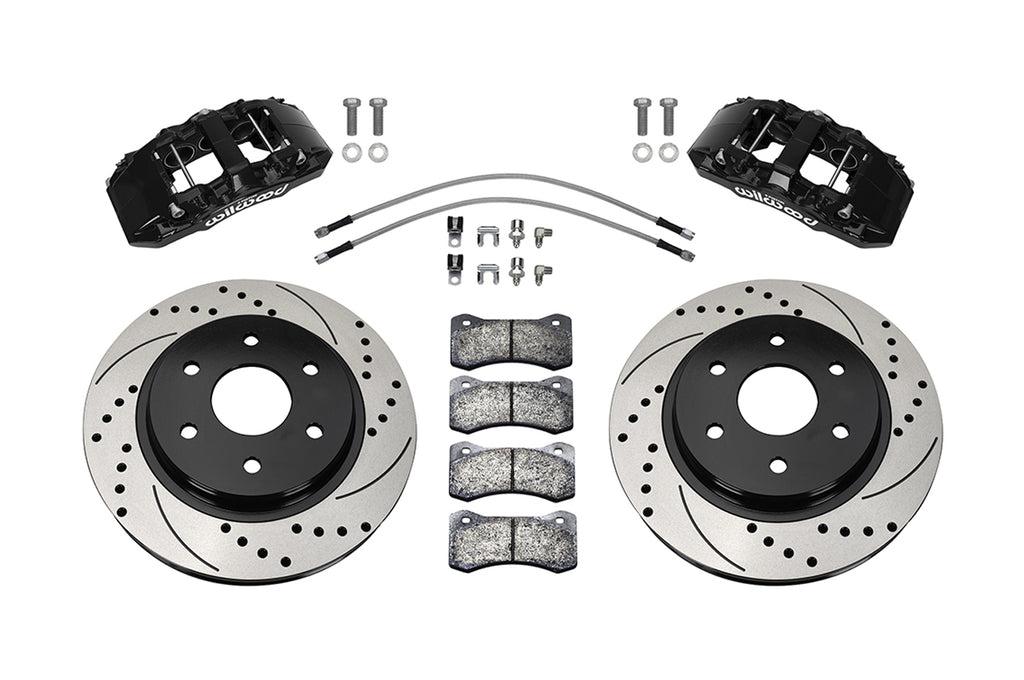

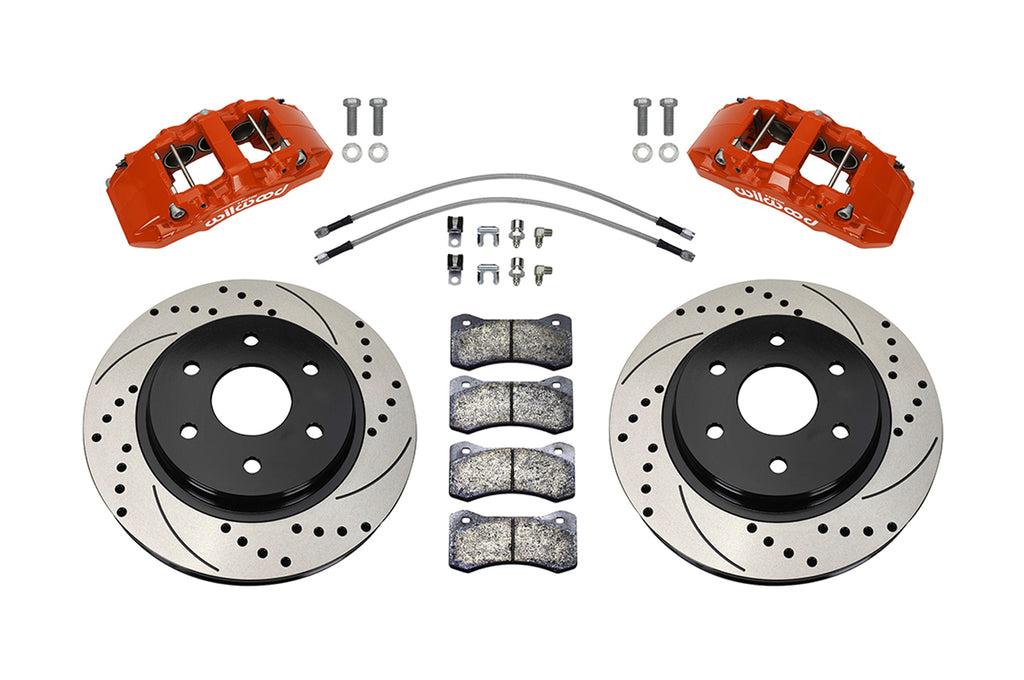

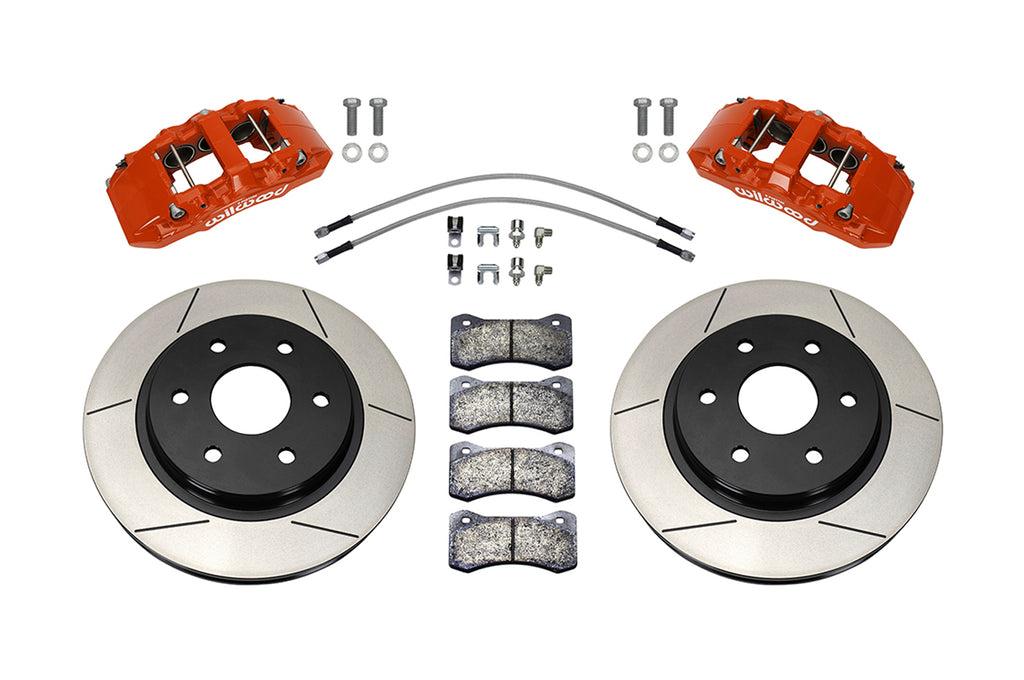

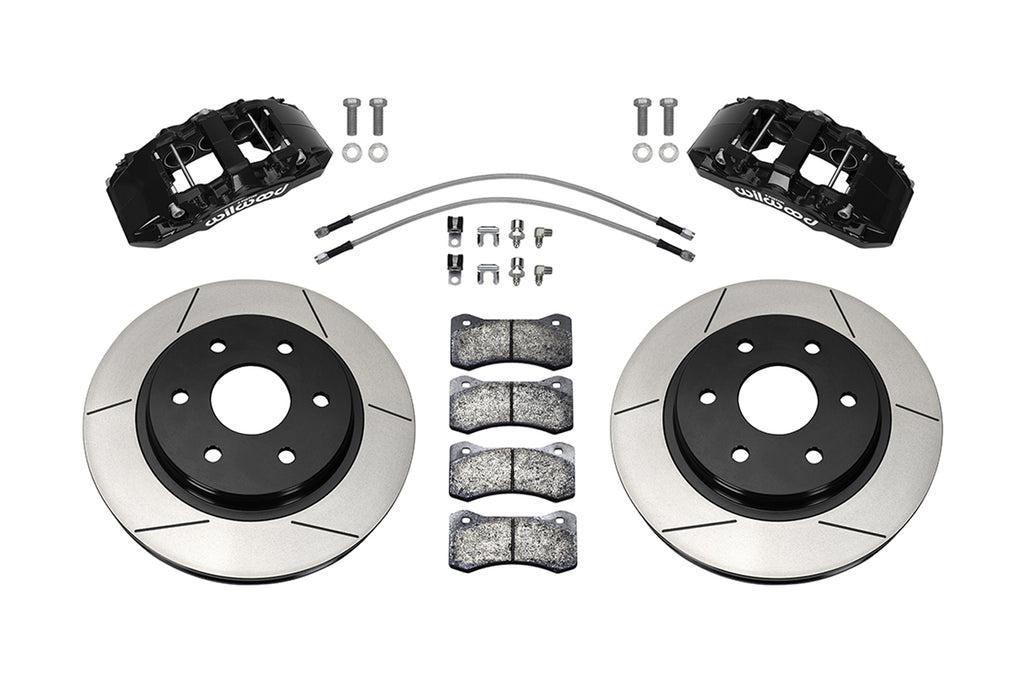

Wilwood AERO6-DM direct mount front brake kit for 2017-2020 Ford F150 Gen 2 Raptor provides big stopping power and maximum cooling. Available with red or black calipers and your choice of slotted or slotted/drilled rotors.

Vehicle Fitment:
Ford F-150 2017-2020 Raptor (Gen 2)

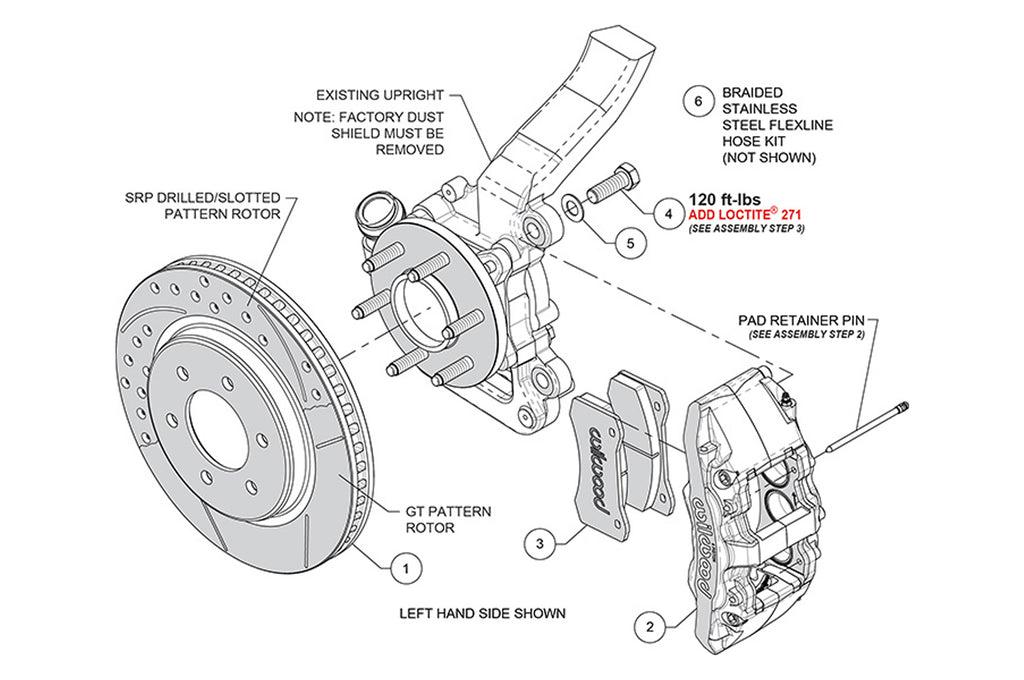

Installation:

Quick Specs:
• 17' minimum wheel diameter required

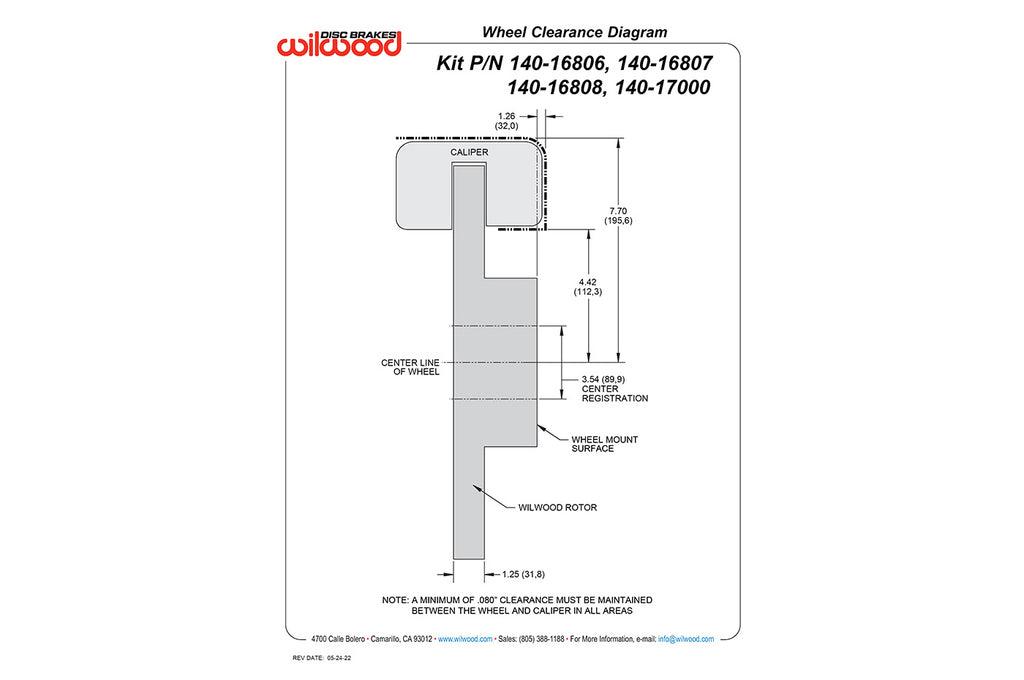

• This brake kit may fit 17-inch wheels. *Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel
• Rotor Diameter 13.38'
• Rotor Thickness 1.25'
• Rotor Bolt Pattern 6x5.315'

More from Wilwood:
Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38' to 13.56' diameter rotors provide maximum cooling for sustained high heat durability.

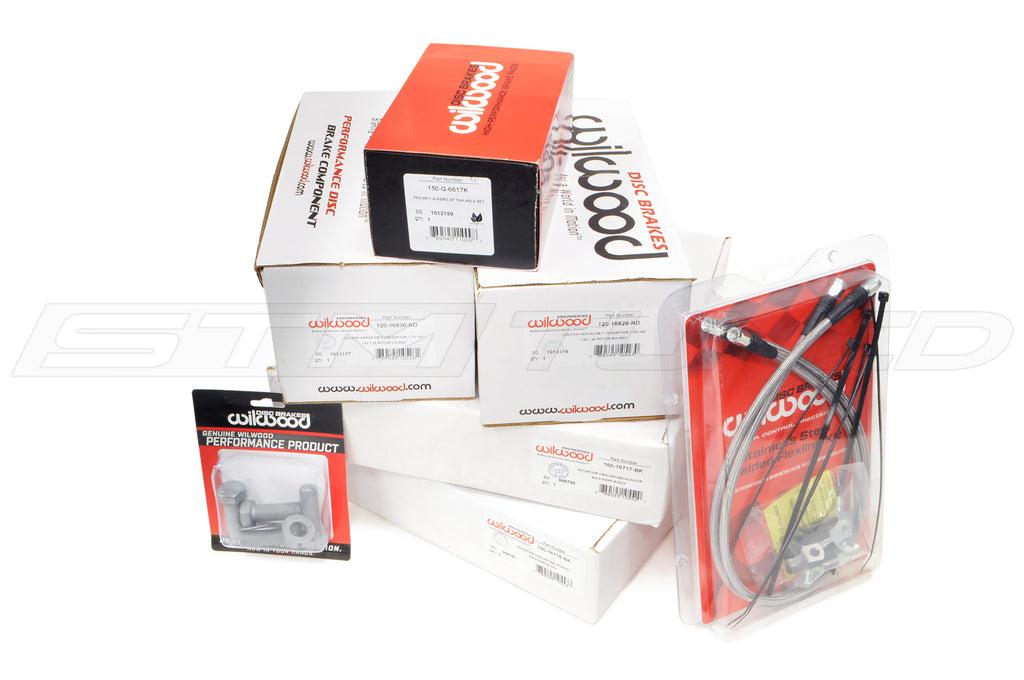

Included/Replacement Part Numbers:
All parts of the brake kits are available for maintenance or replacement.
(1) Brake Line Kit for Gen 2 (220-15838)
(1) Brake Pad Kit (150-Q-6617K - includes 300-14504 Clips)
(1) Caliper Bolt Kit (230-16860)
(2) Calipers (see below)
(2) Rotors (see below)

LH vs RH?
Left Hand and Right Hand is determined by driver position. From the driver seat, which side is it on?
