Weldon Fuel Filter 100 Micron (Pre-Pump)

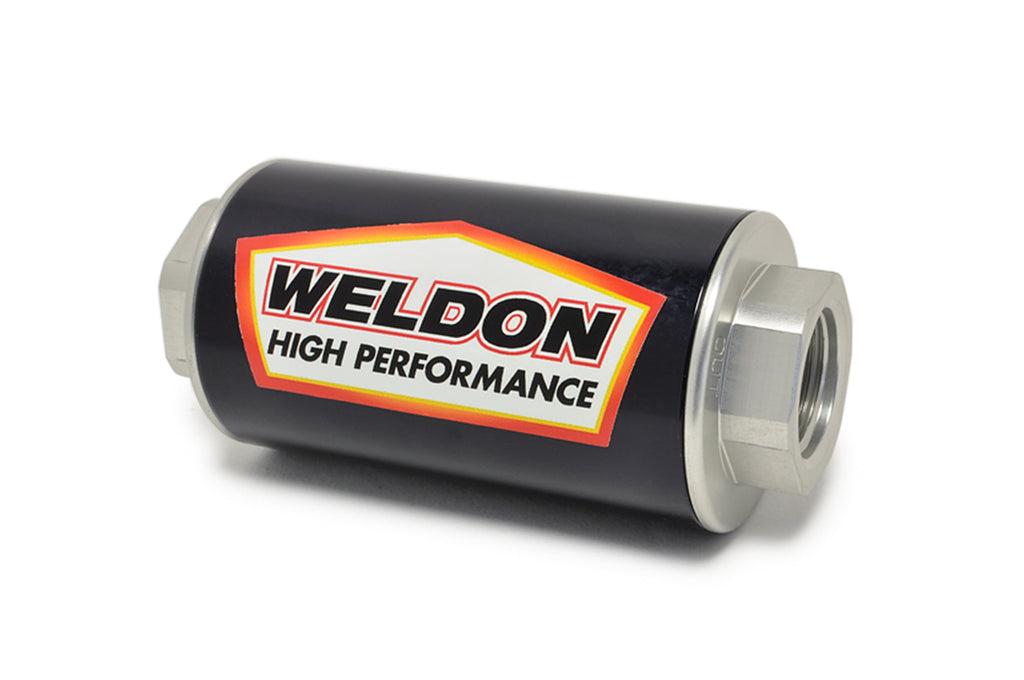

These Weldon fuel filters come with a 100 micron stainless steel filter element and are designed to be a pre-pump filter, placed in-line before the fuel pump. These filters are available with -8AN, -10AN or -12AN inlet and outlet ports.

Features:
• Over 60 square inches of filtering area

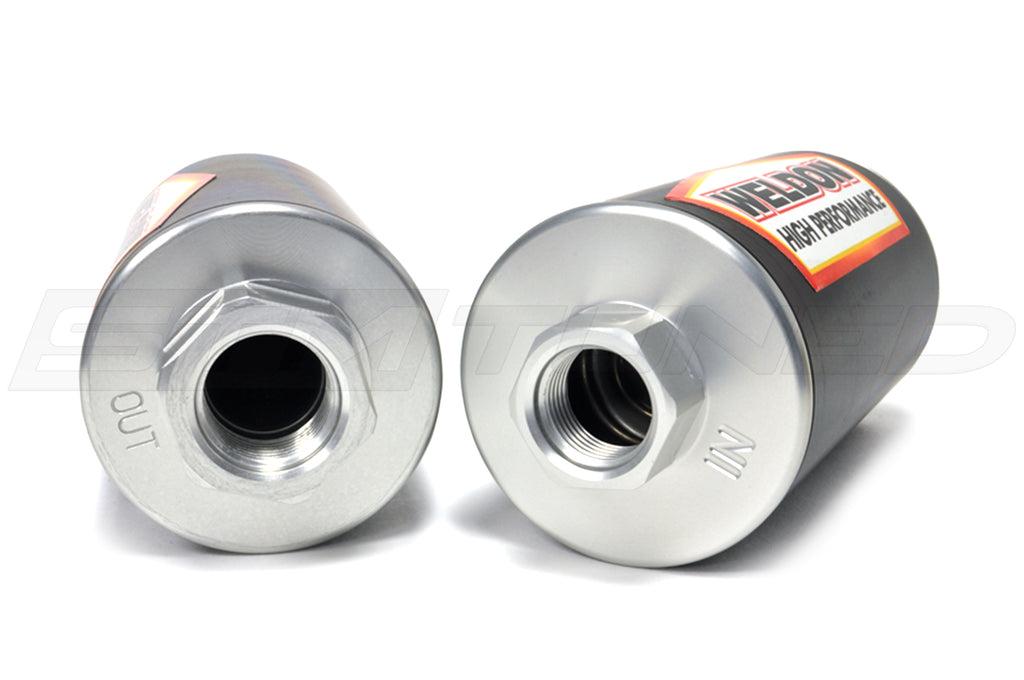

• 8AN, 10AN, 12AN, or 12AN LONG O-ring ports
• Radiused end caps to improve fuel flow within filter
• Compact size: 5.5' long x 2.38' diameter
• Long 100 Micron filter dimensions are 6.75' in length by 2.38' in diameter
• Bright Dipped Anodized for a long lasting high-performance finish
• Replaceable Filter Elements available
• Minimal pressure drop

Purchase Includes:
(1) Filter Housing with Stainless Element

Notes:
• 10/40 Micron filters are designed to be placed in line AFTER the pump.
• 100 Micron filters are designed to be a pre-pump filter.
• For fuels other than gasoline, a stainless filter element is recommended.
• Cellulose should never be used with E85!

Replacement Filter Elements are Also Available:
If you need to replace your filter, we also offer the elements separately.
•

Discounts:
Weldon products are not available for discounts or codes.
