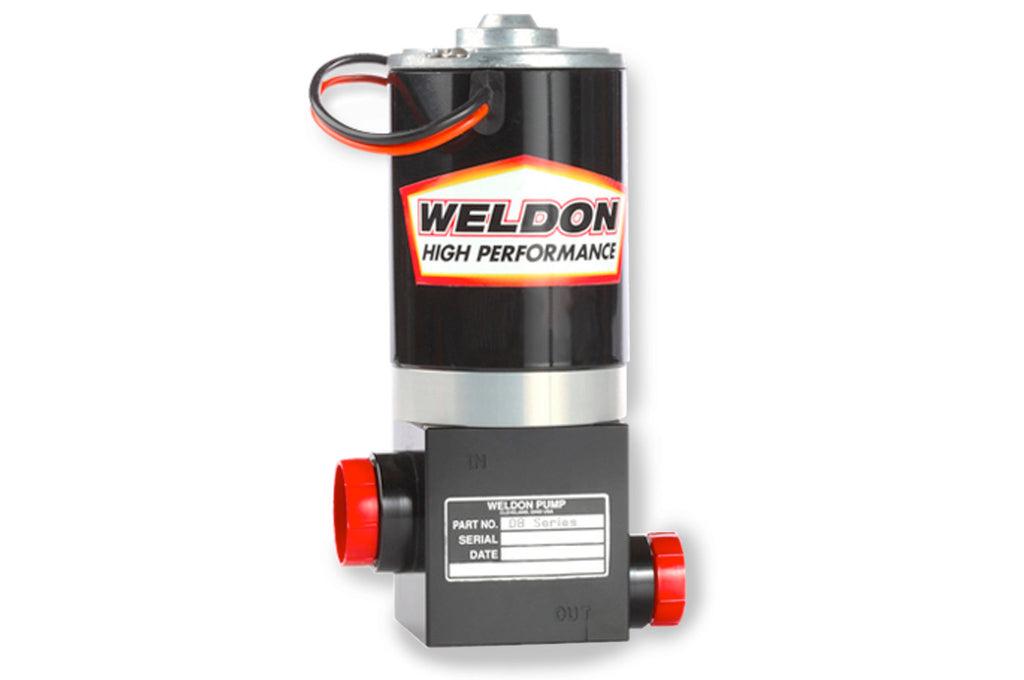

Weldon 1400 HP Fuel Pump All Fuel Types (DB2025-A)

The Weldon DB2025-A electric fuel pumps are designed for application in both carbureted and fuel-injected engines. These fuel pumps are self-priming, for a reliable and precise fuel flow. These billet pumps are entirely serviceable and come equipped with a breakaway coupling to protect against potential damage to the pump or motor in case of contamination. This external fuel pump offers flow rates to support 880 to 1,400 horsepower.

Vehicle Fitment:
• Universal Product

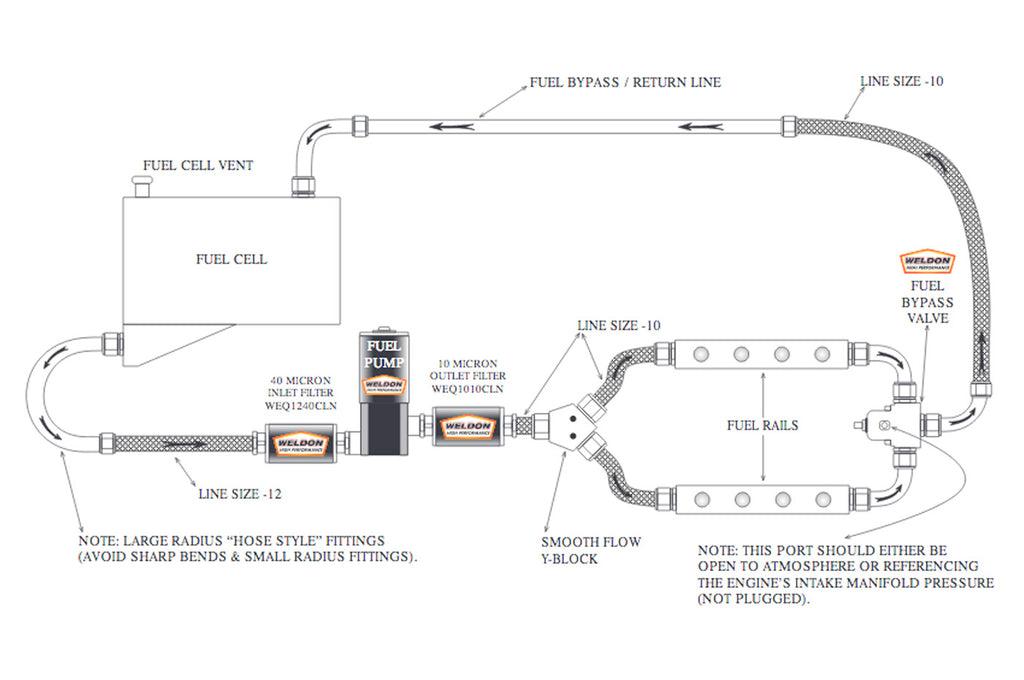

For Fuel Injected Engines:
• 1600 HP @ 50 PSI (Naturally Aspirated)
• 1400 HP at 80 PSI (Boosted)

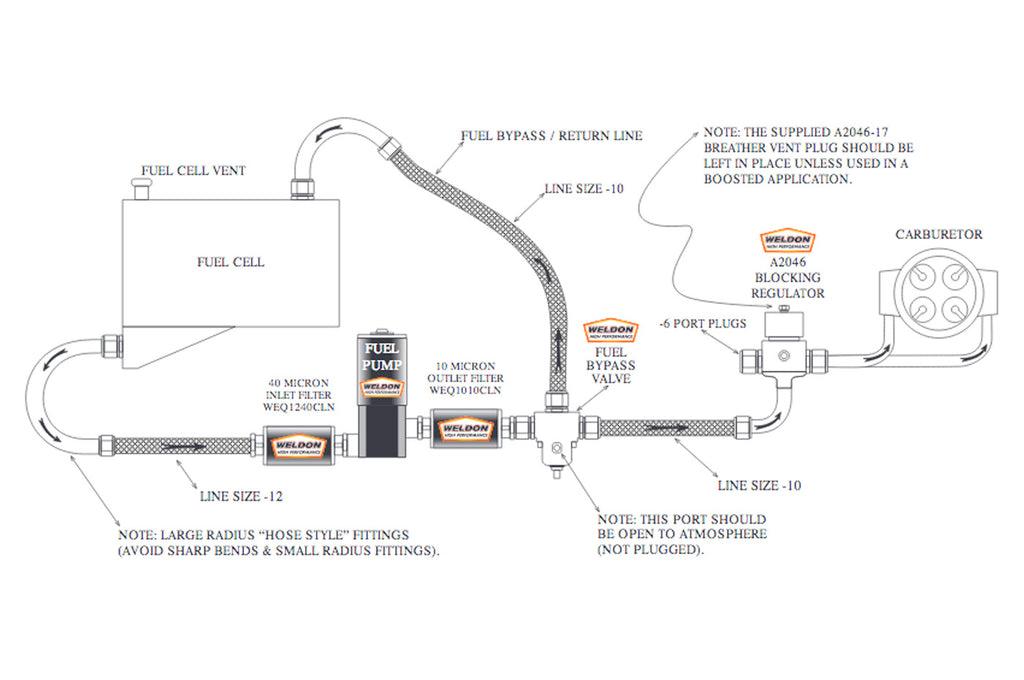

For Carbureted Engines:
• 1800 HP @ 7 PSI (Naturally Aspirated)
• 1700 HP @ 30 PSI (Boosted)

Specs:
• Precise, consistent fuel delivery
• Self priming
• Pump element is 100% tool steel
• Body machined from billet aluminum
• All billet body pumps are 100% serviceable
• Breakaway coupling prevents pump / motor damage in the event of contamination
• For carbureted and injected engines

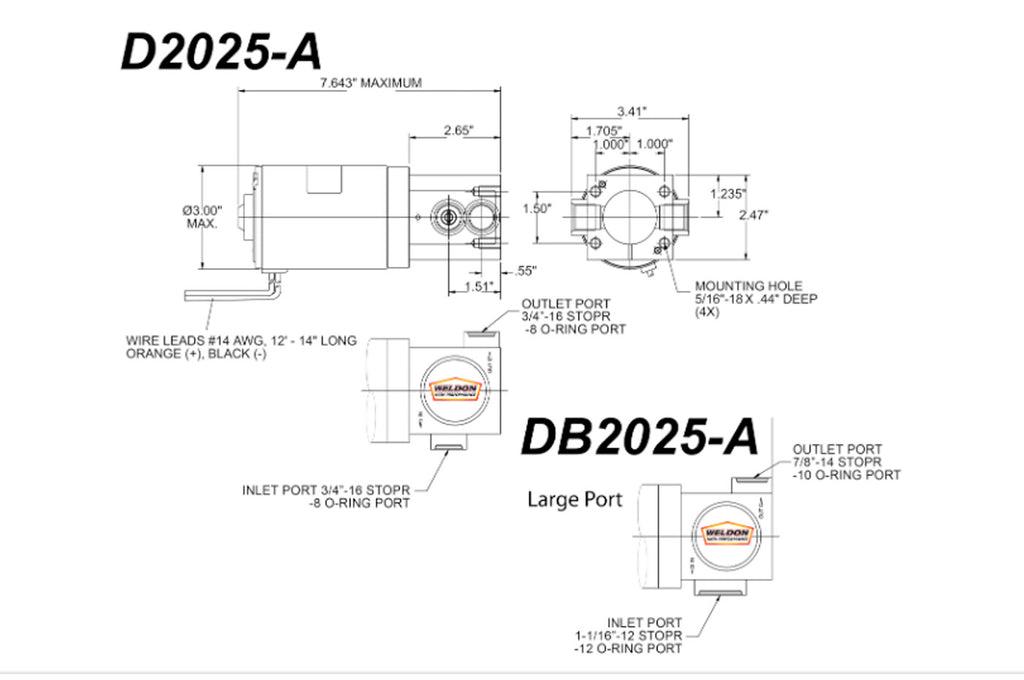

• -12 inlet and -10 outlet o-ring ports (Note: If you need -8 inlet and -8 outlet, check out the )
• Weighs 5.5 pounds

Filtration Recommendations:
•
•
• For fuels other than gasoline, a stainless filter element is recommended.

Compatible Fluids:
• Gasoline
• Methanol
• Diesel
• Ethanol
• All racing fuels

Discounts:
Weldon products are not available for discounts or codes.
