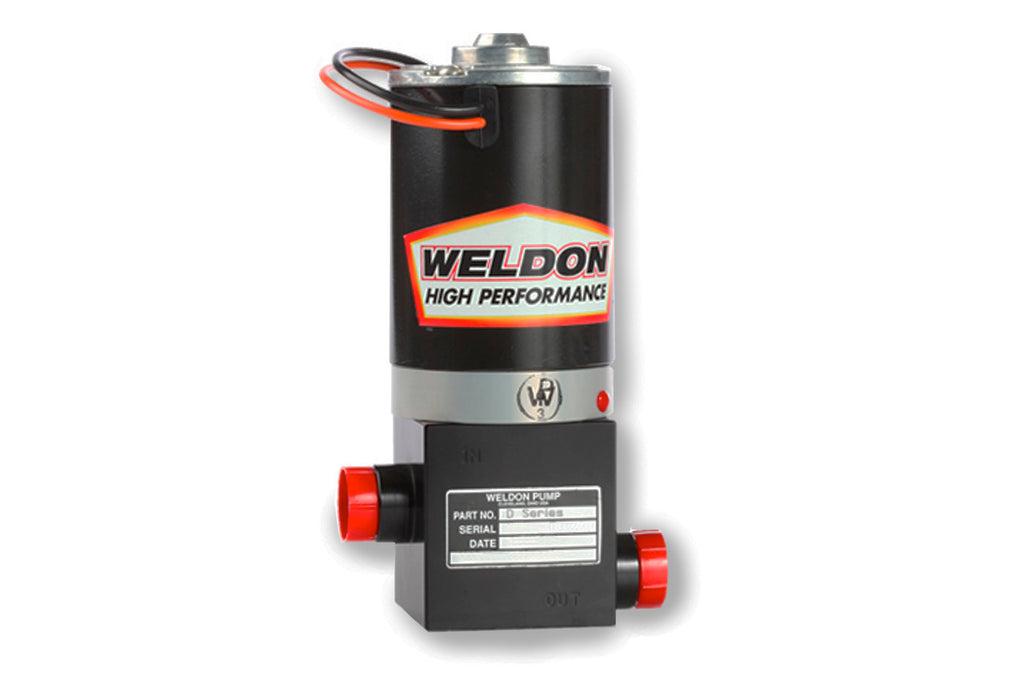

Weldon 1400 HP Fuel Pump All Fuel Types (D2025-A)

The Weldon D2025-A electric fuel pumps are designed for both carbureted and fuel-injected engines. This fuel pump is self priming, providing a consistent and precise fuel delivery. Additionally, these billet pumps are entirely serviceable, and have breakaway coupling to prevent pump or motor damage if contamination occurs. This external fuel pump offers flow rates to support up to 1,400 hp.

Vehicle Fitment:
• Universal Product

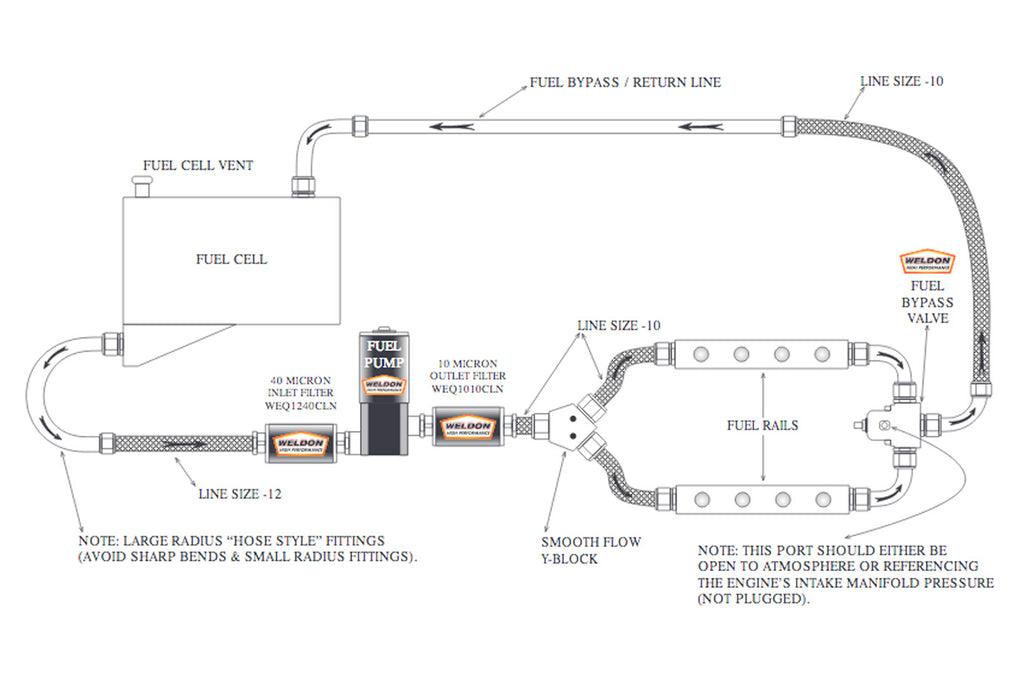

For Fuel Injected Engines:
• 1600 HP @ 50 PSI (Naturally Aspirated)
• 1400 HP at 80 PSI (Boosted)

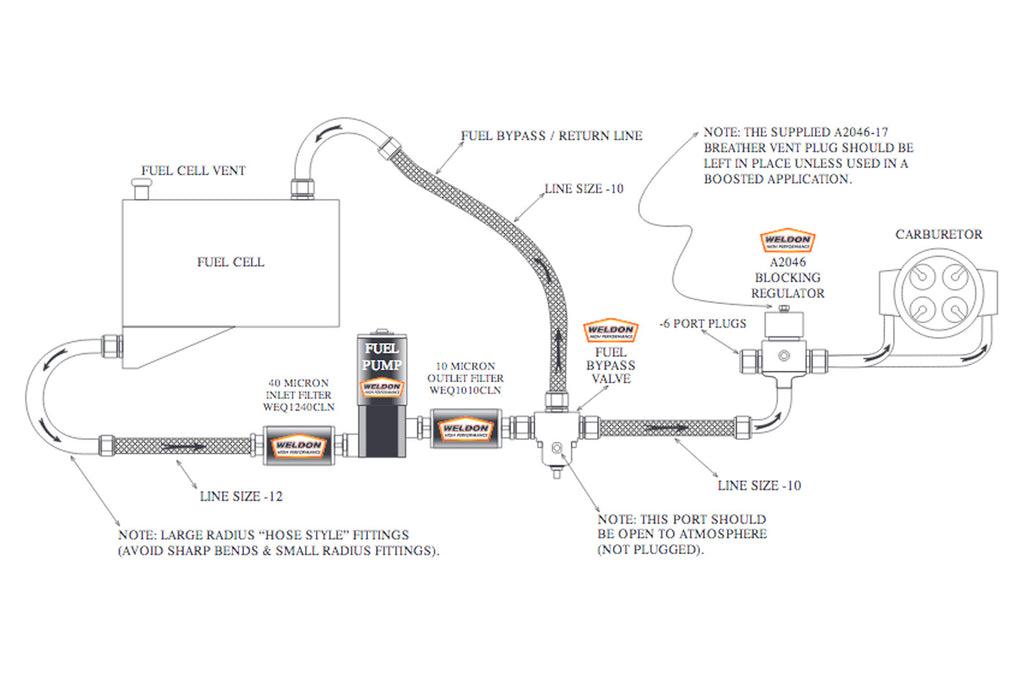

For Carbureted Engines:
• 1800 HP @ 7 PSI (Naturally Aspirated)
• 1700 HP @ 30 PSI (Boosted)

Specs:
• Precise, consistent fuel delivery
• Self priming
• Pump element is 100% tool steel
• Body machined from billet aluminum
• All billet body pumps are 100% serviceable
• Breakaway coupling prevents pump / motor damage in the event of contamination
• For carbureted and injected engines

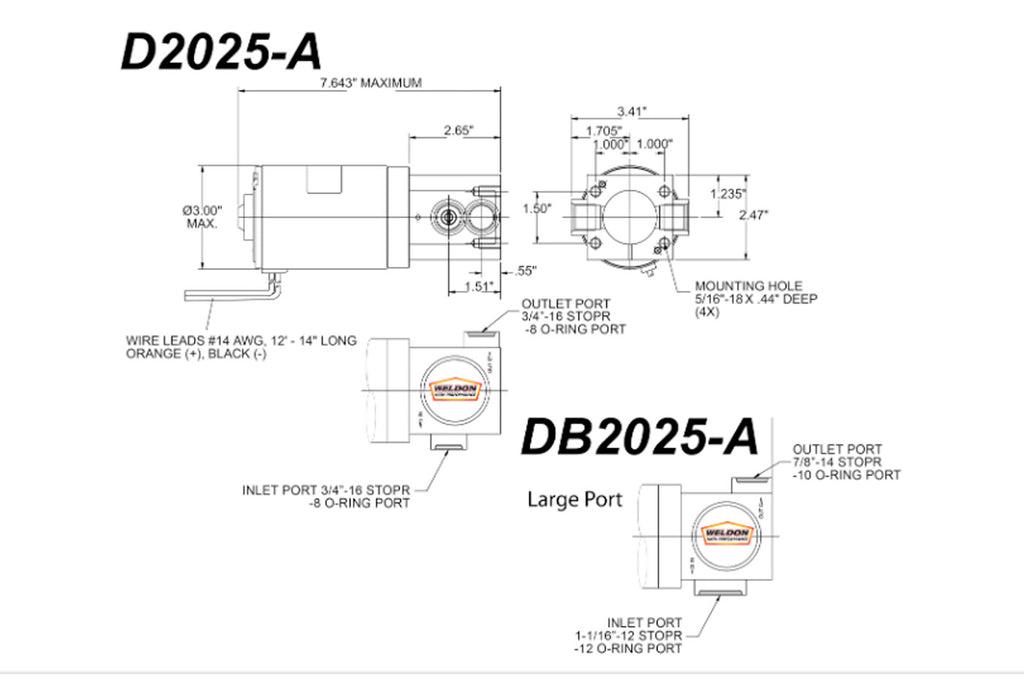

• -8 inlet and -8 outlet o-ring ports (Note: If you need -12 inlet and -10 outlet, check out the )
• Weighs 5.5 pounds

Filtration Recommendations:
•
•
• For fuels other than gasoline, a stainless filter element is recommended.

Compatible Fluids:
• Gasoline
• Methanol
• Diesel
• Ethanol
• All racing fuels
