Walbro 525 LPH F90000285 In-Tank Fuel Pump (Gas/E85)

The new Walbro F90000285 525 LPH is compatible with both gasoline and E85 for use with vehicles making 500-900 HP. Matching and are available in the purchase menu for a complete installation!

Vehicle Fitment:
Universal Fitment
Requires modifications to wiring, fuel lines and fuel module.
Compatible with Evo/DSM/GTR/WRX/STi/3000GT and more!
Professional installation recommended.

Fuel Compatibility:
Gasoline
E85 Safe!

Purchase Options:
Fuel Pump Only (F90000285)

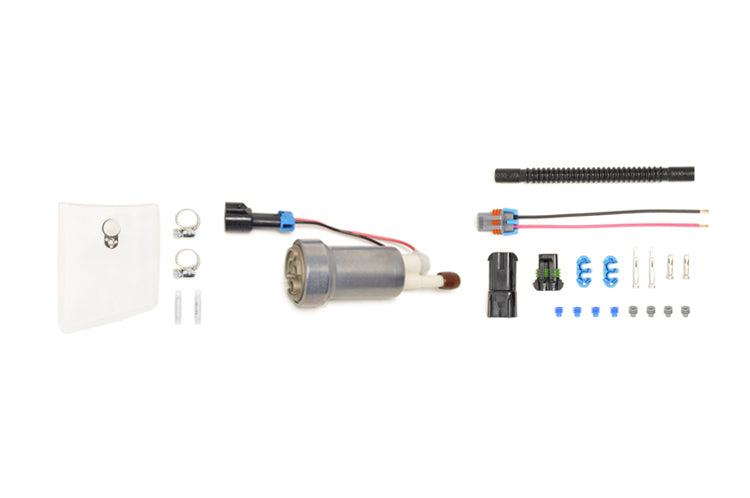

Fuel Pump & Install Kit (F90000285 & 400-1168)

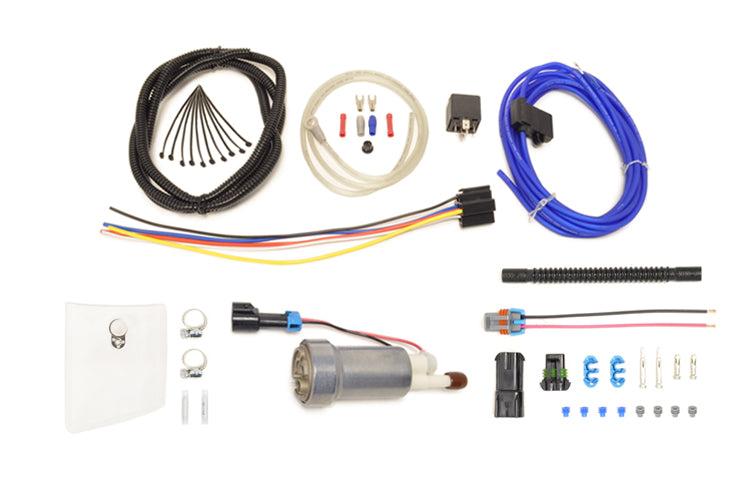

Fuel Pump, Install Kit and Re-Wire Kit

Full Description:

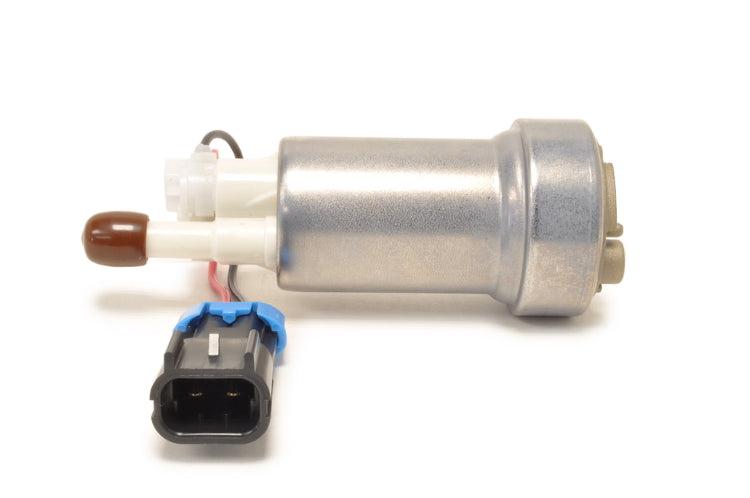

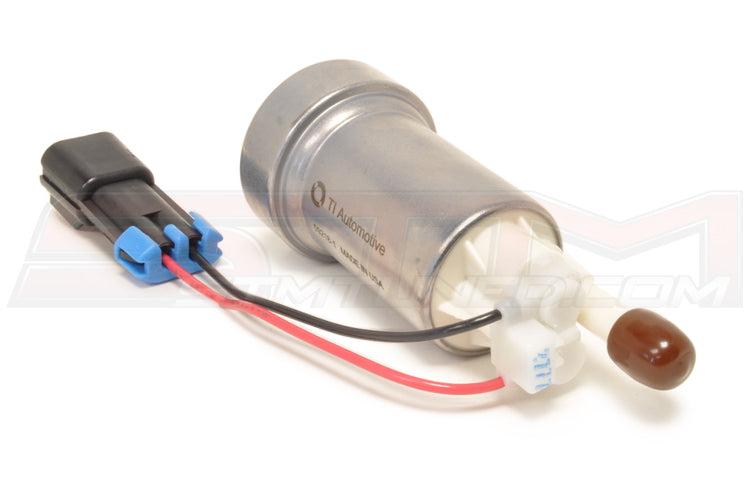

Walbro / TI Automotive F90000285 39/50 Fuel Pump.

Able to support an aggressive 900+ horsepower, this innovative, dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and ethanol/ E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalleled performance.

This innovative design features a single impeller with two parallel rows of turbine blades. Designed for high performance engines outputting 500-900 HP.

Features:
• Highest flow in-tank brushed fuel pump offering from TI Automotive
• Featuring award winning DCSS technology
• E85 compatible
• Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
• High pressure relief setting — support supercharger and turbo applications
• Capable of supporting 900+HP at 60PSI naturally aspirated applications
• Flush mountable to existing hanger with installation kit 400-1168

Specs:
Fuel: GAS & E85
Horsepower: 900+ at 60 PSI
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD

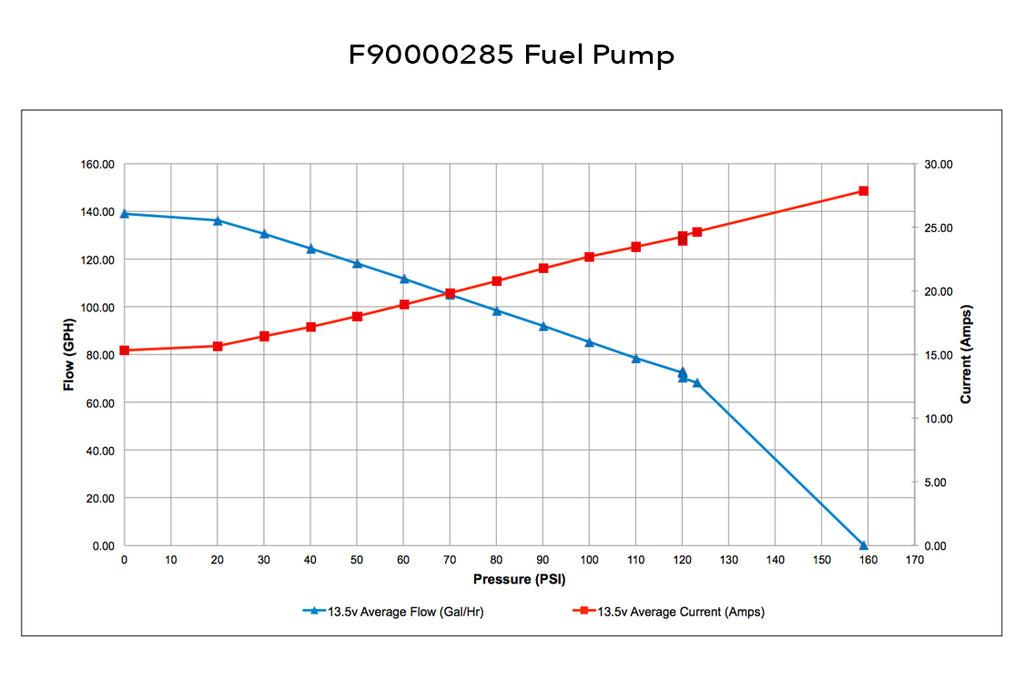

Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts

'For decades, Walbro automotive fuel pumps have been manufactured by TI Automotive. These same pumps are now branded with the TI Automotive name, carrying a legacy for more than 60 years of manufacturing the most popular drop-in fuel pumps, with the same performance, quality and reliability that you have come to know and expect.'
