Walbro 400 LPH F90000262 In-Tank Fuel Pump (Gas)

The Walbro F90000262 400 LPH is compatible with gasoline and for use with vehicles making up to 650 HP. Matching Matching and are available in the purchase menu for a complete installation!

Vehicle Fitment:
Universal Fitment
Requires modifications to wiring, fuel lines and fuel module.
Compatible with Evo/ DSM/ GTR/ WRX/ STi/ 3000GT and more!
Professional installation recommended

Fuel Compatibility:
Gasoline
Not for use with E85

Purchase Options:
Fuel Pump Only (F90000262)

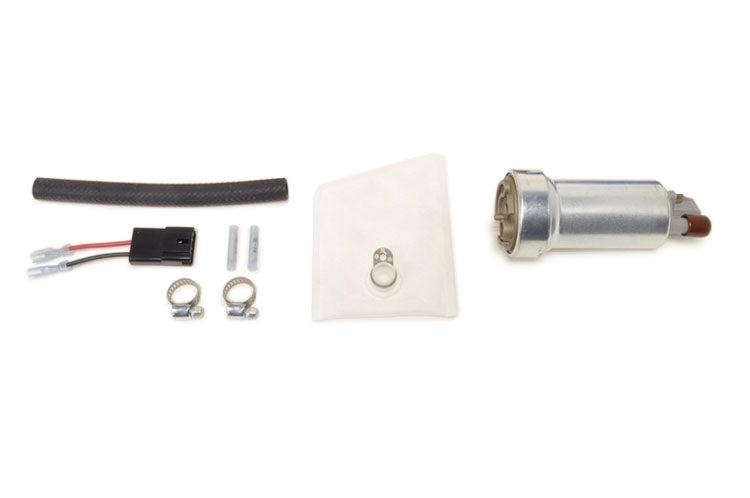

Fuel Pump & Install Kit (F90000262 & 400-1136)

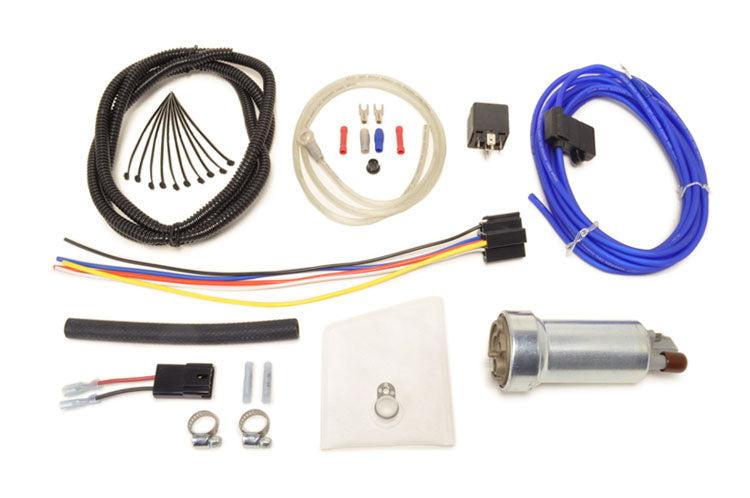

Fuel Pump, Install Kit and Re-Wire Kit

Full Description:
Walbro / TI Automotive High Pressure F90000262 Fuel Pump.

This innovative, high-performance design features a dual-channel, single-stage (DCSS) 39/50 fuel pump for engines with more than 500 HP. The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge. You'll see an improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that’s 20% higher than conventional pumps.

Features:
• Designed for engines with more than 500 HP
• Award-winning OE technology
• High-pressure, high-flow performance
• Requires modifications to wiring,fuel lines and fuel module
• Professional installation recommended
• Outperforms all current market in-tank fuel pumps
• Uses Install Kit (400-1136)

Specs:
Fuel: GAS
Horsepower: 650
Flow Rate (lph): 400
Flow Rate (gph): 106
Pressure (psi): 50
Pressure (kPa): 345
Max System Pressure (psi): 87
Max System Pressure (kPa): 600
Filter Group: B
Inlet Diameter: 14mm
Inlet Configuration: 0° outlet fitting to inlet orientation
OD (large): 50mm
OD (small): 39mm
Length: 121mm

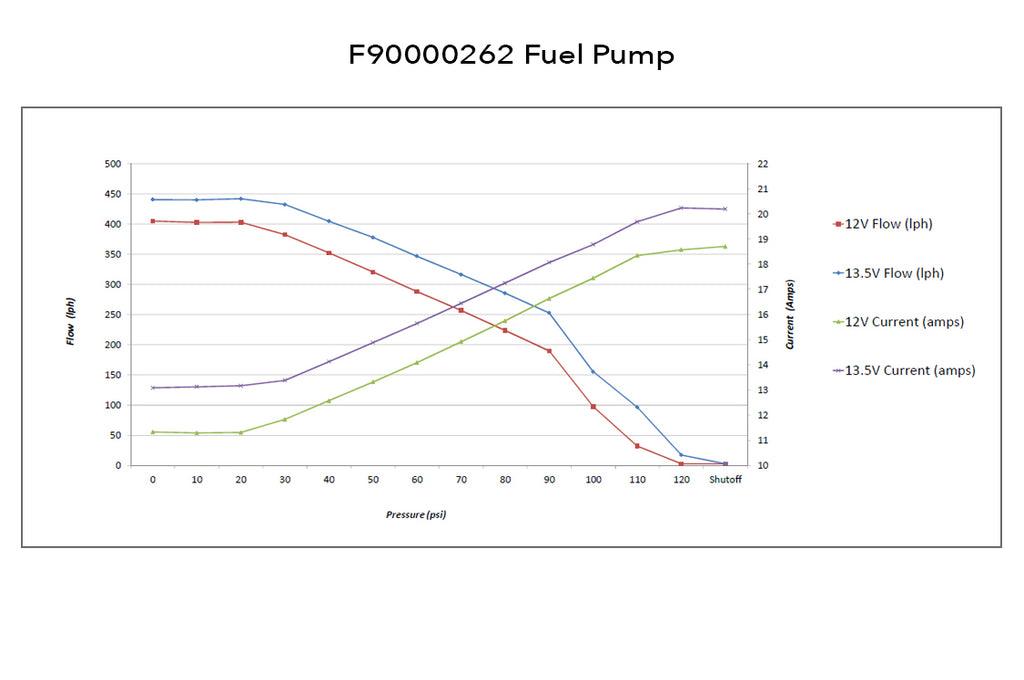

Flow rate: 400LPH @ 40PSI @ 13.5 Volts

'For decades, Walbro automotive fuel pumps have been manufactured by TI Automotive. These same pumps are now branded with the TI Automotive name, carrying a legacy for more than 60 years of manufacturing the most popular drop-in fuel pumps, with the same performance, quality and reliability that you have come to know and expect.'
