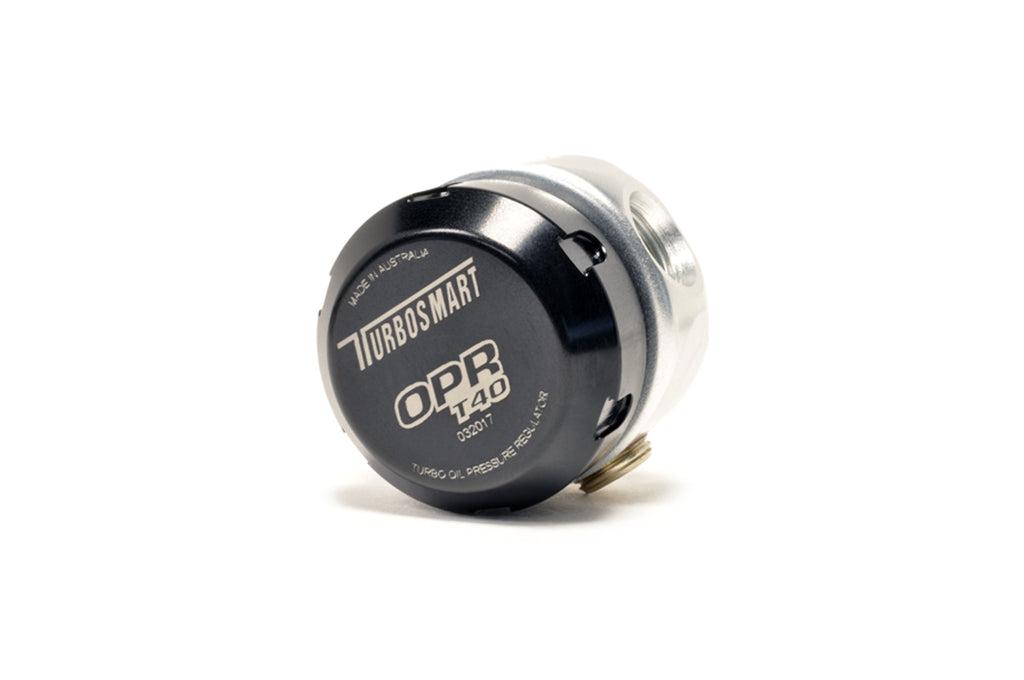

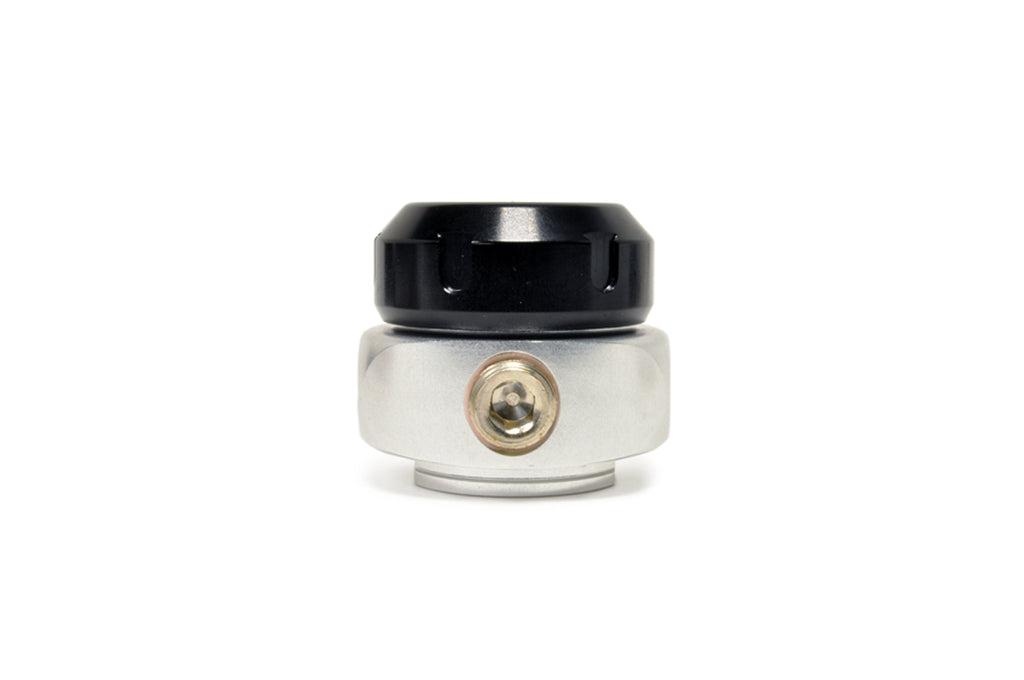

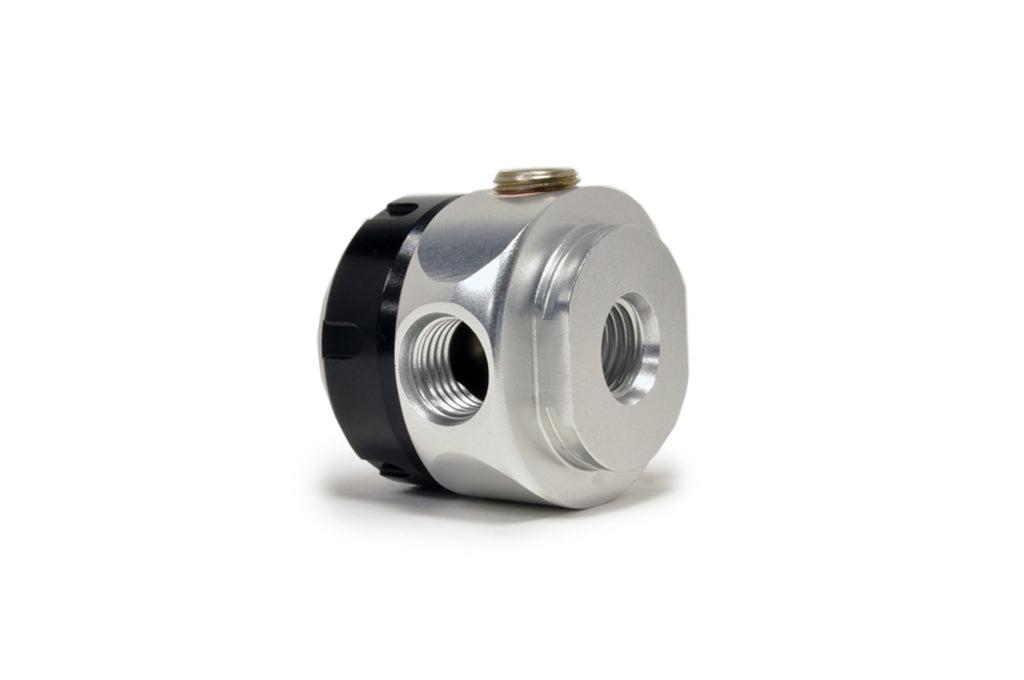

Turbosmart OPR T40 Black Oil Pressure Regulator (TS-0801-1002)

The Turbosmart OPR T40 is an oil pressure regulator designed for your turbo. Includes the black regulator, mounting bracket & circlip and 1/8 NPT gauge port blanking screw.

Many Turbos are built around a bearing and oil pressure profile much lower than is seen by modern and high performance, engines and feeding these turbos the appropriate amount of oil pressure has always been a challenge. Traditional methods to limit oil pressure have been with a restrictor, aimed at reducing pressure, however this also reduces flow.

Turbosmart’s OPR T40 is a true regulator in that target oil pressure 40psi can be achieved without compromising oil flow. This takes the guess work out of restrictor or feed and drain hose selection and ensures the oil is going to the turbocharger, never exceeds the manufacturers tolerances. This will provide you rock solid oil supply pressure, within the manufactures tolerances.

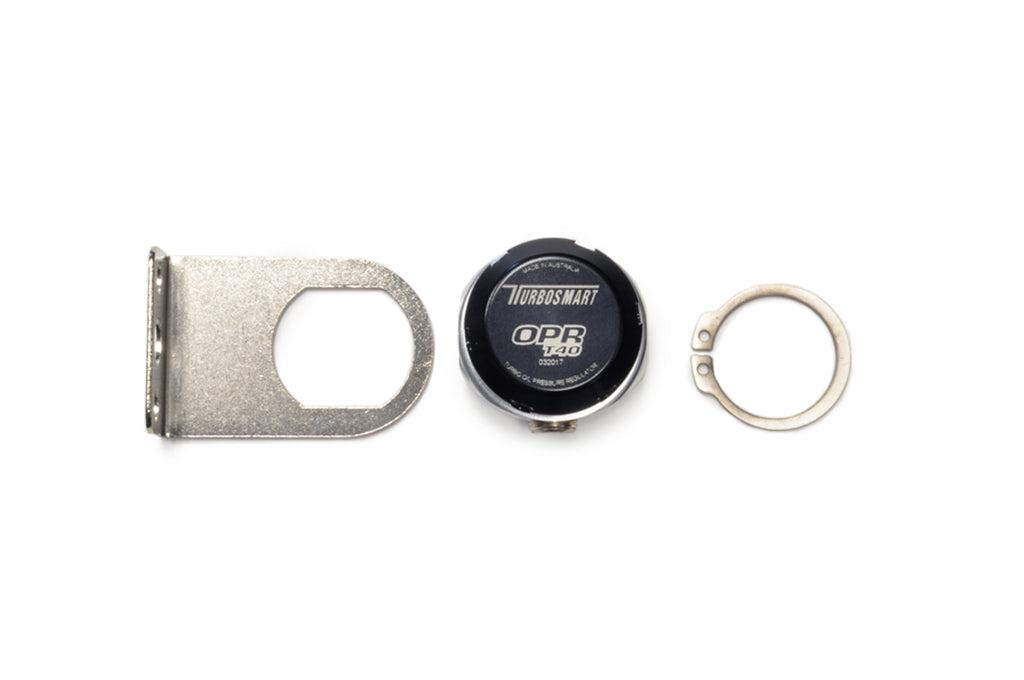

Includes:
• Turbosmart OPRT40 Oil Pressure Regulator

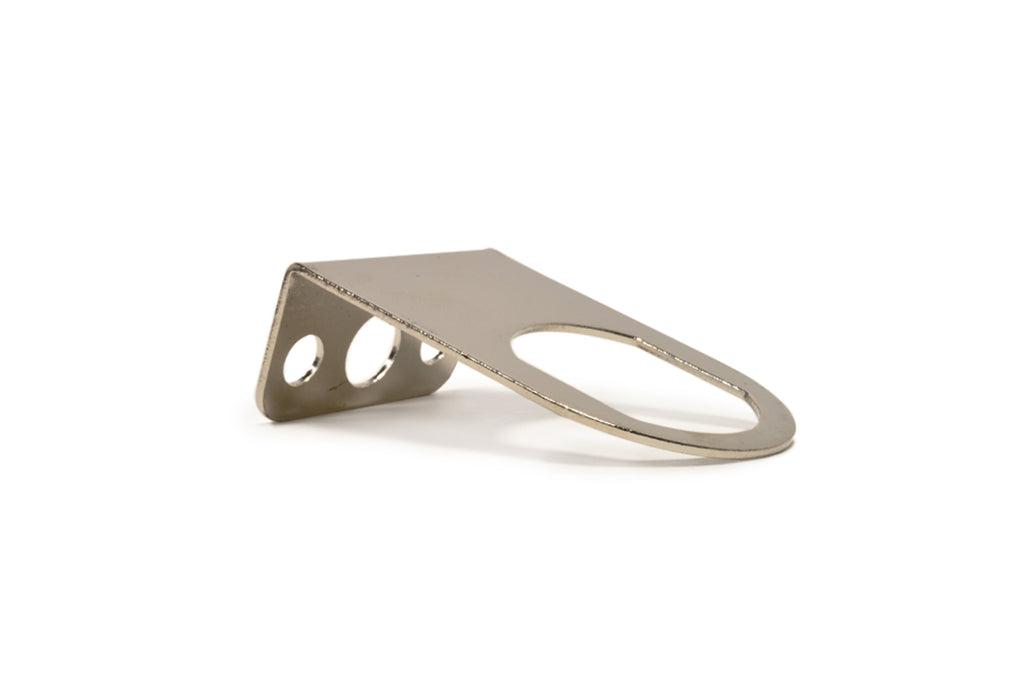

• Mounting Bracket & Circlip
• 1/8 NPT Gauge Port Blanking Screw
• Turbosmart Decal
