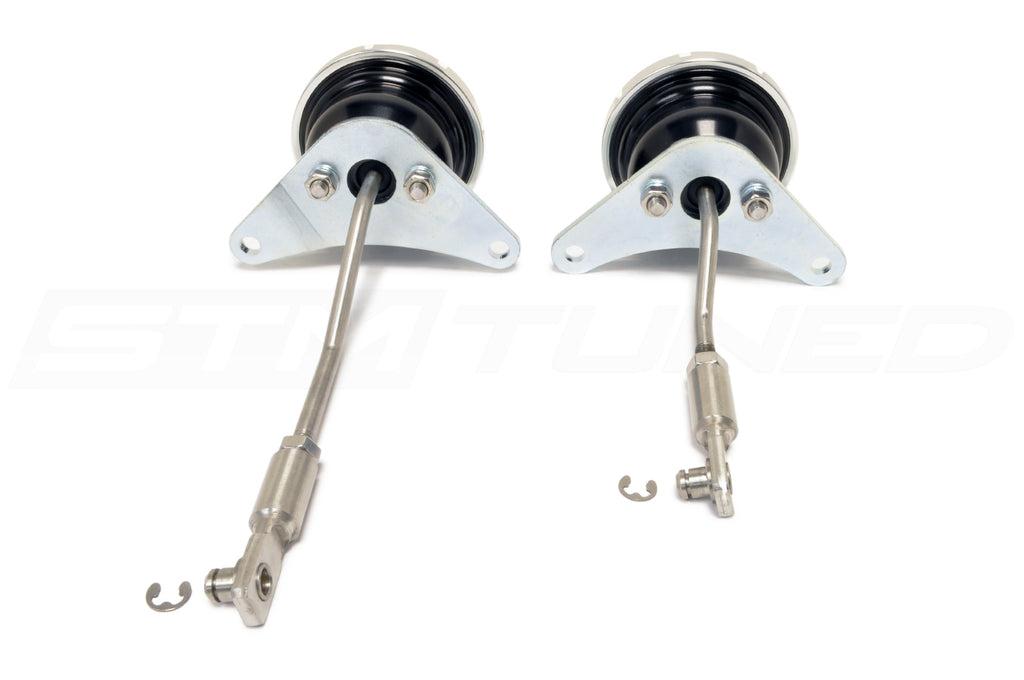

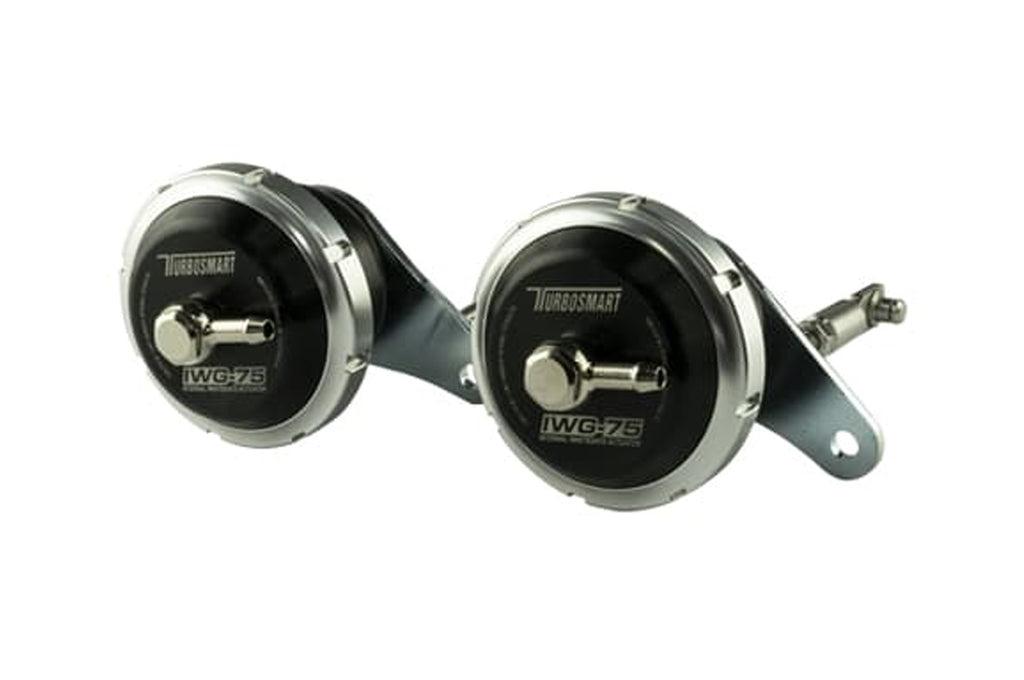

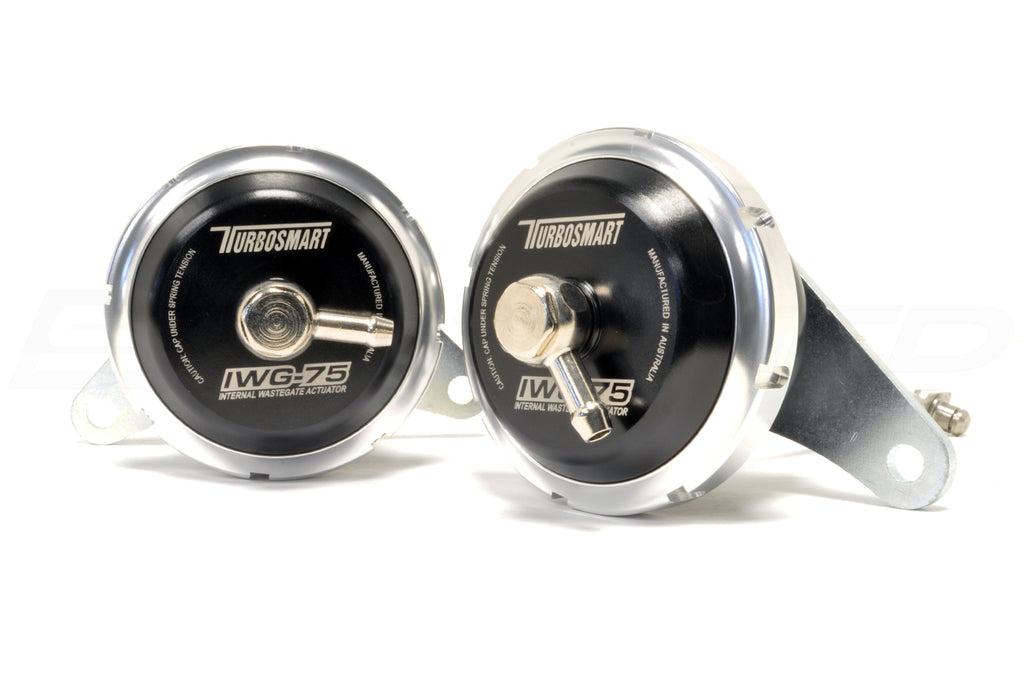

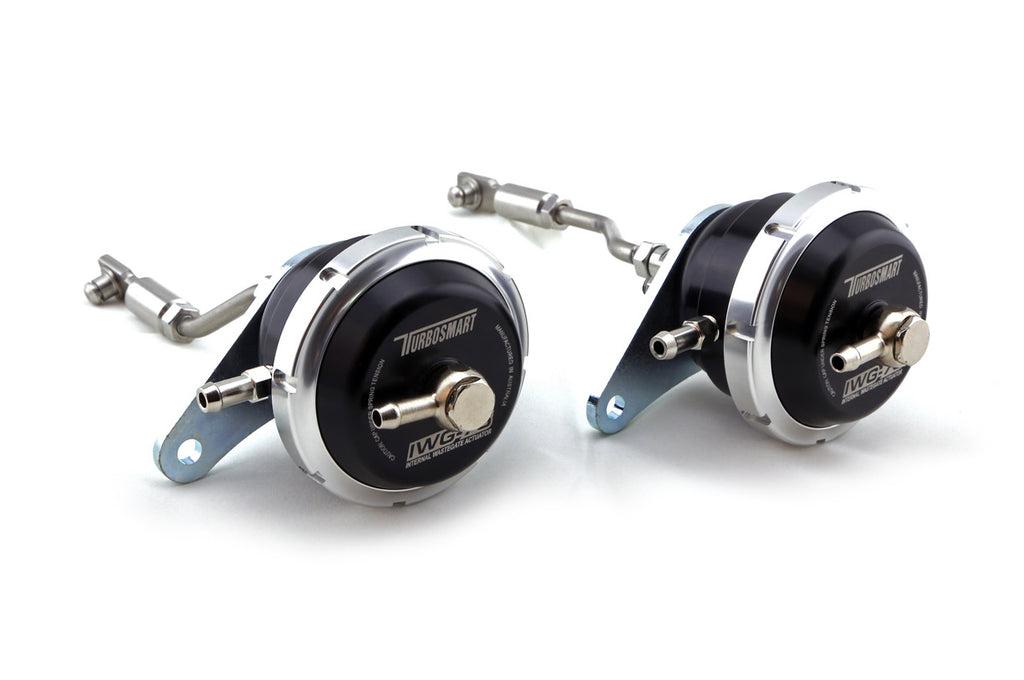

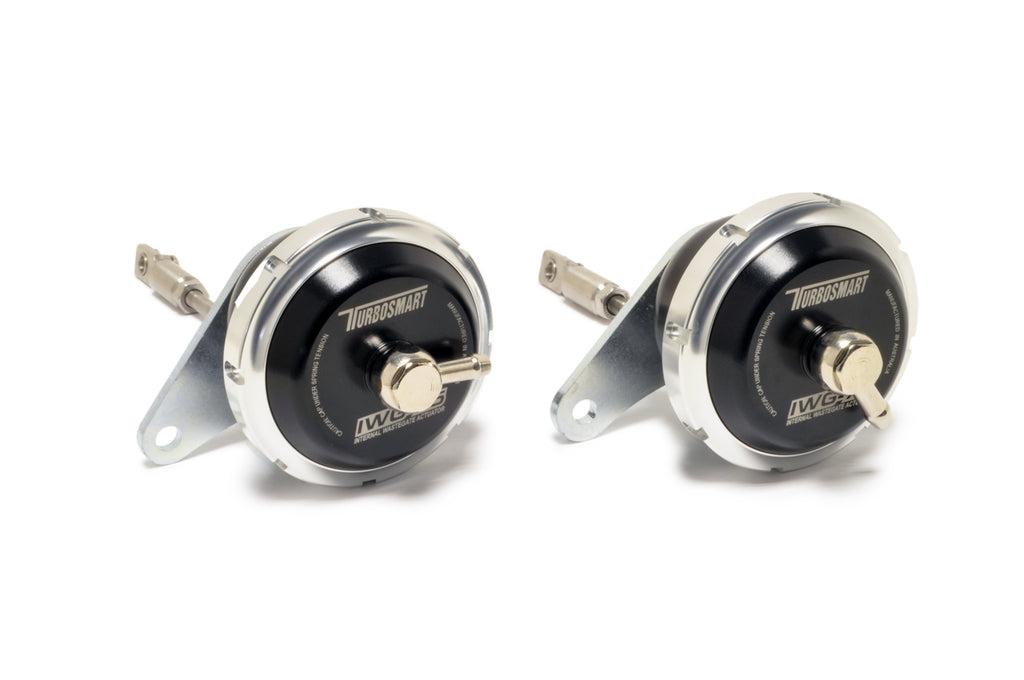

Turbosmart IWG75 R35 GTR Wastegate Actuators

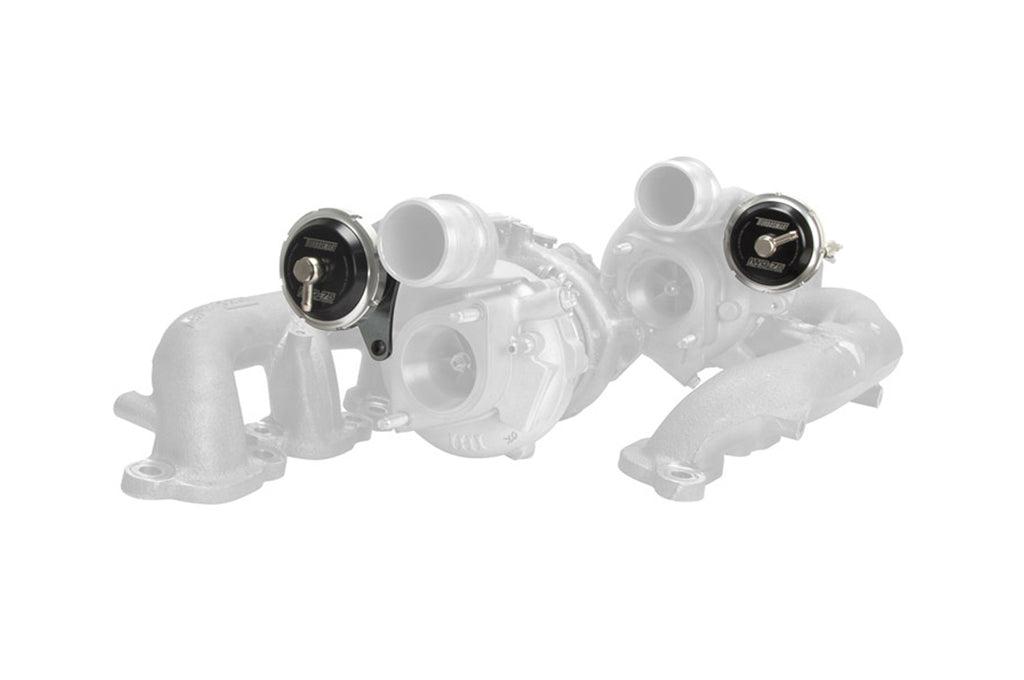

Turbosmart IWG75 internal wastegate actuators for R35 GTR are available for 7 or 24 psi and available with single or dual ports. Direct bolt-on to the factory turbos and easy to install requiring no special tools or fabrication. Purchase includes two wastegates.

Vehicle Fitment:
202009+ Nissan GTR R35
(VR38DETT Engine)

Includes:
(2) Wastegates)

Instructions:
•

More Info:
The Turbosmart IWG75 range of internal wastegate actuators takes the motorsport proven technology from their external wastegates and applies it to the internal wastegate actuator.

The large diaphragm working area ensures you are in control of your boost curve. The increased working surface area ensures greater mechanical advantage and provides the broadest possible boost curve with improved, more sensitive control.

Turbosmart's unique locking collar design makes for quick spring changes and there are base spring options from 3psi to 26psi in either single, or twin port configurations. The rods & clevis hardware is stainless steel for extended service life for corrosion resistance and the actuators are fully serviceable.

Features:
• Proprietary Silicon Nomex Diaphragm
• High Grade Billet Aluminum Construction
• Stainless Steel Roads and Clevis Options
• Turbosmart Unique Locking Collar Design
• 3AN fitting pre-fitted with Swivel bolt & 6mm hose barb
• 1/16' NPT Lower Housing Reference fittings (Twin Port Only)
