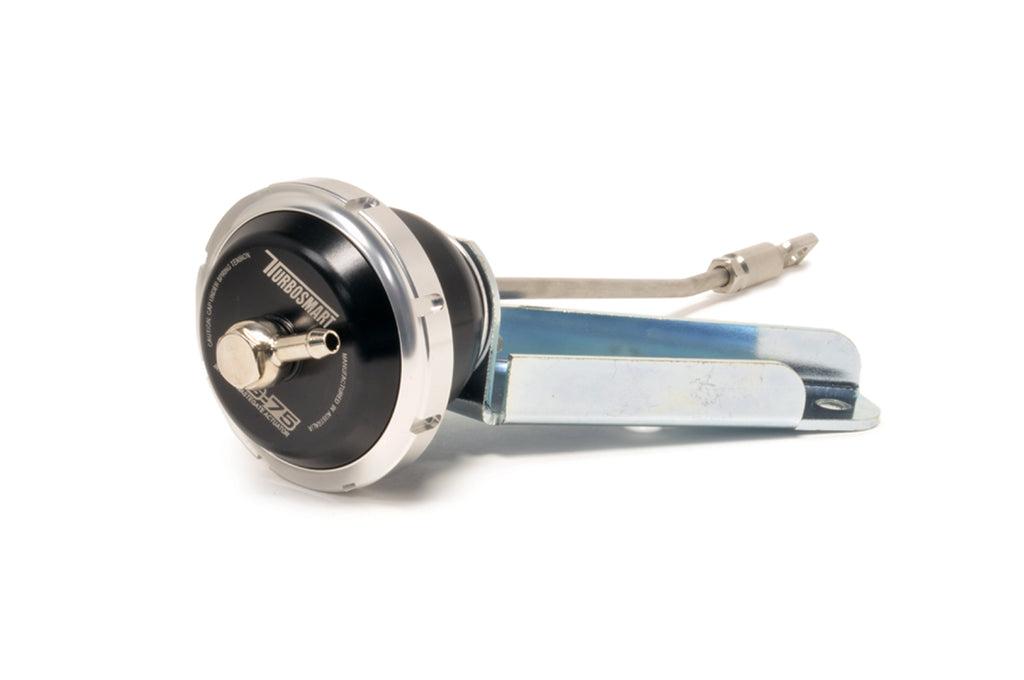

Turbosmart IWG75 Evo 6-8 Wastegate Actuator

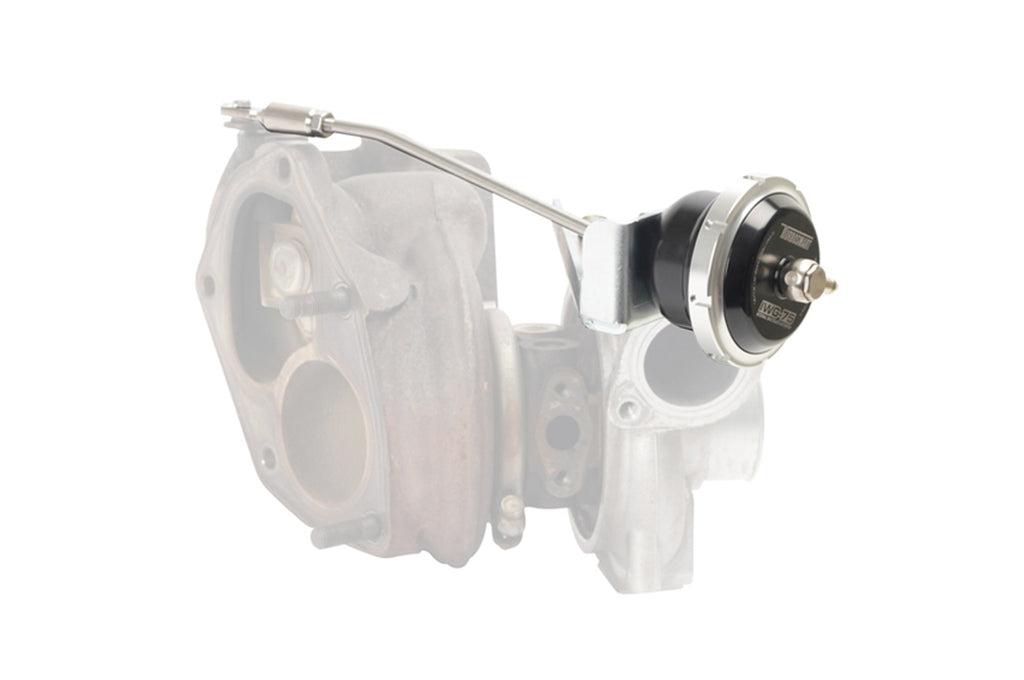

Turbosmart IWG75 internal wastegate actuator for the Evo 6/7/8 turbo. Direct bolt-on to the factory 6-8 turbos and easy to install requiring no special tools or fabrication. Please note, the is different.

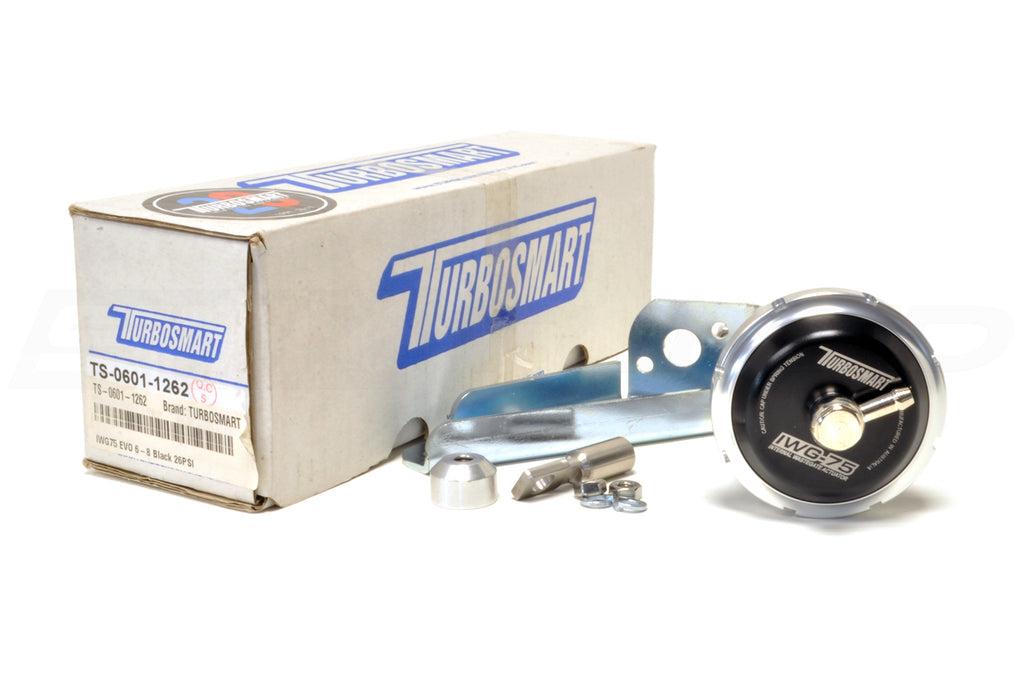

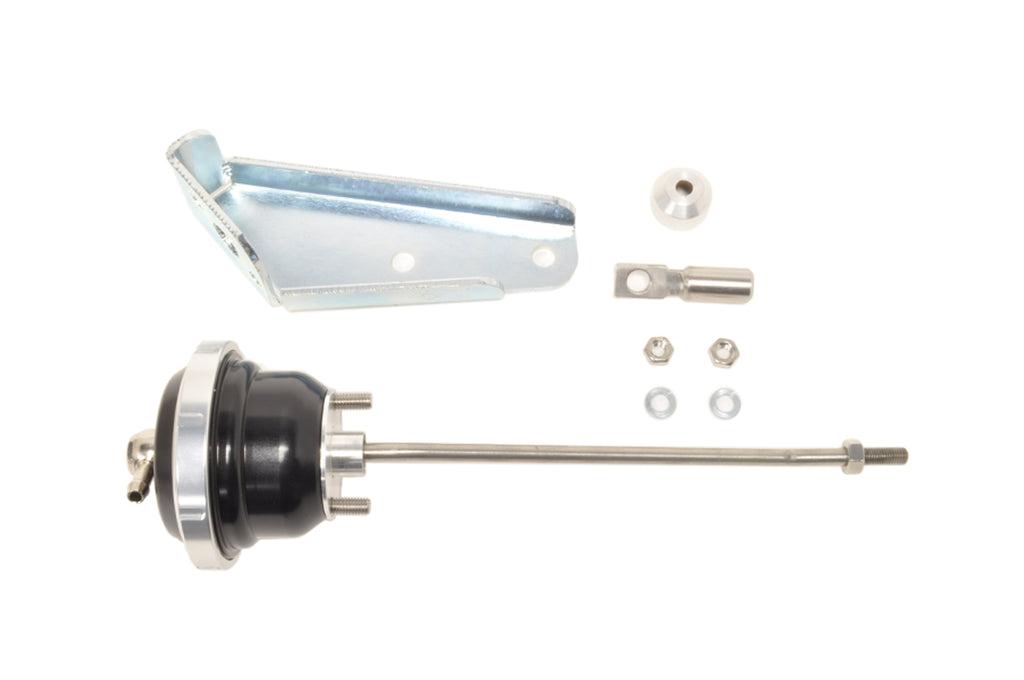

Includes:
• IWG75 Wastegate Actuator Unit
• IWG75 Wastegate Actuator
• IWG75 Fasteners & Swivel Hose Barb
• Springs Pre-Fitted as per Description

Instructions:
•

More Info:
The Turbosmart IWG75 range of internal wastegate actuators takes the motorsport proven technology from their external wastegates and applies it to the internal wastegate actuator.

The large diaphragm working area ensures you are in control of your boost curve. The increased working surface area ensures greater mechanical advantage and provides the broadest possible boost curve with improved, more sensitive control.

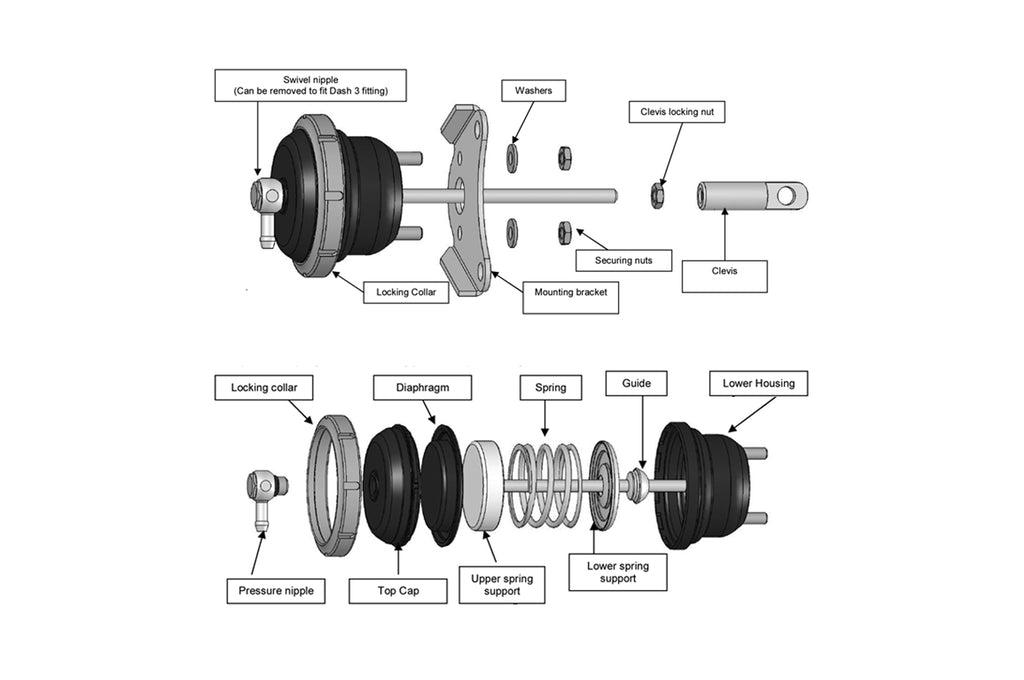

Turbosmart's unique locking collar design makes for quick spring changes and there are base spring options from 3psi to 26psi in either single, or twin port configurations. The rods & clevis hardware is stainless steel for extended service life for corrosion resistance and the actuators are fully serviceable.

Features:
• Proprietary Silicon Nomex Diaphragm
• High Grade Billet Aluminum Construction
• Stainless Steel Roads and Clevis Options
• Turbosmart Unique Locking Collar Design
• 3AN fitting pre-fitted with Swivel bolt & 6mm hose barb
