Torque Solution Turbo Inlet Hose Recirculated for WRX/STi 76mm Inlet Turbo (TS-SU-565-R)

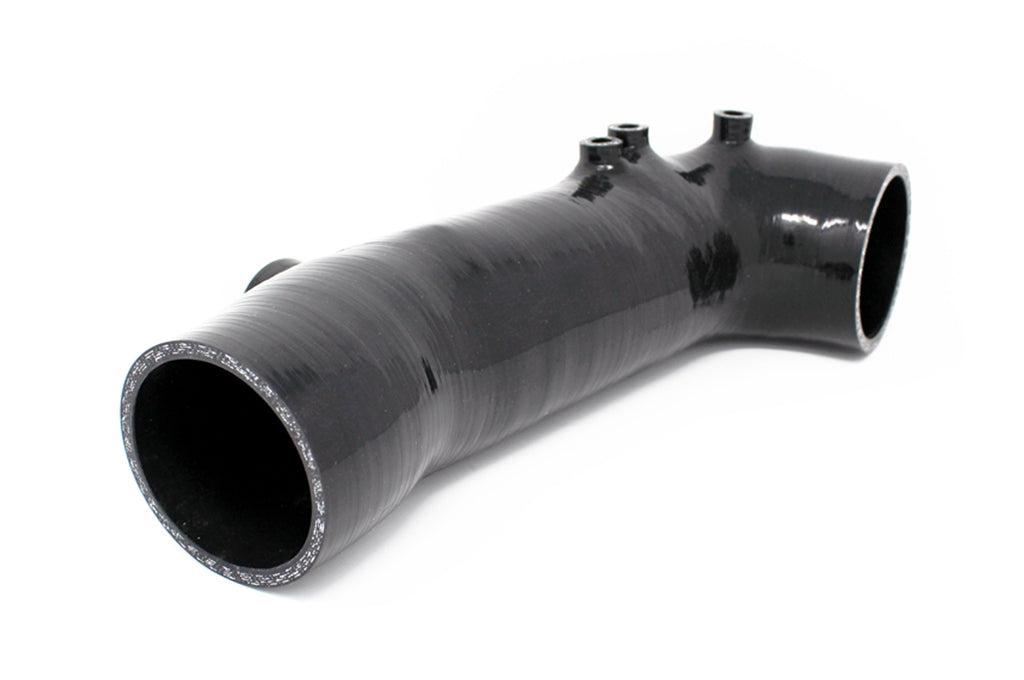

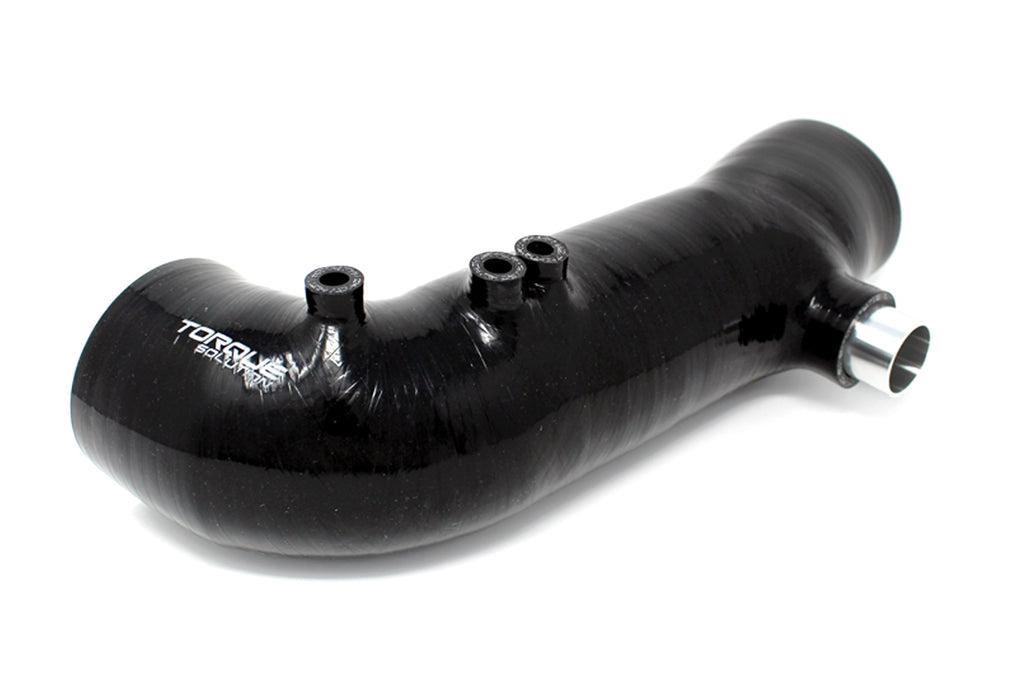

This Torque Solution turbo inlet hose fits 02-07 WRX and 04+ STi with a 3' (76mm) inlet turbo. The silicone inlet hose is much larger in size than factory and smooths the air entering the turbo compared to the restrictive OEM corrugated inlet hose. Made from 4-ply high grade silicone and wire reinforced to prevent collapsing under high pressure. Includes 2 black anodized billet aluminum joiners to connect to either 2.75' or a 3' intake.

Vehicle Fitment:
2002-2007 Subaru WRX
2004-2021 Subaru STi
• Also Available

Features:
• Smooths Airflow Entering Turbo
• Increases Air Flow
• Eliminates Failure Prone Corrugated Rubber Hose
• 4 Ply Silicone with Wire Reinforcement
• Includes Silicone Friendly Stainless Steel Hose Clamps
• Direct Fitment for Aftermarket 3' (76mm) Inlet Turbo
• Recirculated BOV Inlet
• Limited Lifetime Warranty

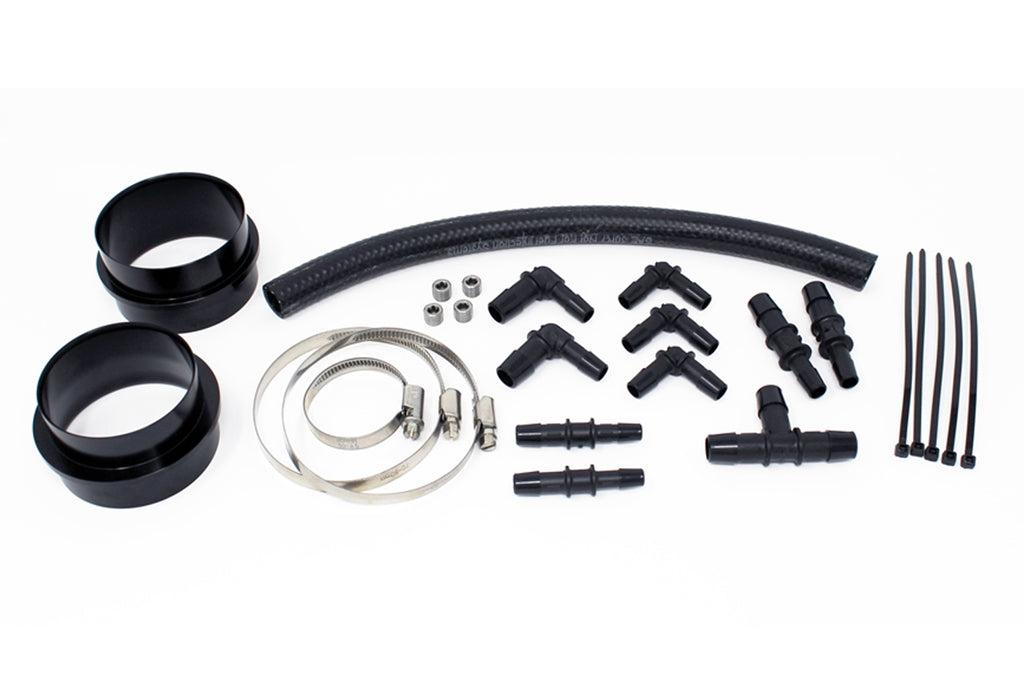

Includes:
(1) 3' Recirc Black Silicone Turbo Inlet Hose
(1) 3' Billet Aluminum Coupler (for 3' Intakes)
(1) 3' to 2.75' Billet Aluminum Reducer Coupler (for 2.75' Intakes)
(1) 1.25' Aluminum BOV Recirc Adapter
(2) 70-90mm Silicone Safe Worm Gear Clamp
(1) 30-45mm Silicone Safe Worm Gear Clamp
(3) 3/8' 90 Degree Nylon Elbows
(2) 1/2' to 3/8' 90 Degree Nylon Reducer Elbows
(2) 1/2' to 3/8' Straight Nylon Reducer
(2) 5/16' to 3/8' Straight Nylon Reducer
(1) 1/2' Nylon T Fitting
(4) 1/8 NPT Stainless Plugs (for DIY TGV Conversion)
(5) Heavy Duty 10 Inch Zip Ties
(13') 1/2' Fuel/PCV Hose

Install Notes:
It is recommended to use either billet TGV conversions or the supplied 1/8' NPT plugs to convert the factory TGV for clearance.

Important Note:
The Torque Solution inlet bypasses the PCV Diagnosis Port. You will need to perform a simple bypass.

1. Locate PCV Diagnosis connector (grey or white depending on year), which located on the block next to throttle body.
2. You will need to use a pair of needle nose pliers to remove the jumper pin inside the PCV Diagnosis connector. This pin should pull out easily only using slight pressure. Do not discard the jumper pin removed from the connector.
3. Place the jumper pin into the female harness plug that was connected to PCV diagnosis connector. Use electrical tape to secure in place.
