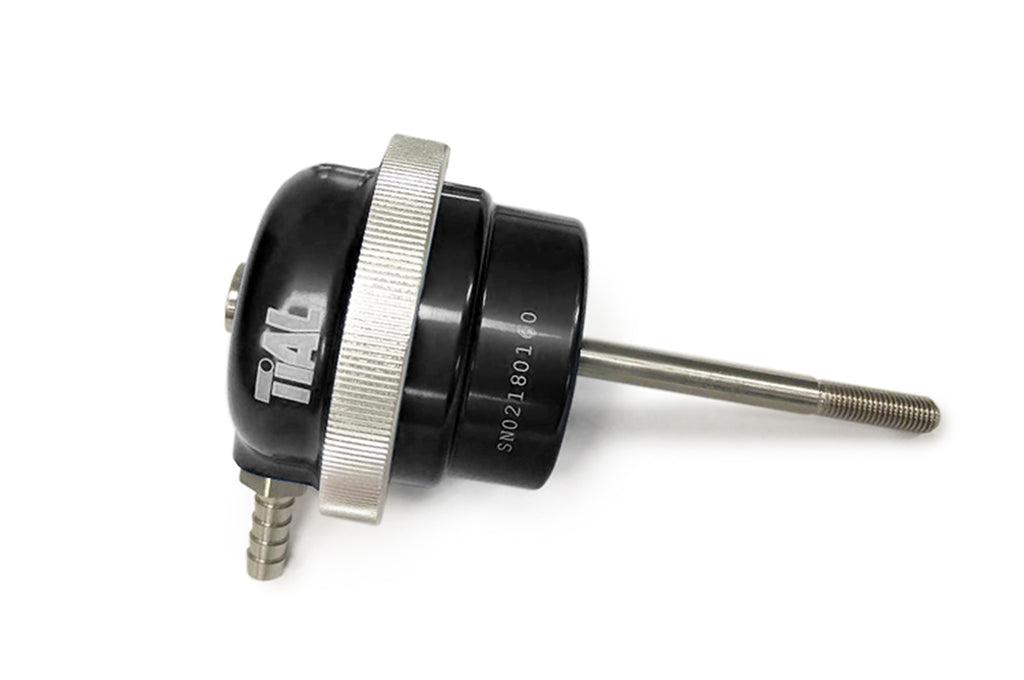

TiAL Sport MVI 2.5 Internal Wastegate Actuator

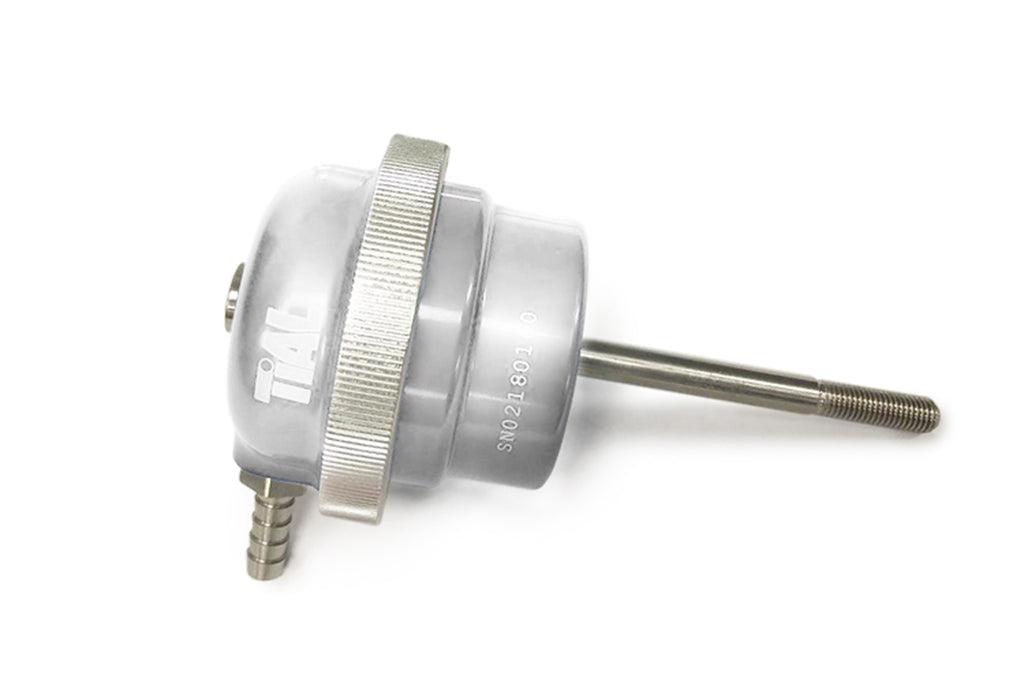

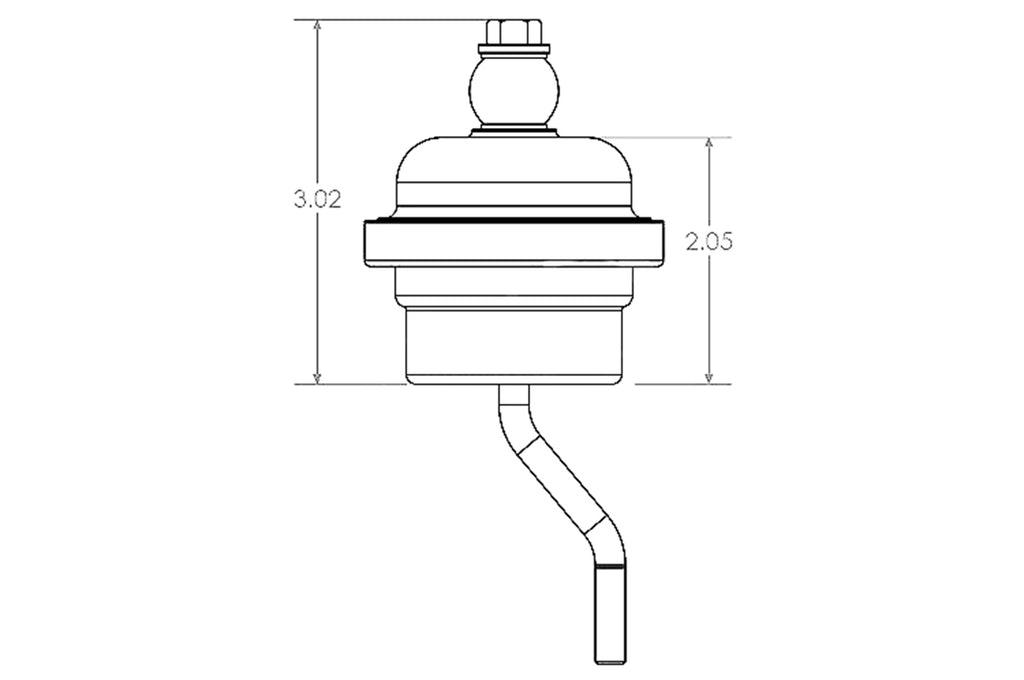

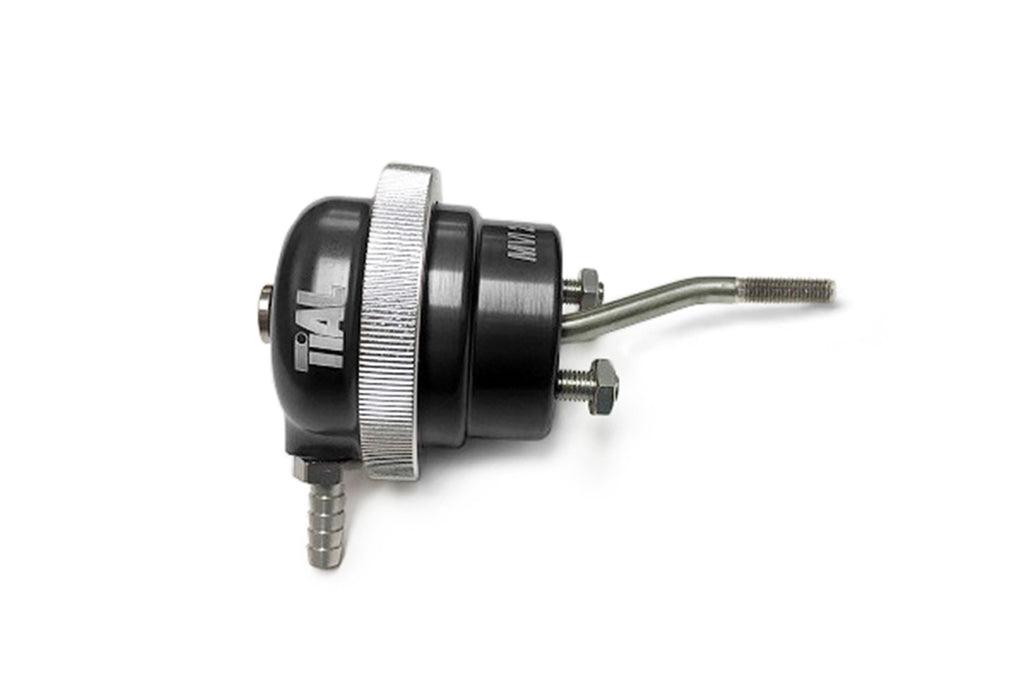

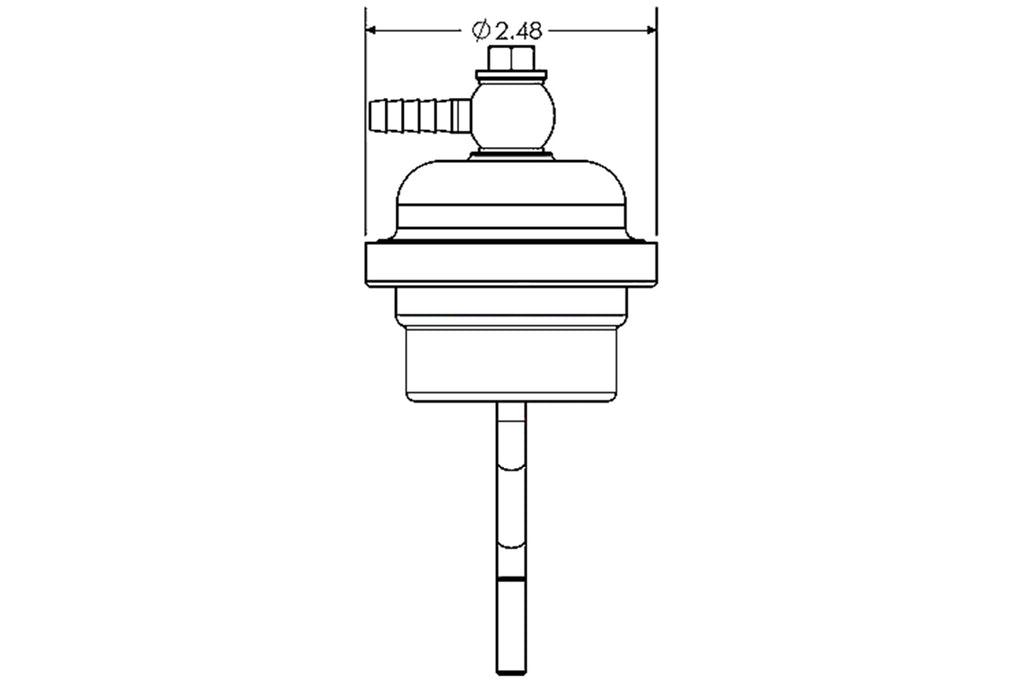

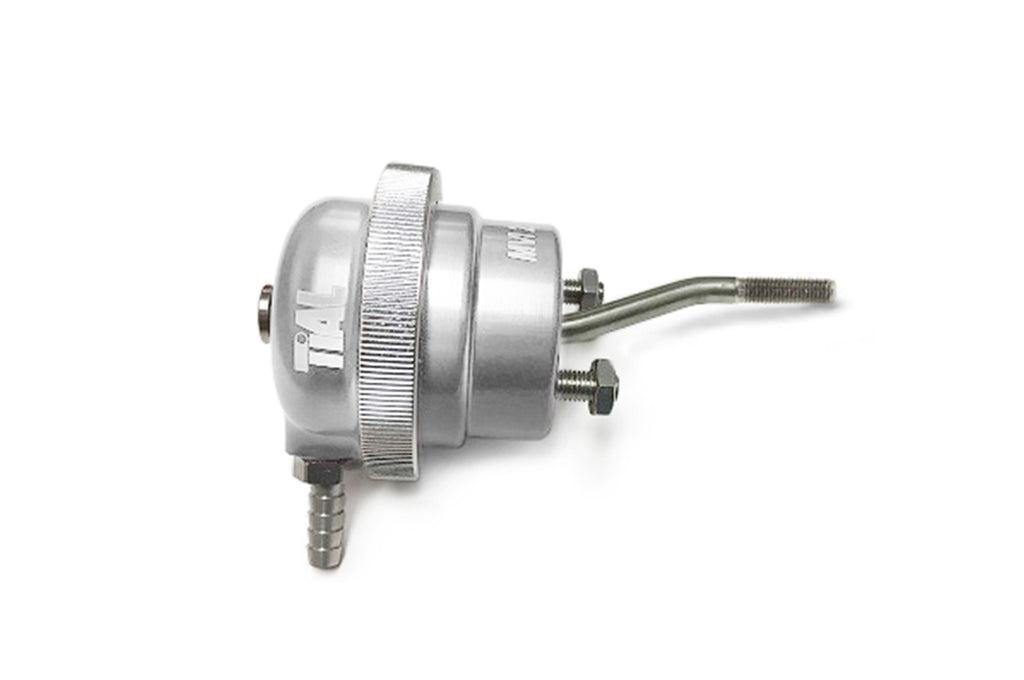

The genuine TiAL Sport MVI 2.5 internal wastegate actuator has a compact design standing only 2.2' in height without fittings and actuator rod. Available with a straight rod or bent rod and available in silver or black only.

Shipping Times: 1-2 Weeks
We try to keep the most popular kits in stock, but if you need something quick and want to confirm, just give us a call directly!

Specs & Features:
• Compact actuator body with multiple spring options available.
• High temperature silicone Nomex reinforced actuator diaphragm.
• 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature and resists 'relaxing' up to 900F (483C).
• Internal components anodized for corrosion resistance.
• Ultra compact design fits in very tight spaces.

MVI Wastegate:

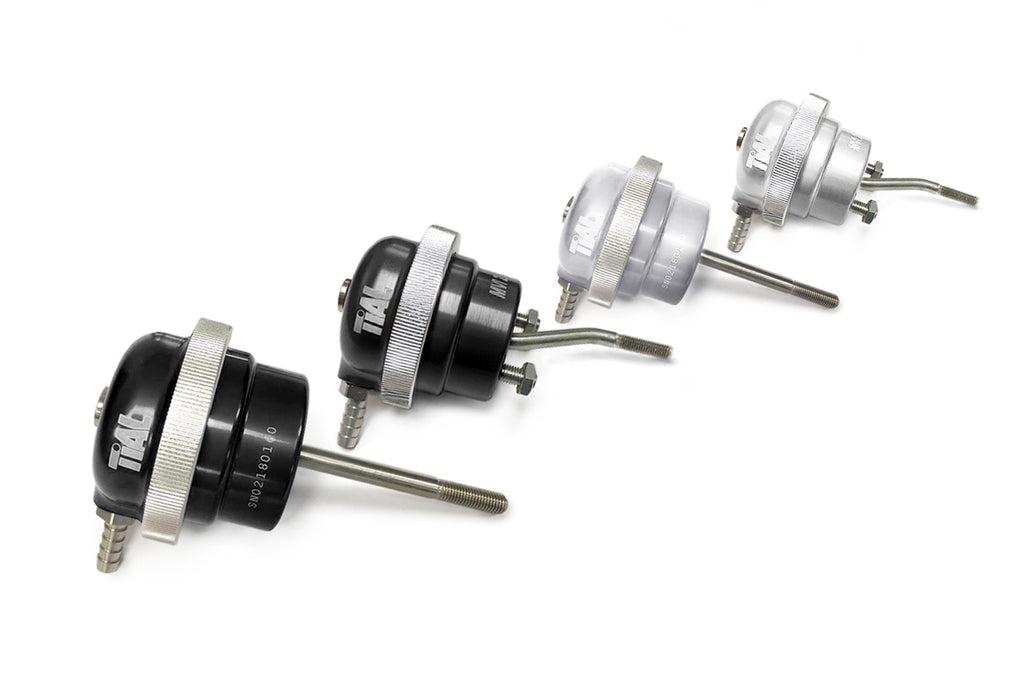

• Black or Silver
• Spring Pressures: .13 BAR to 1.5 BAR
• Thread Top Air Ports: M8 x 1.0
• Straight or Bent Rod

Includes:
MVI Assembly
(1) M8x1 Straight Banjo Air Fitting
(1) M8x1 Air Port Plug with Aluminum Sealing Washer
(1) Actuator Rod

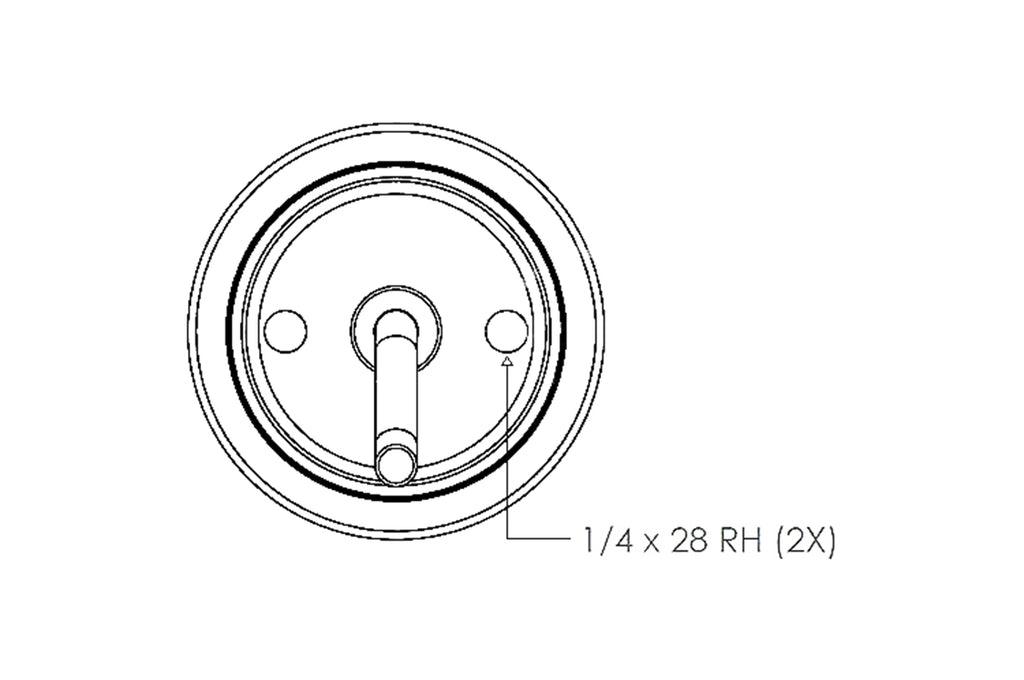

(1) 1/4 x 28 Bolts for mating to actuator bracket
