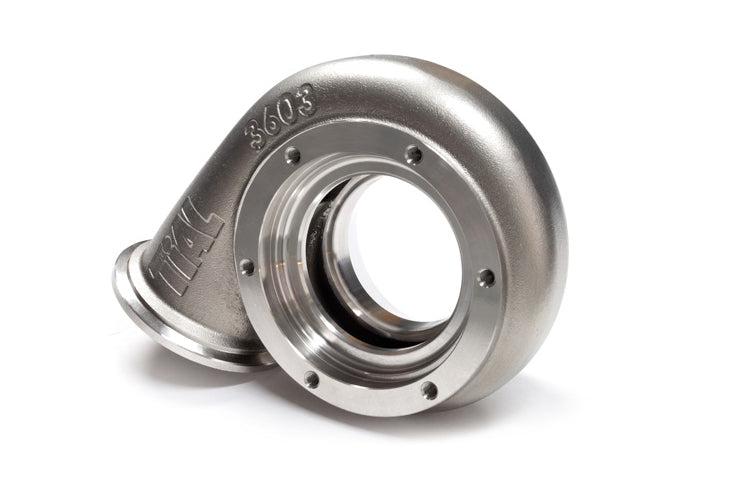

TiAL Sport Stainless Steel GT30 Turbine Housing

Vehicle Fitment:
Universal Product

Description:
Lightweight stainless steel turbine housings for the GT and GTX 30 series turbochargers. Compatible with the 60mm 84 trim turbine wheel.

These housings will not work with the 700177-23 GT3071R CHRA, the heat shield is different, you must use the 700177-22 CHRA.

Specs & Features:
• Typically lighter weight than a corresponding iron housing of the same A/R
• Investment cast stainless steel for a beautiful, smooth interior and exterior
• Vband inlet and outlet eliminates gaskets and bolts, no leaks and no broken bolts
• Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
• Better heat retention than cast iron
• Inconel bolts provided for vibration and stretching resistance in extreme applications
• Locking tabs included for high vibration applications
• Pivoting of the turbo 360° possible
• These housings will not work with the 700177-23 GT3071R CHRA, the heat shield is different, you must use the 700177-22 CHRA

GT30 Housing:
• Pipe Size for Inlet Flange: 2.125' OD
• Pipe Size for Outlet Flange: 3.00' OD
• Housing Weight: 5.8lbs (Largest A/R)
• Turbine Wheel: 60mm (84 Trim)

Includes:
(1) Turbine Housing
(3) Moon Tabs
(6) Inconel Bolts
(3) Locking Tabs

Please Note:
Flanges and clamps are NOT included. Check the table below for compatible part numbers.
