TiAL Sport F46 46mm Wastegate

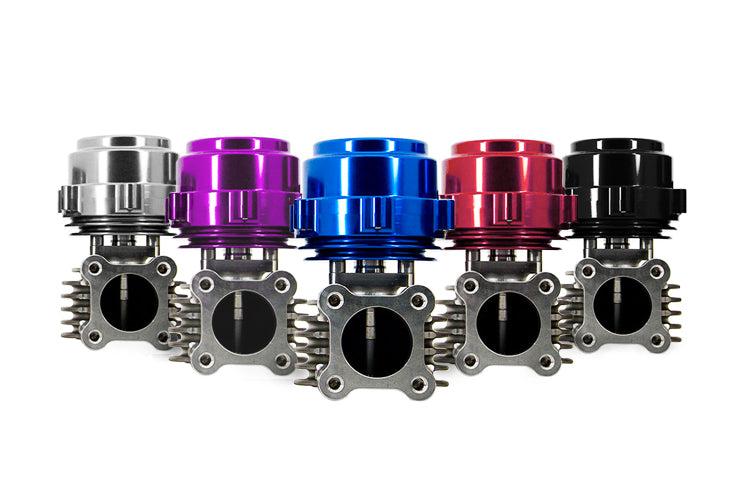

This genuine TiAL Sport F36 wastagate was originally developed as a bolt in replacement unit for the Porsche 962 racecar. Available in all 5 TiAL colors silver, red, blue, purple and black.

Vehicle Fitment:
Universal Product
(Designed for the Porsche 962)

Shipping Times: 1-2 Weeks
We try to keep the most popular kits in stock, but if you need something quick and want to confirm, just give us a call directly!

Specs & Features:
• High temp NiCrFe based alloy valve and 347SS valve housing offer longer product life compared to competing designs
• High temperature silicone Nomex reinforced actuator diaphragm
• 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature and resists 'relaxing' up to 900F (483C)
• Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing
• All Stainless Steel hardware
• Mating weld flanges are 304L
• Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black)
• Race proven at Daytona 24hour on a Porsche GT2 Twin Turbo.

F46 Wastegate:
• Flange Materials: 304L Stainless
• Pipe Size for Inlet Flange: 1.625' OD
• Pipe Size for Outlet Flange: 1.625' OD
• Thread Air Ports: M10 x 1.0

Racing Valve System:
The F46 wear coating is resistant to the corrosive effects of lead oxide which is present when running leaded racing fuel.

Includes:
(1) F46 Assembly
(1) F46 Valve Seat
(2) TiAL Air Fittings
(8) SS Bolts
(8) SS Washers
(2) Gaskets
