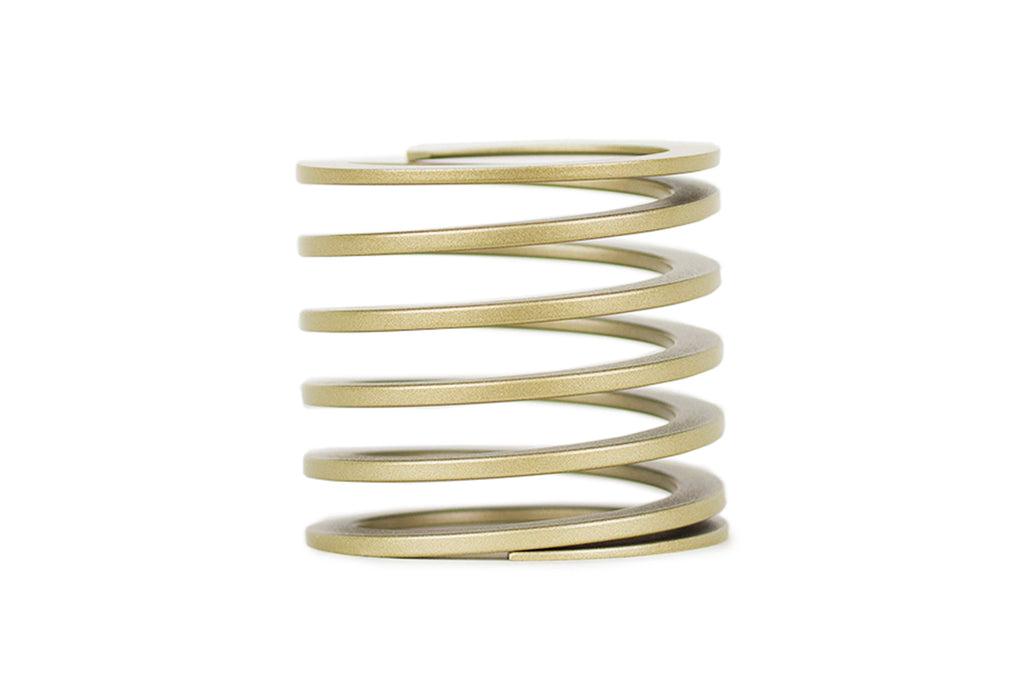

Swift Coilover Helper Spring
114.16€
Sold By: Baltic Turbo Motors
SKU: SWI-H60-135-0008
Categories: Performance Parts
Vehicle Fitment:
Universal Application
Please confirm all specs before purchase.
Purchase Includes:
(1) Spring

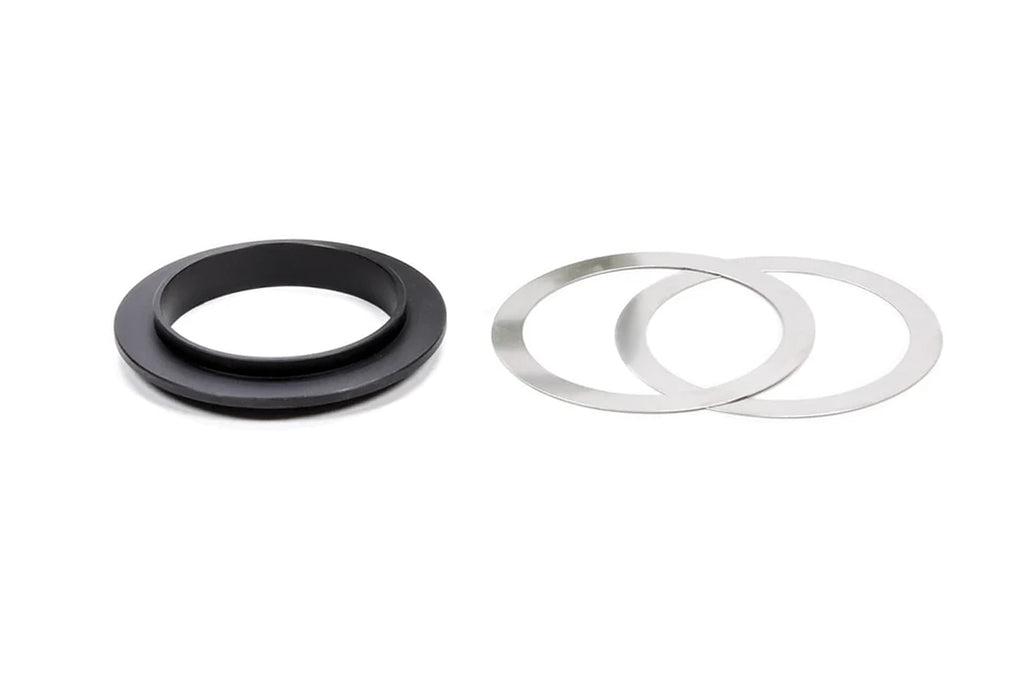

(1) Adapter
(2) Shims
* 70mm does not include spring adapters
Shipping Times:
Typically ships from Swift in 5-10 business days.
More Info:
Unlike the Swift assist springs, these helper springs are specifically designed to have a minimal effect on the spring rate of the main coilover spring. Helper springs allow the spring to stay mounted on the coilover perch when the shock is under negative or zero load, also known as droop travel. It is ideal to run helper springs on setups where you cannot preload the main spring due to height issues or when experiencing springs coming loose from the coilover perch.
Due to continued engineering advances, product specification may change without notice.
60MM (2.36') | ||||||
| Part # | Spring Rate | Free Length | Stroke | FCH | CW | |
| kgf/mm | lbs/inch | inch | inch | inch | lbs | |
| H60-135-0008 | 0.1 | 4 | 5.3 | 4.6 | 0.7 | 22 |
| H60-070-008 | 0.8 | 45 | 2.8 | 1.7 | 1.1 | 88 |
| H60-060-015 | 1.5 | 84 | 2.3 | 1.6 | 0.8 | 154 |
| H60-060-030 | 3.0 | 168 | 2.4 | 1.5 | 0.9 | 265 |
65MM (2.56') | ||||||
| Part # | Spring Rate | Free Length | Stroke | FCH | CW | |
| kgf/mm | lbs/inch | inch | inch | inch | lbs | |
| H65-135-0008 | 0.1 | 4 | 5.3 | 4.6 | 0.7 | 22 |
| H65-070-008 | 0.8 | 45 | 2.8 | 1.8 | 0.9 | 95 |
| H65-060-015 | 1.5 | 84 | 2.4 | 1.5 | 0.9 | 154 |
| H65-060-030 | 3.0 | 168 | 2.4 | 1.4 | 0.9 | 265 |
70MM (2.76') | ||||||
| Part # | Spring Rate | Free Length | Stroke | FCH | CW | |
| kgf/mm | lbs/inch | inch | inch | inch | lbs | |
| H70-070-008 | 0.8 | 45 | 2.8 | 1.9 | 0.9 | 99 |
