Supertech Beehive Valve Spring Kit for 4G63 Evo/DSM
443.98€
Sold By: Baltic Turbo Motors

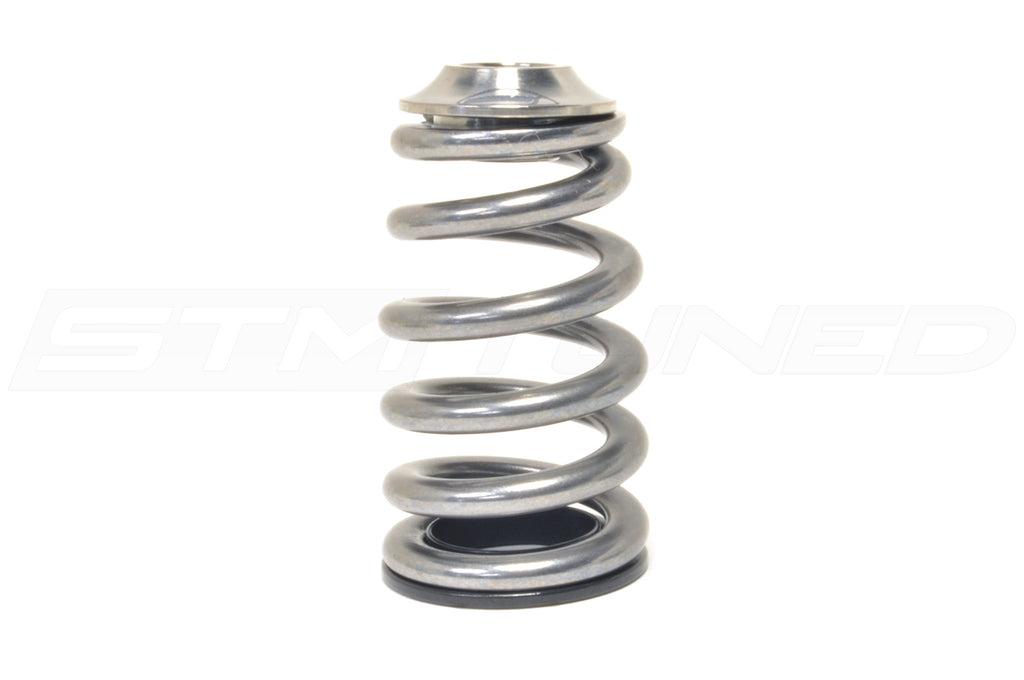

Supertech beehive valve spring kits for 4G63 Evo, DSM and GVR4. Includes 16 beehive springs, 16 tita
SKU: SUP-SPRK-M1007BE-1
Categories: Performance Parts
Share:
Supertech beehive valve spring kits for 4G63 Evo, DSM and GVR4. Includes 16 beehive springs, 16 titanium retainers and valve seats. There are two options for the pressure seat, please do all your research and consult your engine builder if necessary!
Vehicle Fitment:
1992-2006 Evolution I-IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1992 Galant VR-4

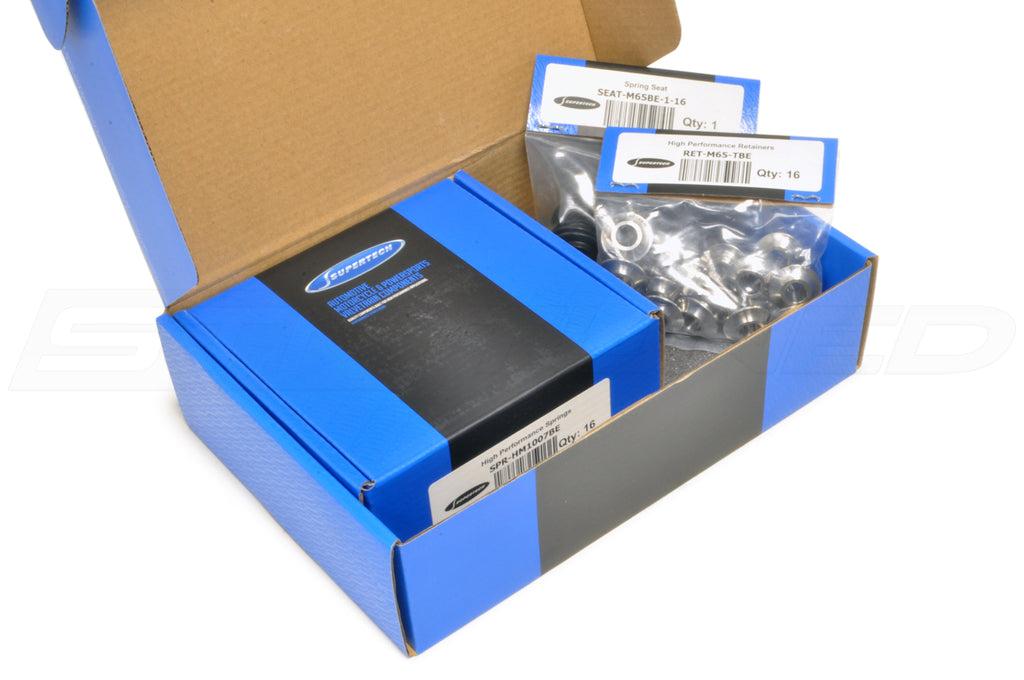

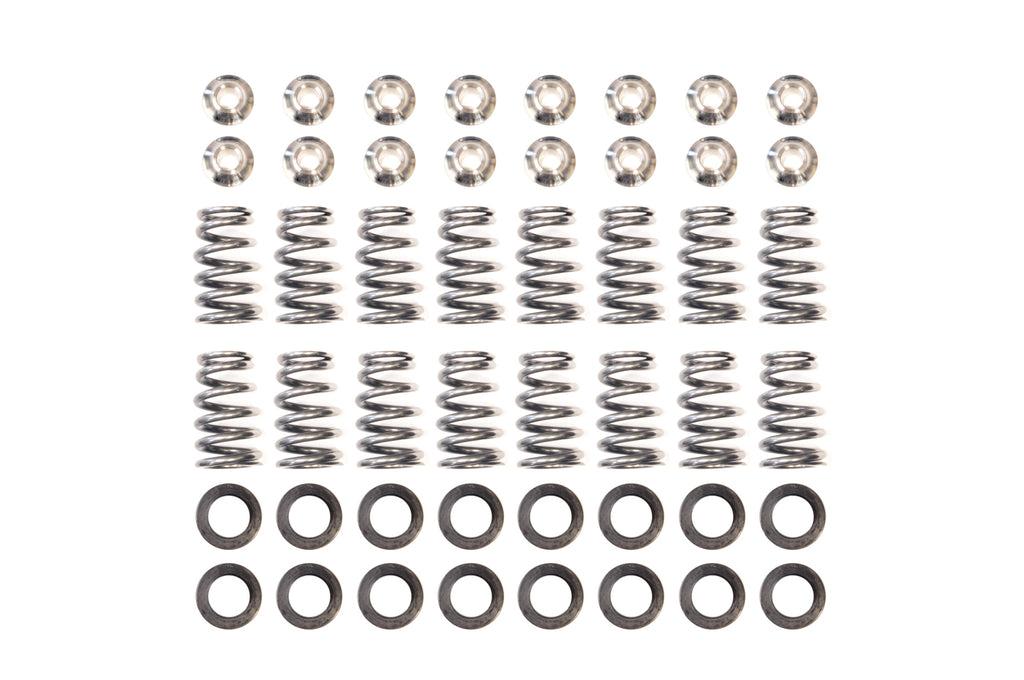

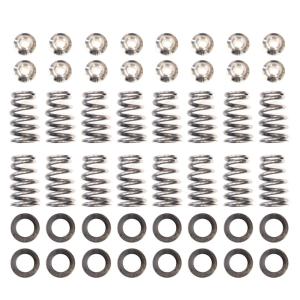

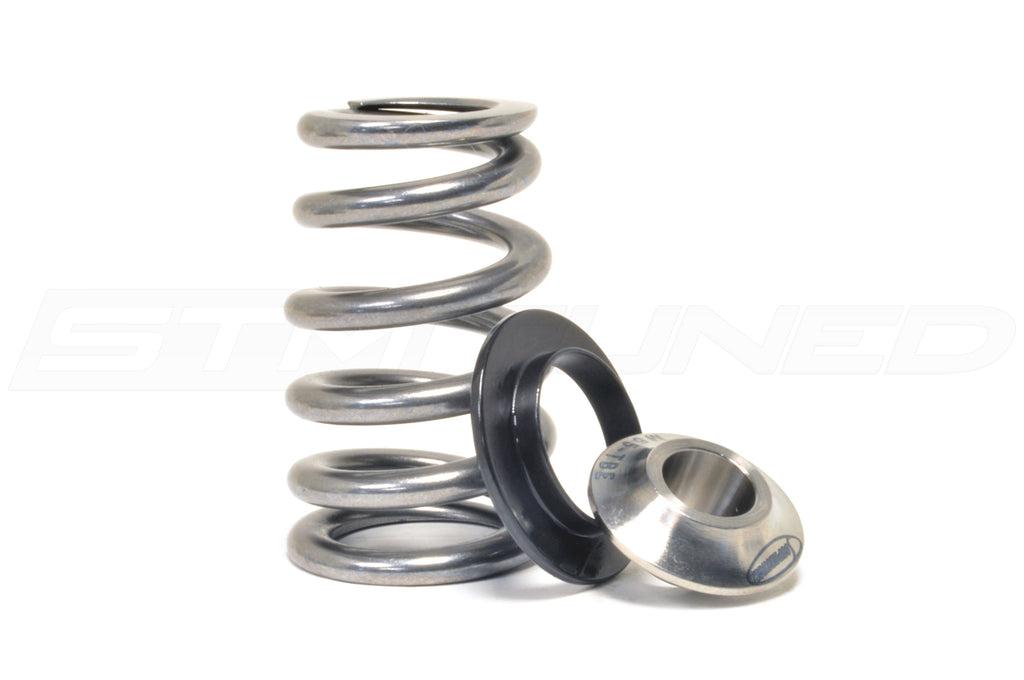

Purchase Includes:
(16) Beehive Valve Springs
(16) Titanium Retainers

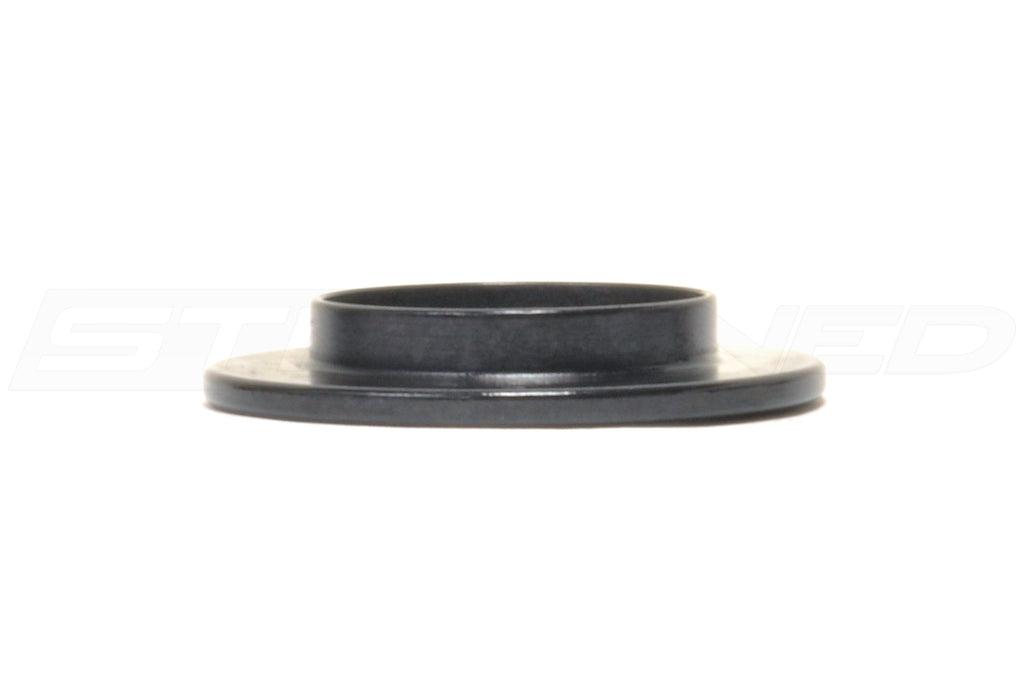

(16) Valve Seats
All Supertech valve springs are made with premium Superclean Chrome Silicon Vanadium Steel alloy for higher performance and durability at high RPM. Using high quality steel alloy also provides the added benefit of better structural memory.

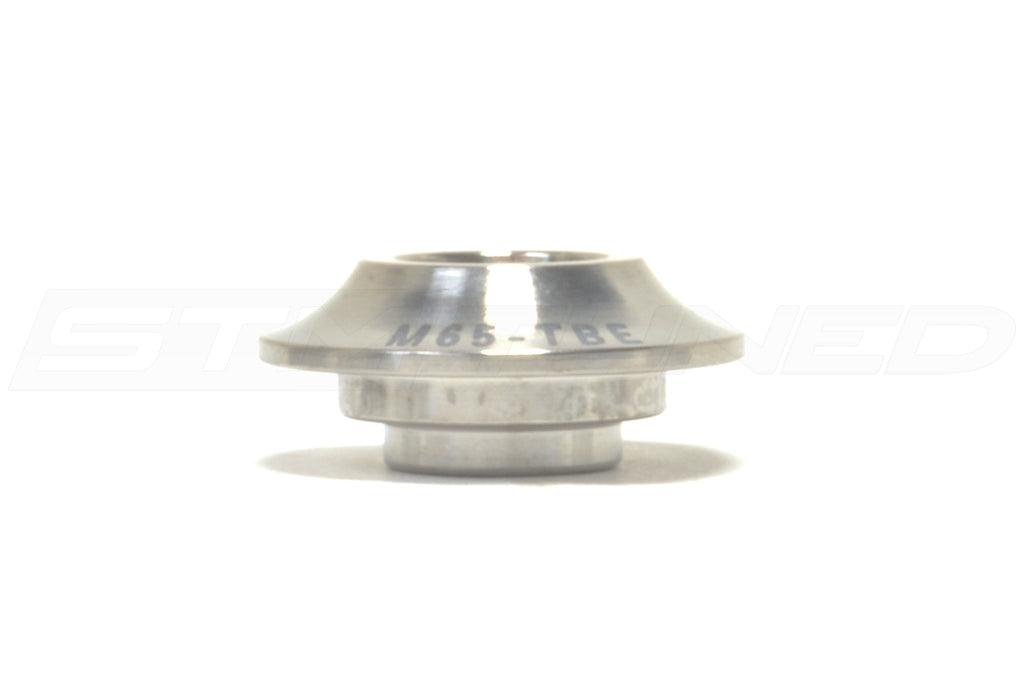

Supertech retainers are manufactured with high quality military certified Titanium alloy, and are CNC machined for a tight fit.
Vehicle Fitment:
1992-2006 Evolution I-IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1992 Galant VR-4
Purchase Includes:
(16) Beehive Valve Springs
(16) Titanium Retainers
(16) Valve Seats
| Part Number: | Pressure Seat: | Details: |
| SPRK-M1007BE-1 | 80lbs @ 38.60mm | Max Lift: 15.30mm Coil Bind: 22.80mm Rate: 12.80 lbs/mm Retainer: RET-M65-TBE Spring: SPR-M1007BE Seat Locator: SEAT-M65BE-1 |
| SPRK-M1007BE-2 | 98lbs @ 37.20mm | Max Lift: 14.00mm Coil Bind: 22.80mm Rate: 12.80 lbs/mm Retainer: RET-M65-TBE Spring: SPR-M1007BE Seat Locator: SEAT-M65BE-2 |
Supertech retainers are manufactured with high quality military certified Titanium alloy, and are CNC machined for a tight fit.
