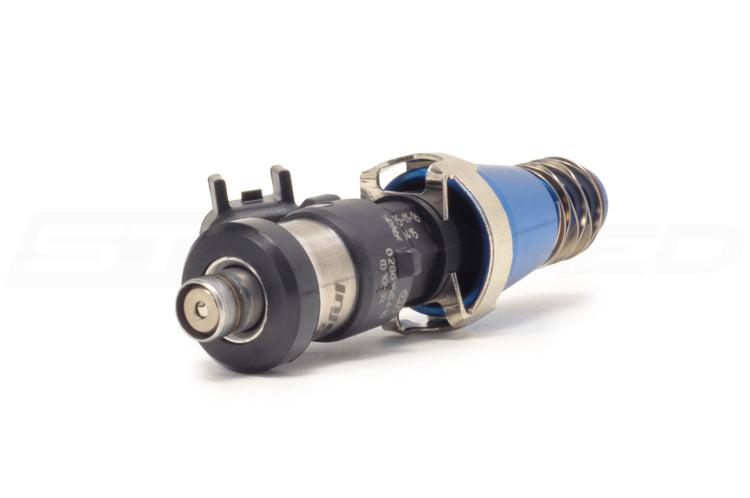

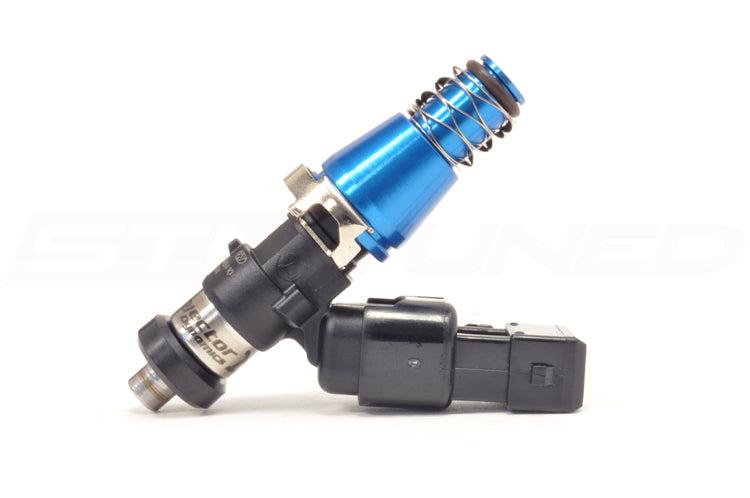

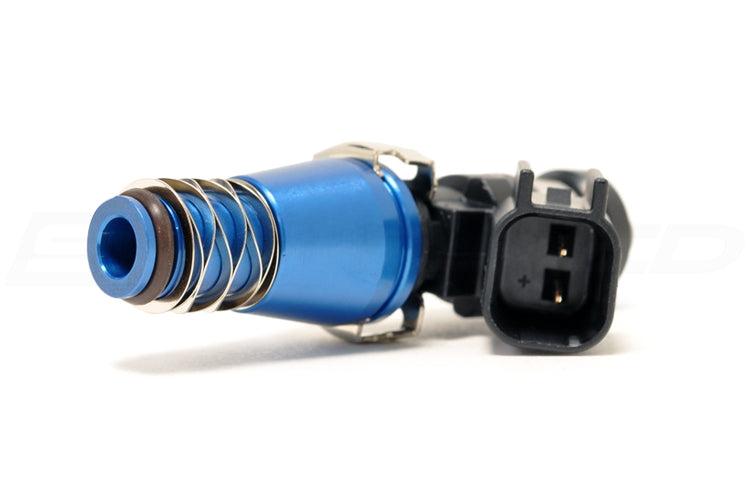

ID2600-XDS Fuel Injectors for Evo/DSM (2600.60.11.D.4)
1,267.35€
Sold By: Baltic Turbo Motors
SKU: STMK-ID-2600.60.11.D.4-90.1X4
Categories: Performance Parts
Vehicle Fitment:
Mitsubishi 4G63
1992-2006 Evolution I-IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1992 Galant VR4
Purchase Includes:

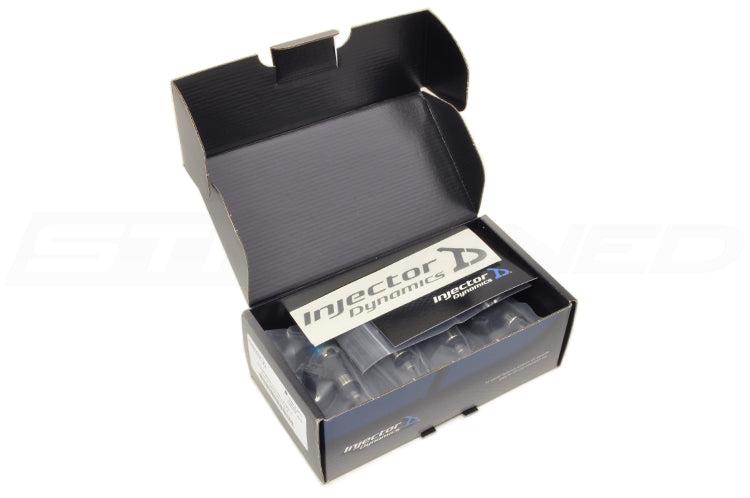

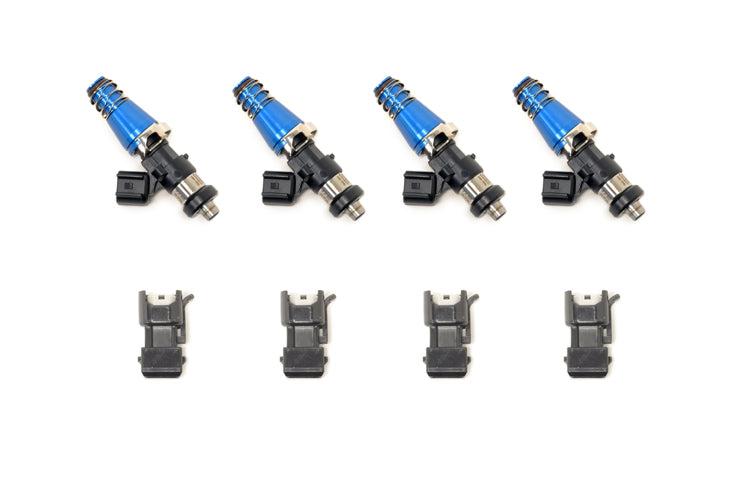

• Set of 4 Injectors

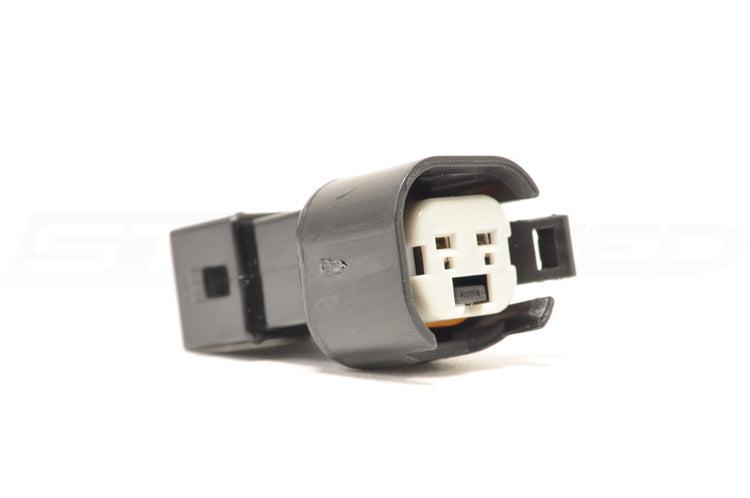

• Set of 4 Plug & Play Adapters (90.1)
Description:
The ID2600-XDS is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID2600-XDS was developed specifically for use with liquid fuels, featuring corrosion resistant internals, and long term compatibility with ethanol and methanol.
The ID2600-XDS has the highest flow rate of any injector offered by Bosch, and flows 50% more than the ID1700x. The ID2600-XDS benefits from Dual Slope Matching, a method of matching the flow rate in both the linear, and nonlinear operating range, providing better cylinder to cylinder consistency at low pulse widths.
IDID2600-XDS Injectors | ||||
| Nominal Flow Rate | Maximum Differential Fuel Pressure | Fuel Compatibility | Electrical Connector | PNP Clips |
| 2600cc/min @ 3.0 Bar (43.5 psi) | 9.0 Bar (130.5 psi) – Requires Minimum 11volt | Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane | USCAR | 90.1 |
ID2600-XDS Dynamic Flow Data | ||||||||
| Fuel Pressure (psid) | Offset (µsec) | Slope (cc/min) | ||||||
| 8 Volts | 10 Volts | 12 Volts | 14 Volts | 16 Volts | 18 Volts | |||
| 43.5 | 1340 | 880 | 605 | 440 | 315 | 275 | 2600 | |
| 45.0 | 1365 | 895 | 620 | 450 | 325 | 285 | 2645 | |
| 50.0 | 1450 | 955 | 675 | 485 | 350 | 305 | 2780 | |
| 55.0 | 1540 | 1010 | 730 | 520 | 370 | 325 | 2900 | |
| 60.0 | 1635 | 1060 | 770 | 555 | 395 | 350 | 3025 | |
| 65.0 | 1730 | 1115 | 800 | 590 | 420 | 380 | 3140 | |
| 70.0 | 1825 | 1165 | 830 | 625 | 450 | 415 | 3255 | |
| 75.0 | 1935 | 1225 | 870 | 660 | 485 | 445 | 3370 | |
| 80.0 | 2050 | 1285 | 915 | 690 | 525 | 475 | 3485 | |
| 85.0 | 2175 | 1350 | 955 | 745 | 585 | 520 | 3595 | |
| 90.0 | 2320 | 1410 | 995 | 745 | 585 | 520 | 3680 | |
| 95.0 | 2485 | 1465 | 1030 | 765 | 605 | 540 | 3755 | |
| 100.0 | 2670 | 1520 | 1060 | 780 | 615 | 550 | 3810 | |
