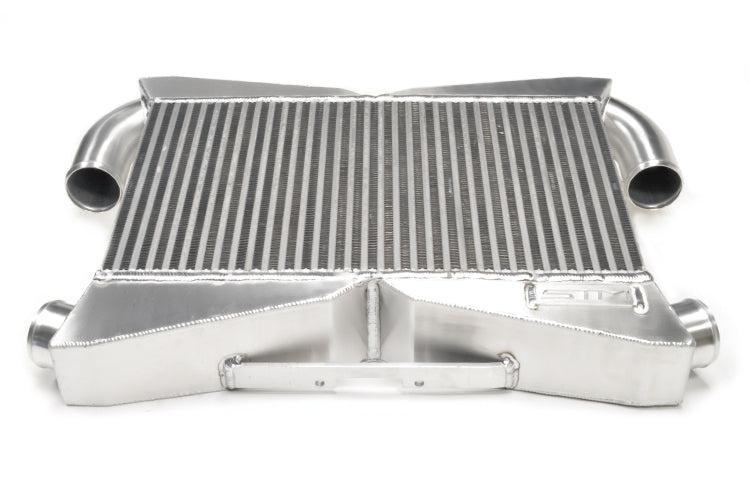

STM R35 GTR Street Intercooler Kit

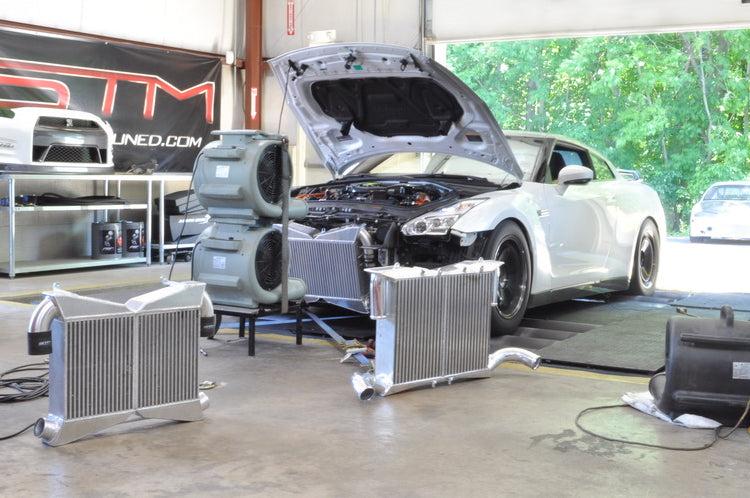

The STM R35 GTR Intercooler Kit is handcrafted in-house utilizing a 1000 HP intercooler core. Product testing on the STM Mustang Dyno yielded gains of +40 HP in stock turbo applications. Features lightweight, 2.75' aluminum piping flanged for TiAL blow off valves and available with a brushed aluminum finish, gloss black or wrinkle black powdercoat.

This kit is available with or without the two TiAL blow off valves. Your choice of TiAL Q (for Speed Density) or TiAL QR (Factory MAF Recirculated) and choice of color - red, blue, purple, silver or black.

Record Setting!
This is the same kit we used in our record setting stock motor and transmission GTR, running a best of 9.09 and 149 MPH!

Vehicle Fitment:
2009-2020 Nissan R35 GT-R

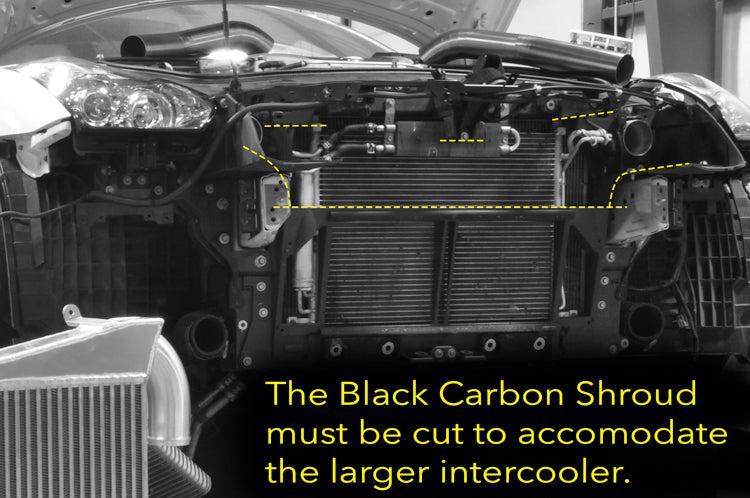

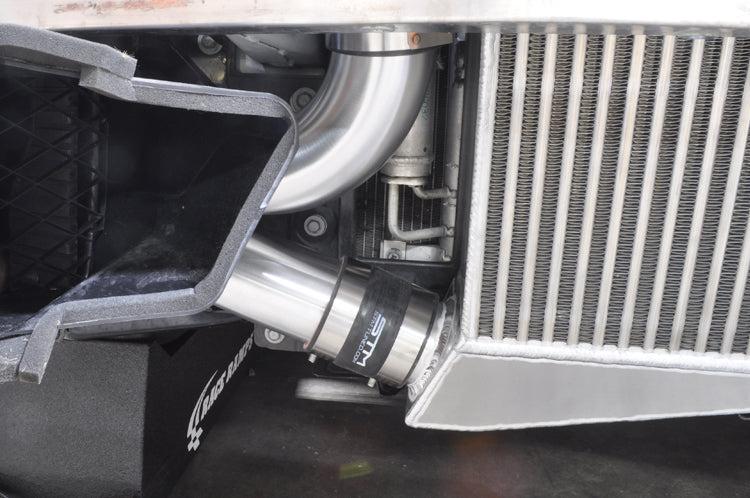

• Requires trimming of the carbon shroud (pictured below)
• No cutting of the frame

Features:

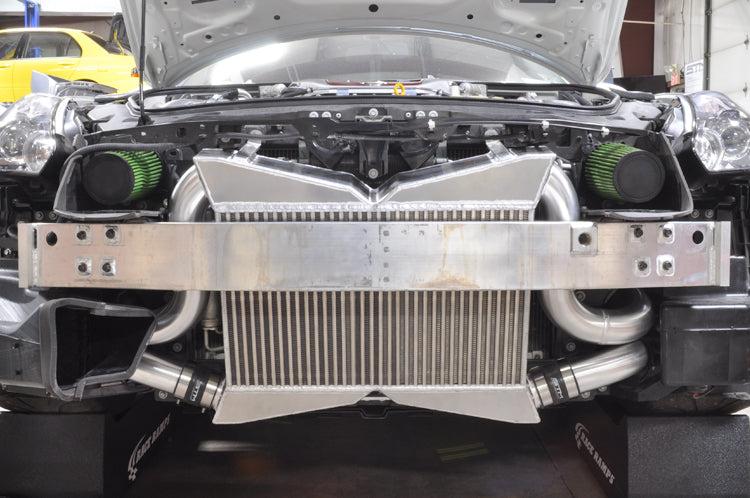

• Fits Factory Crash Beam
• 2.75' Aluminum Piping
• Supports over 1000+ HP
• Vibrant Core
• TiAL BOV Flanges
• Designed for Stock Throttle Body
• Can Accommodate Aftermarket Throttle Bodies with a Coupler Change
• Choice of Colors and Finish

STM Products are made in the USA!
Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects.

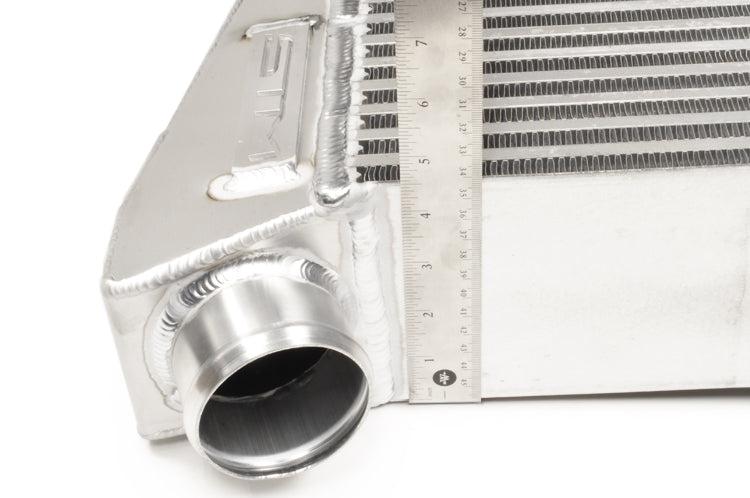

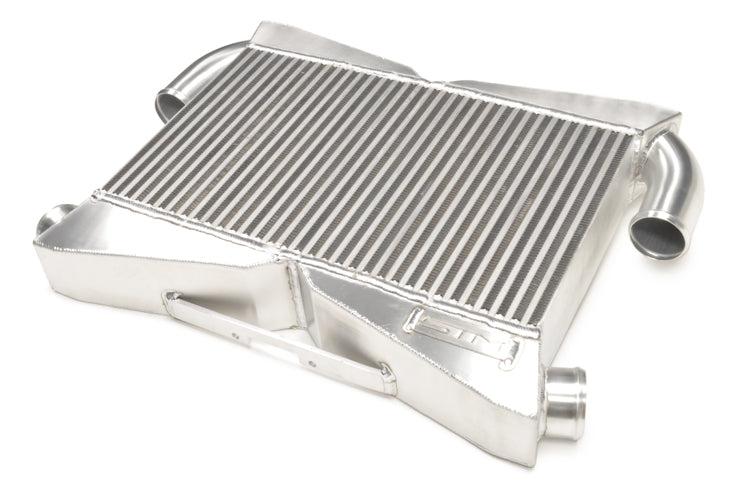

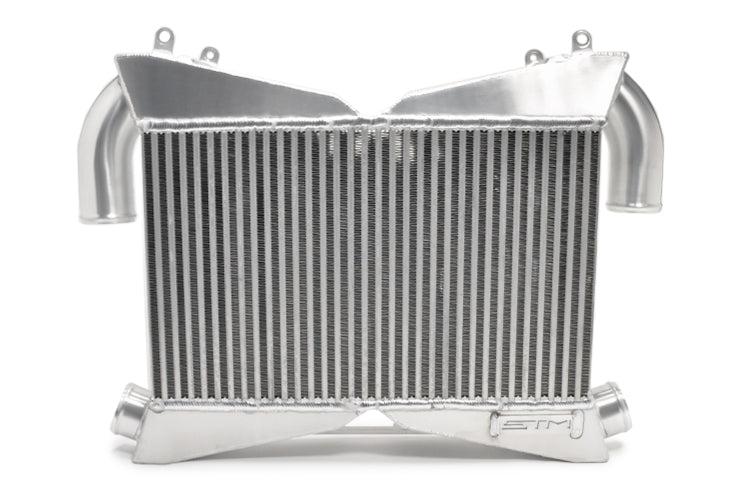

Core Dimensions:
• 4.5' Thick
• 14' Tall
• 22' Wide

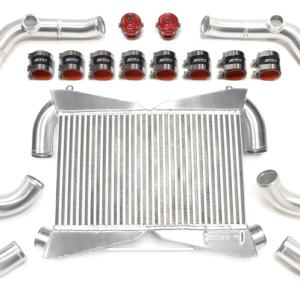

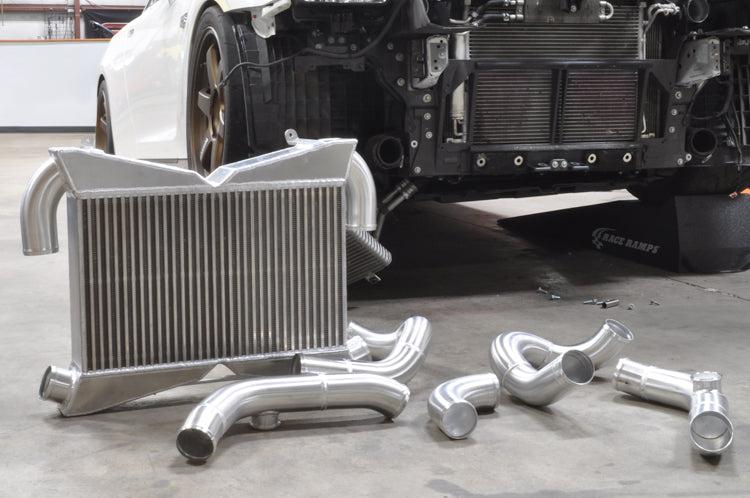

Includes:
(1) STM Intercooler
(1) 6-Piece 2.75' Aluminum Pipe Set with TiAL Flanges
(8) STM 2.75' Straight Silicone Couplers (C40B-275)
(16) 2.75' Stainless T-Clamps (94100-0312)
(2) Optional TIAL Blow Off Valves

Options:

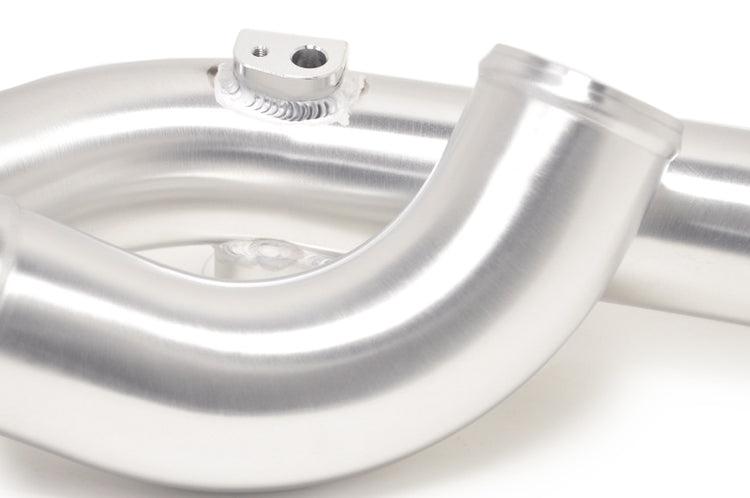

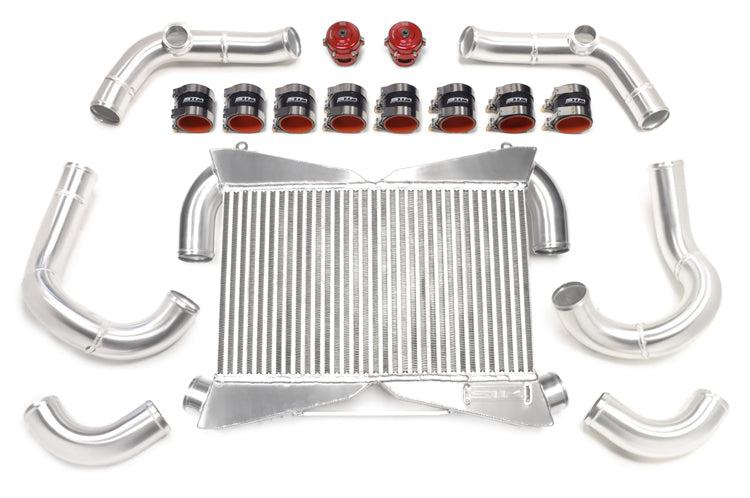

• Brushed Aluminum Piping

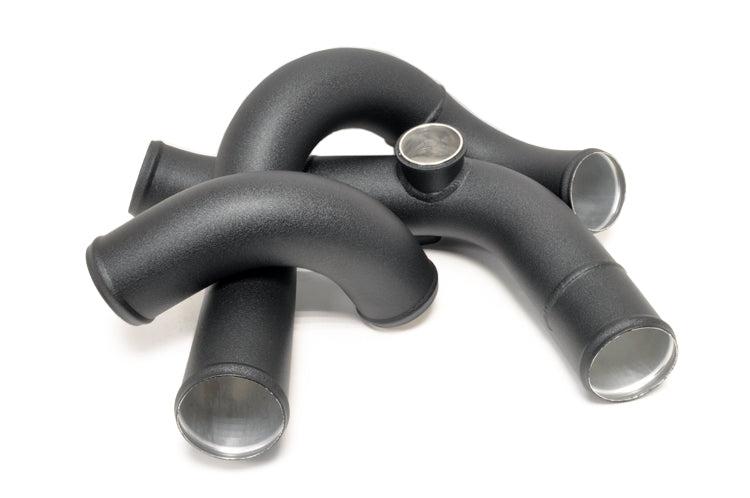

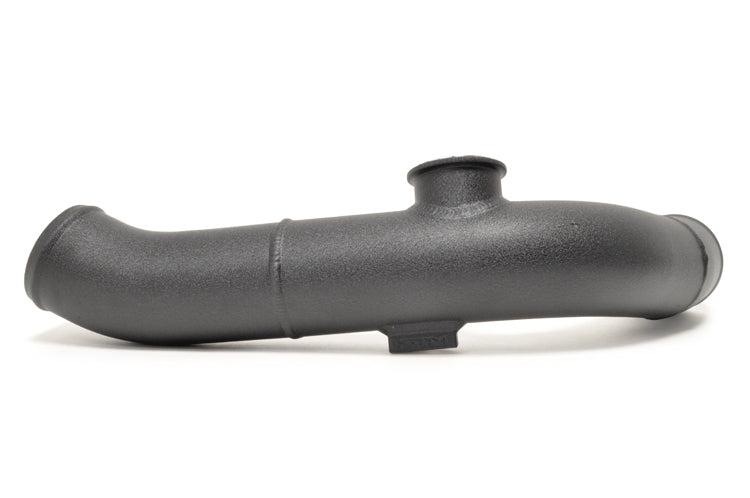

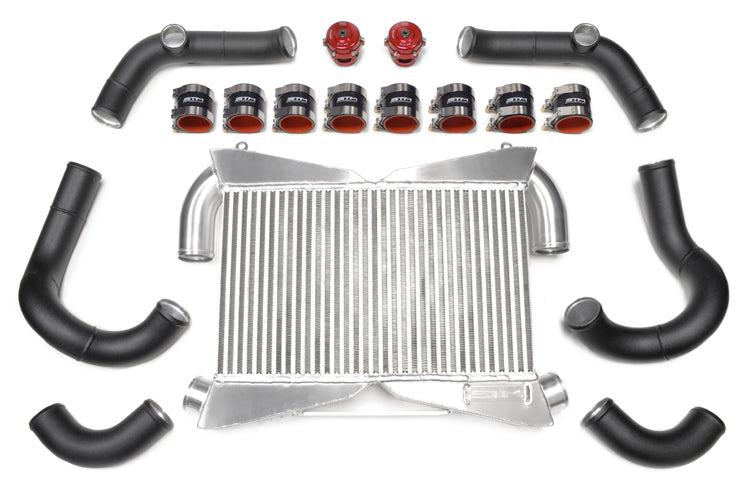

• Wrinkle Black Powdercoat (+$150)

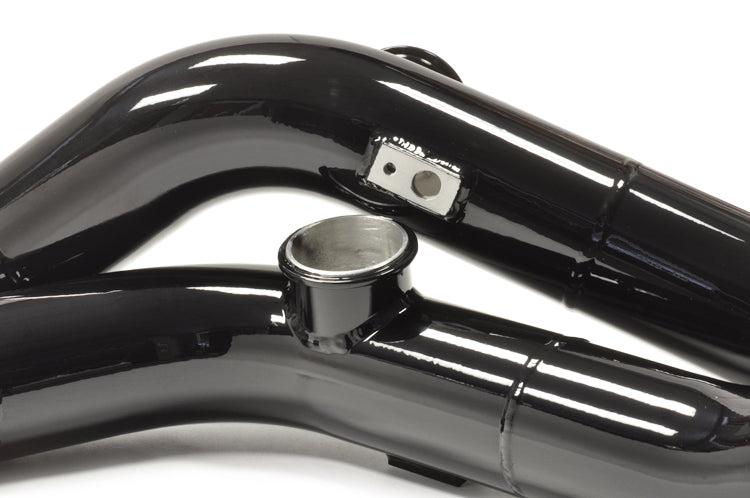

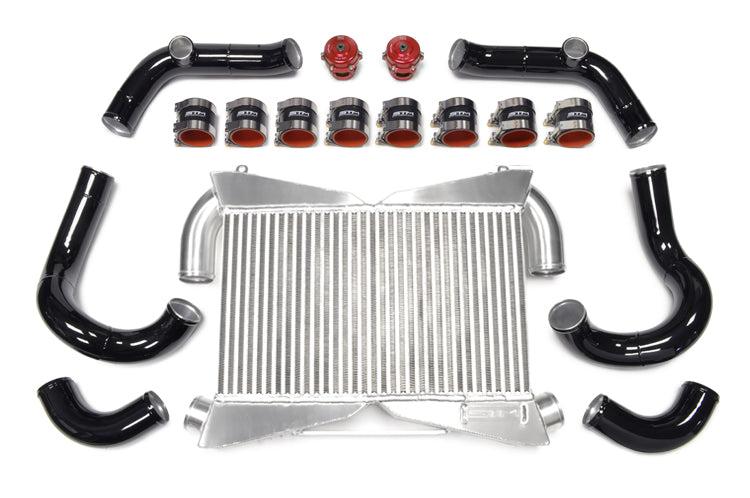

• Gloss Black Powdercoat (+$150)
• Add 2 Tial Q Valves (+$530)
• Add 2 Tial QR Valves (+$530)

Shipping Times: 1-14 days
Hand crafted and welded in New York, please give our fabricators time to assemble your parts! TiAL may affect shipping times.
