STM Fuel Feed and Return Kit with Rail for Evo 8/9 (FFRR)

The STM Evo 8/9 -6AN fuel feed and return kit with rail and regulator makes it easy to clean up your fuel system from hard line to hard line. Includes every fitting, bolt, bracket, line and ziptie you'll need for a direct-fit, hassle-free install. Includes the STM black anodized fuel rail with your choice of mini regulator color, high quality black fittings and nylon hose. All components are safe for corrosive race fuels, gas and E85.

Vehicle Fitment:
2003-2006 Mitsubishi Evolution VIII IX
• Unconfirmed with Evo 7 or JDM models

Options:

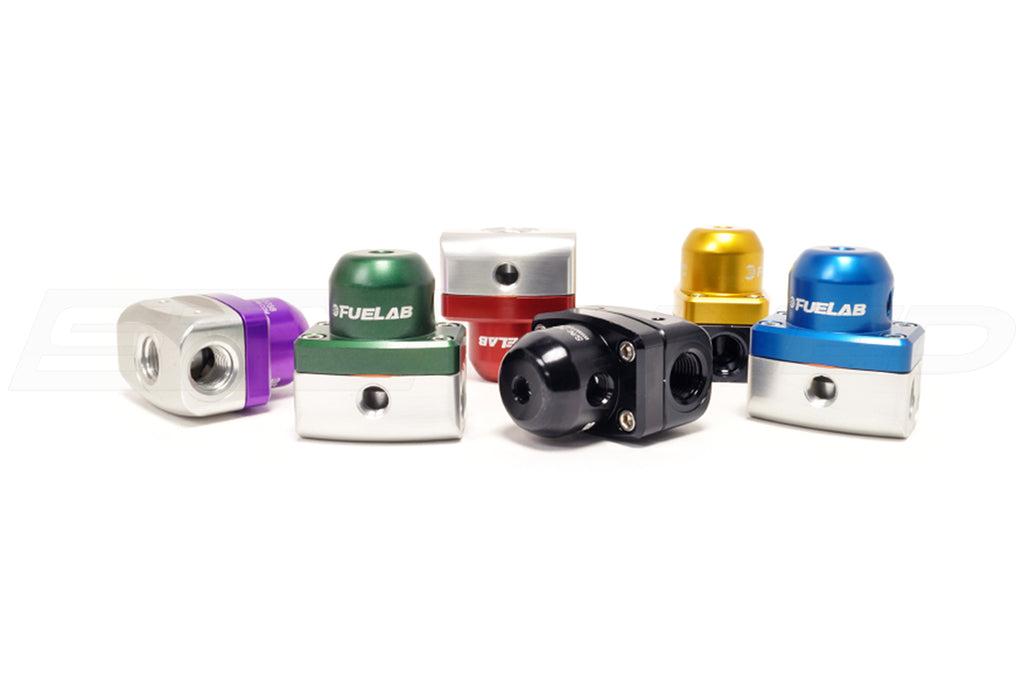

• Fuelab Mini FPR Color: Black, Red, Blue, Purple, Gold or Green

Features:
• Installs from line to hard line
• Includes every part needed to bolt-in and go!

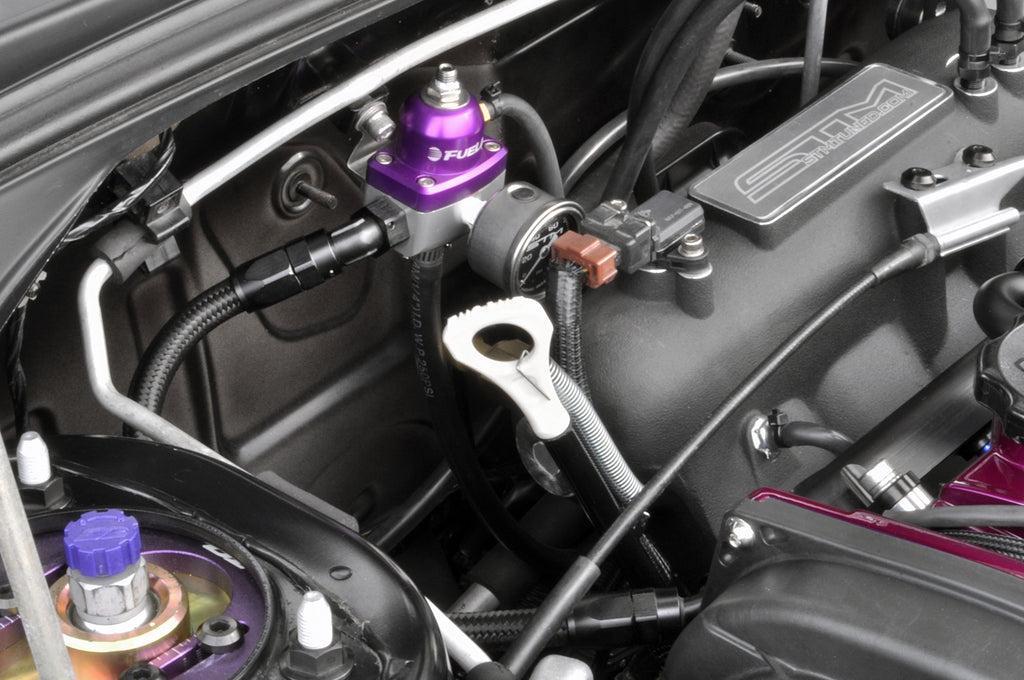

• Direct fit STM Evo 8/9 FPR mounting bracket

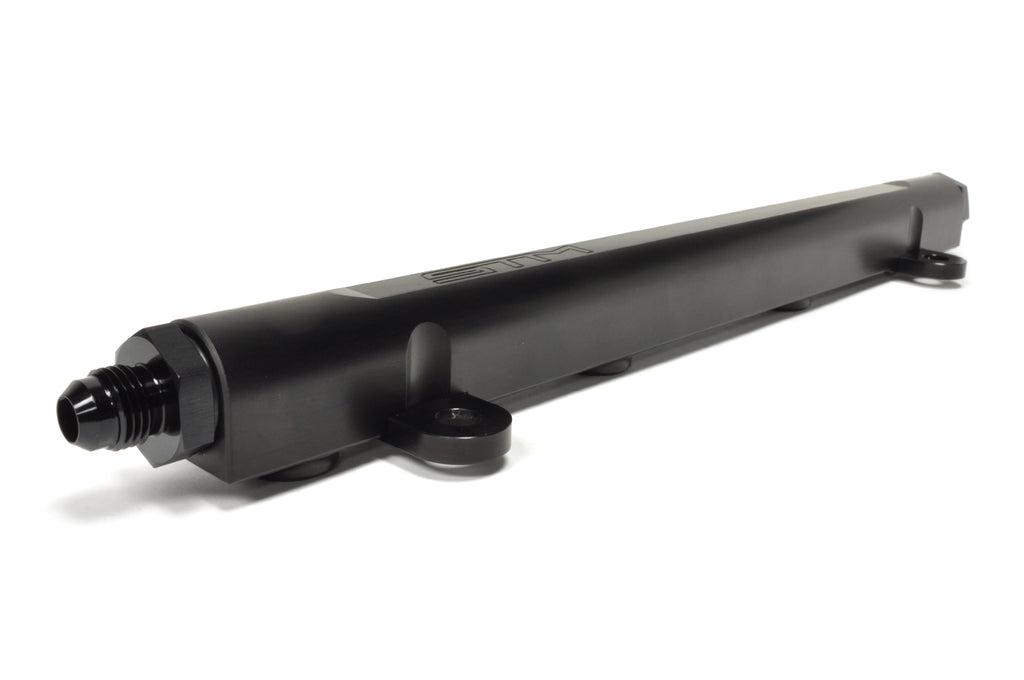

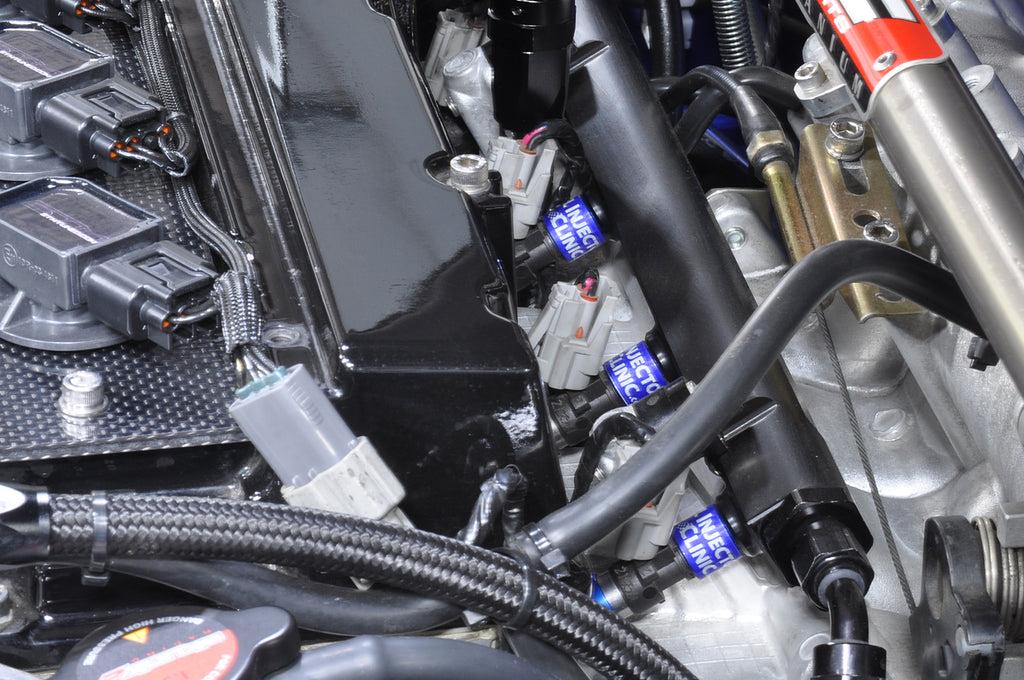

• Black anodized STM engraved rail
• Soft nylon braided hose will not scratch like stainless

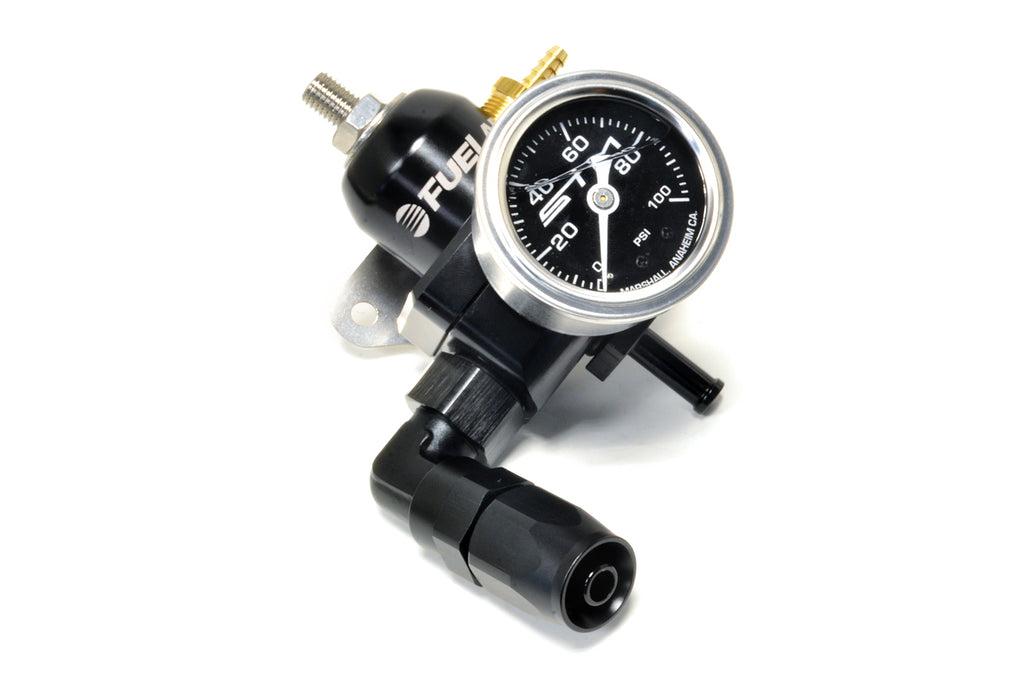

• Silicone-filled fuel pressure gauge
• Fuelab regulator in your choice of 6 colors
• 100% E85/ ethanol safe

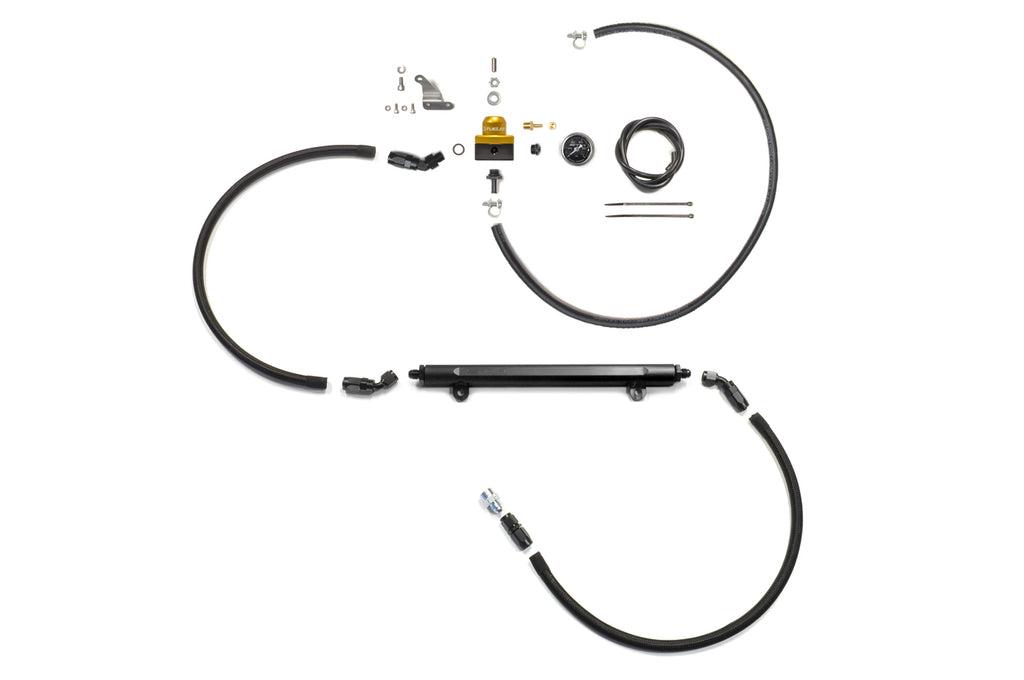

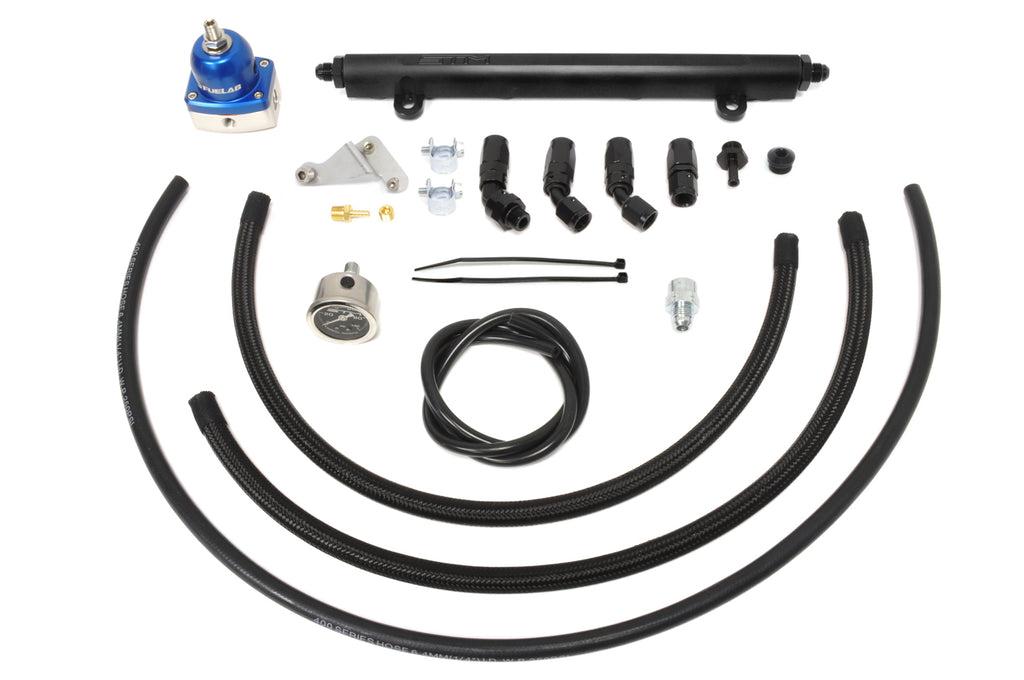

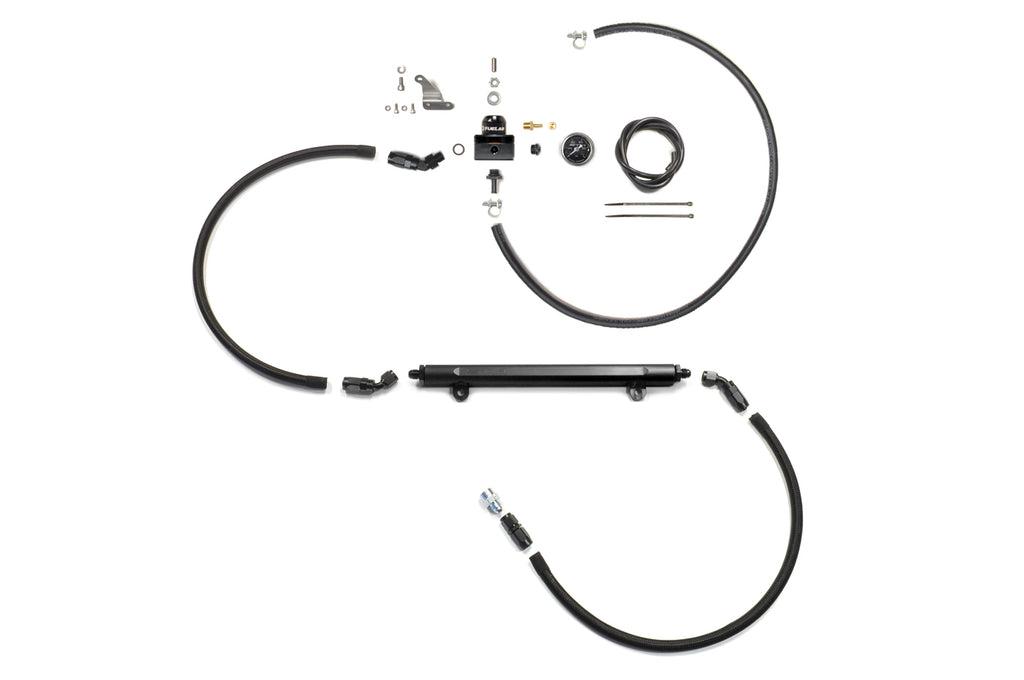

Includes:

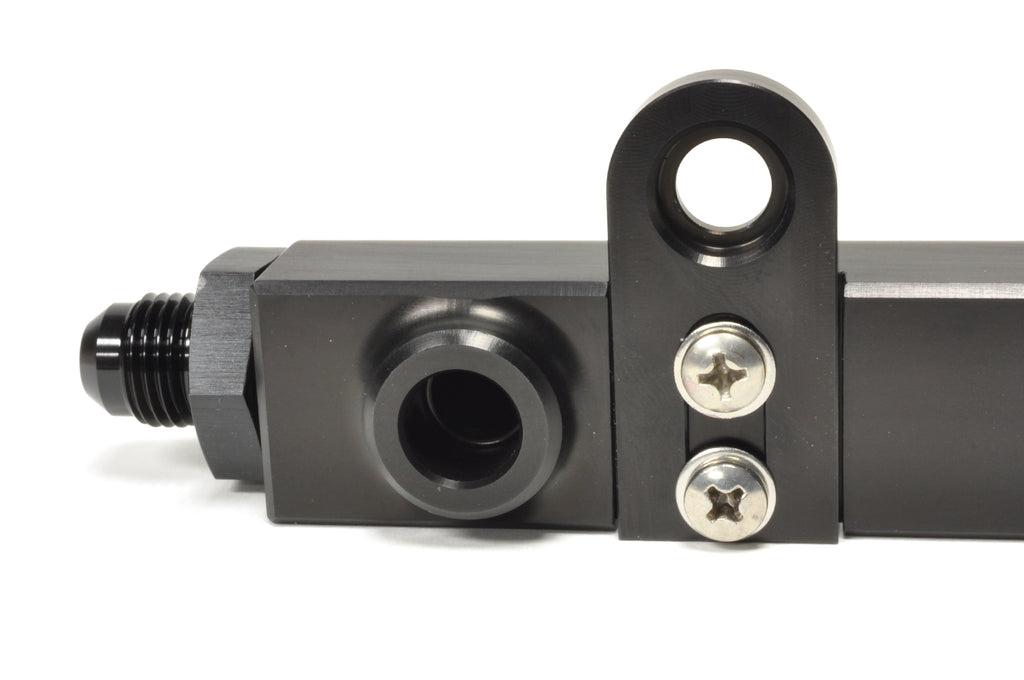

(1) STM Fuel Rail with -6AN Fittings (16827 x2)

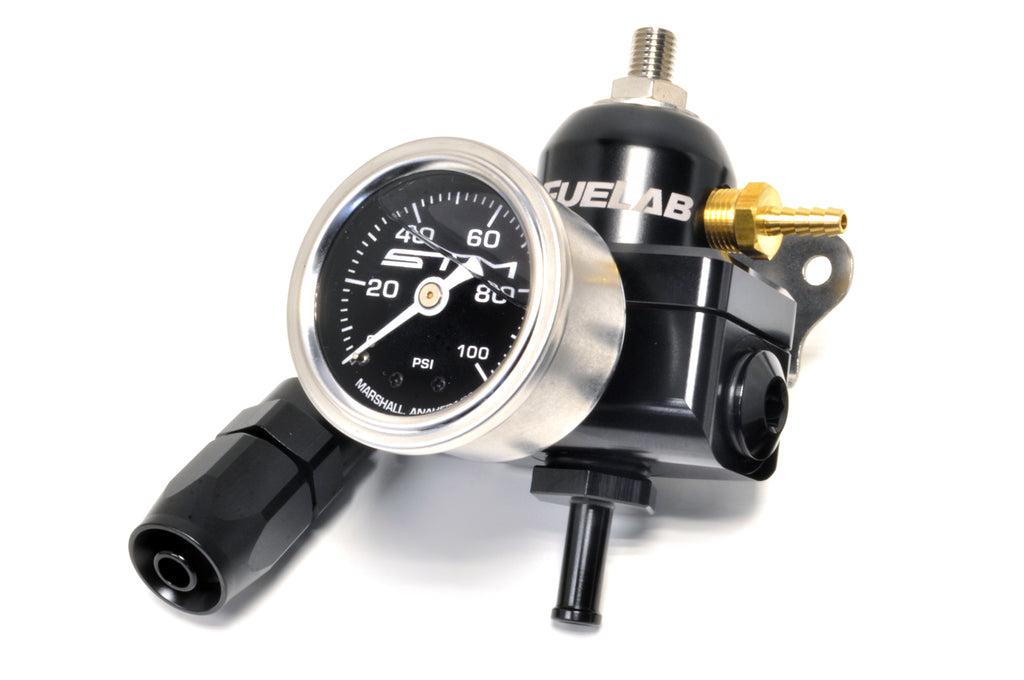

(1) STM Liquid-Filled Fuel Pressure Gauge (STM-UNI-FPG)
(1) STM -6AN Barb Fitting (STM-6AN-7MM)
(1) STM Bubble Flare Fitting (STM-FSC-614MMF)

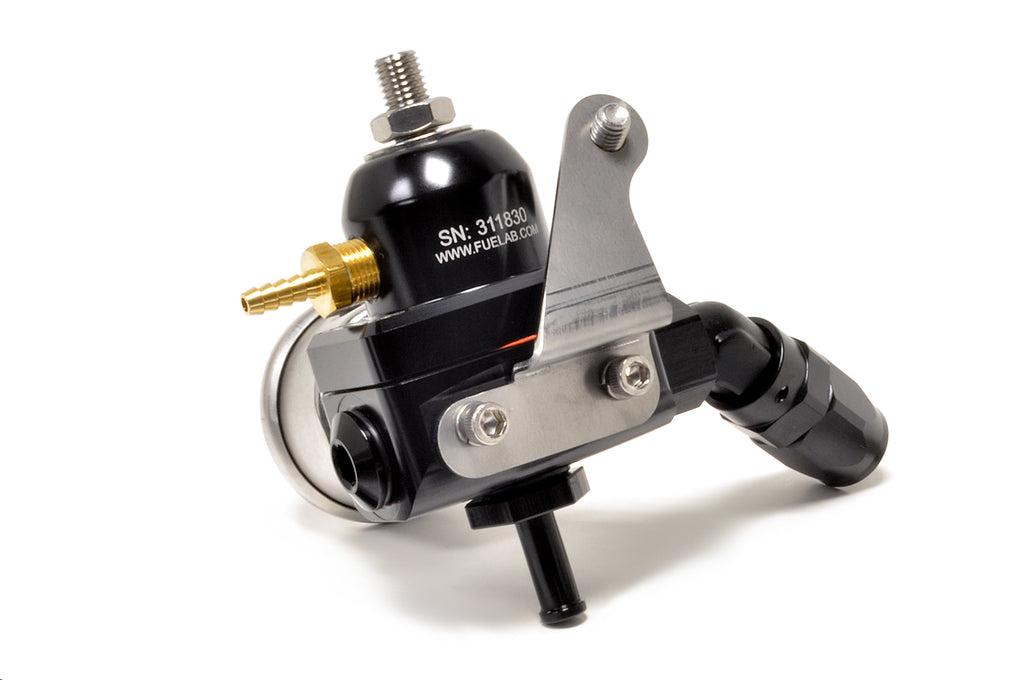

(1) STM Mini FPR Mounting Bracket (STM-EVO89-FLMBRKT)
(1) Fuelab -6AN Mini Fuel Pressure Regulator (53501)

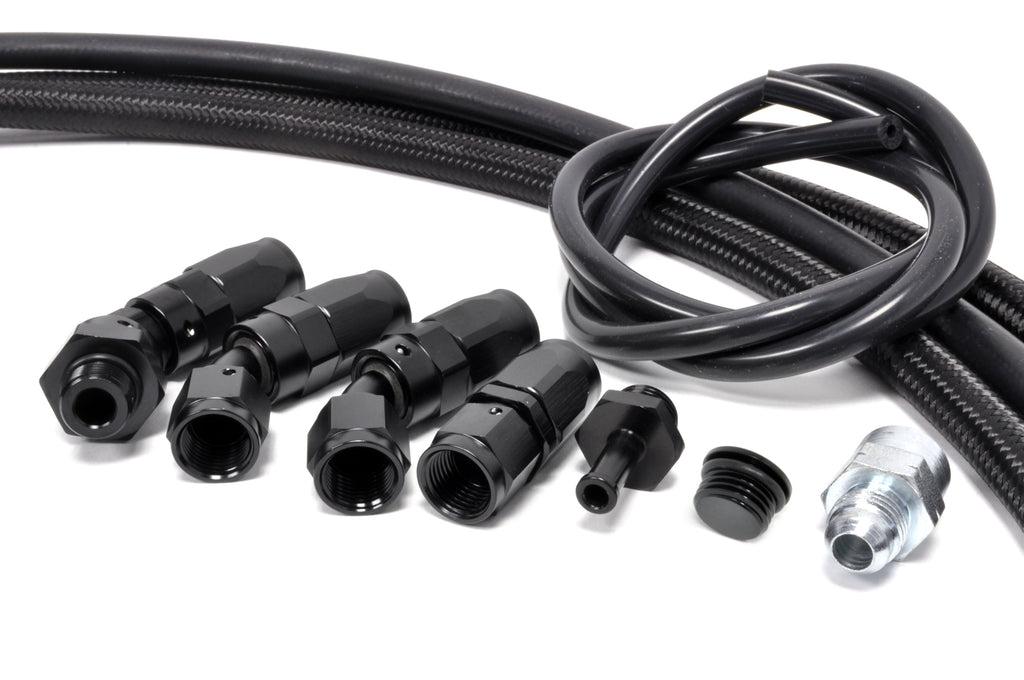

(2) Vibrant 2-Foot Length -6AN Black Braided Hose (11956)
(2) Vibrant High Pressure Clamps 10-12mm (VIB-12233)
(1) Vibrant -6AN ORB 45° Hose End Fitting (24402)
(2) Vibrant -6AN 45° Hose End Fitting (21406)
(1) Vibrant -6AN Straight Hose End Fitting (21006)
(1) Vibrant -6AN Port Plug (10992)
(1) 3 Foot Fuel Return Hose
(1) 3 Foot Section 3mm Silicone Vacuum Line
(2) Small 4' Zip Ties (FAS-63122)
(1) M6x12 Bolt
(1) M6 Lock Washer

Install Notes:
• The blue O-rings are not needed.
• The brass NPT plug can be used if you want to plug off the gauge.
• The bracket included in the Fuelab box will not be needed.
• Thread Tape should be used on the gauge and the brass fitting.
• Do NOT use thread tape on AN fittings!
• We recommend: the for the brass fitting or plug, for the adjustment stud on top of the regulator and for the gauge itself.

Old Part Numbers:
STM-EVO89-FFRR-BK-51502-1, STM-EVO89-FFRR-BK-51502-2, STM-EVO89-FFRR-BK-51502-3, STM-EVO89-FFRR-BK-51502-4, STM-EVO89-FFRR-BK-51502-5, STM-EVO89-FFRR-BK-51502-6
