STM Evo 5/6 Titanium 2.5in Upper Intercooler Pipe Kit

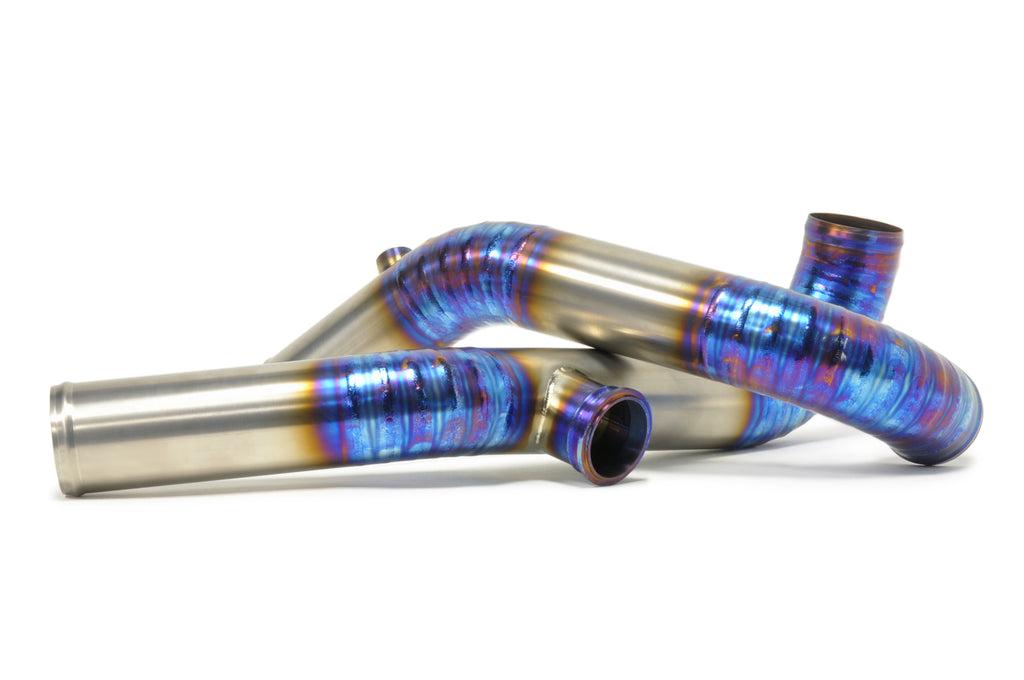

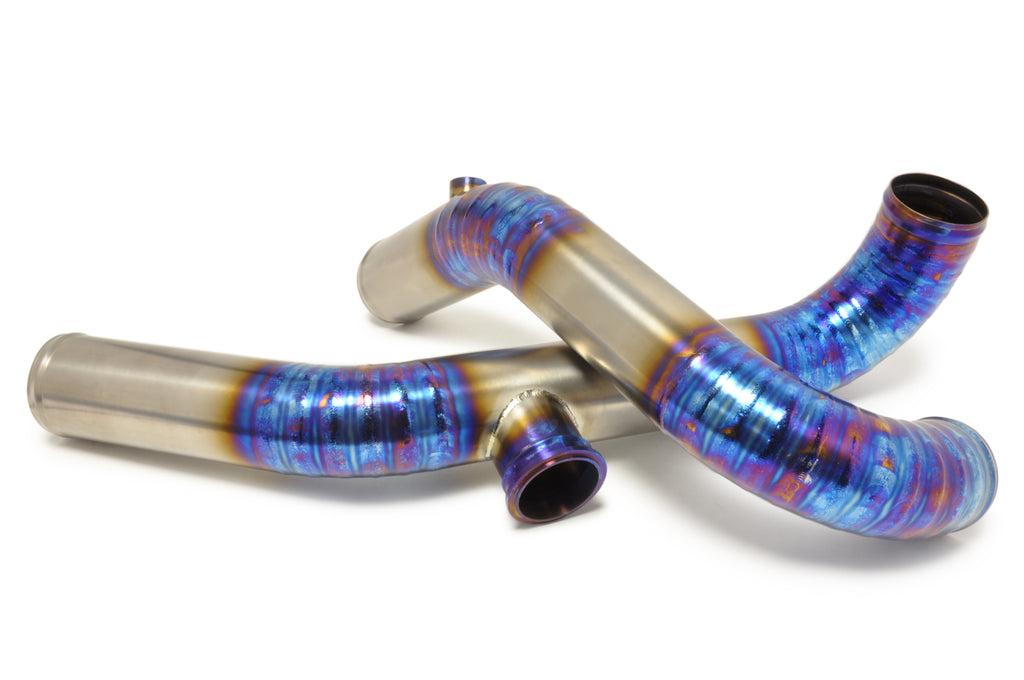

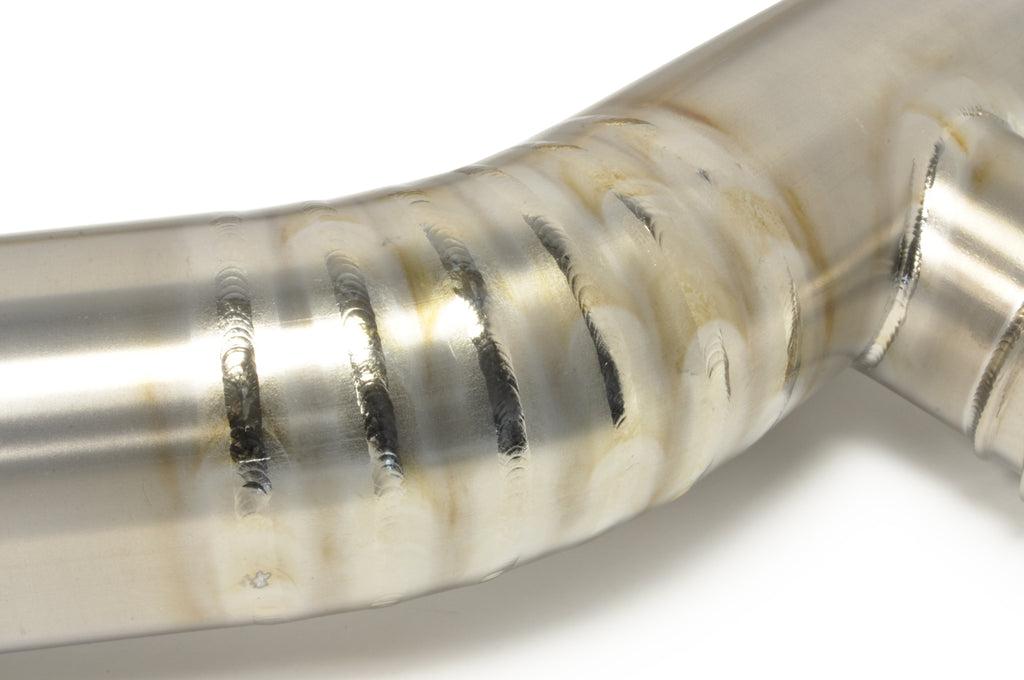

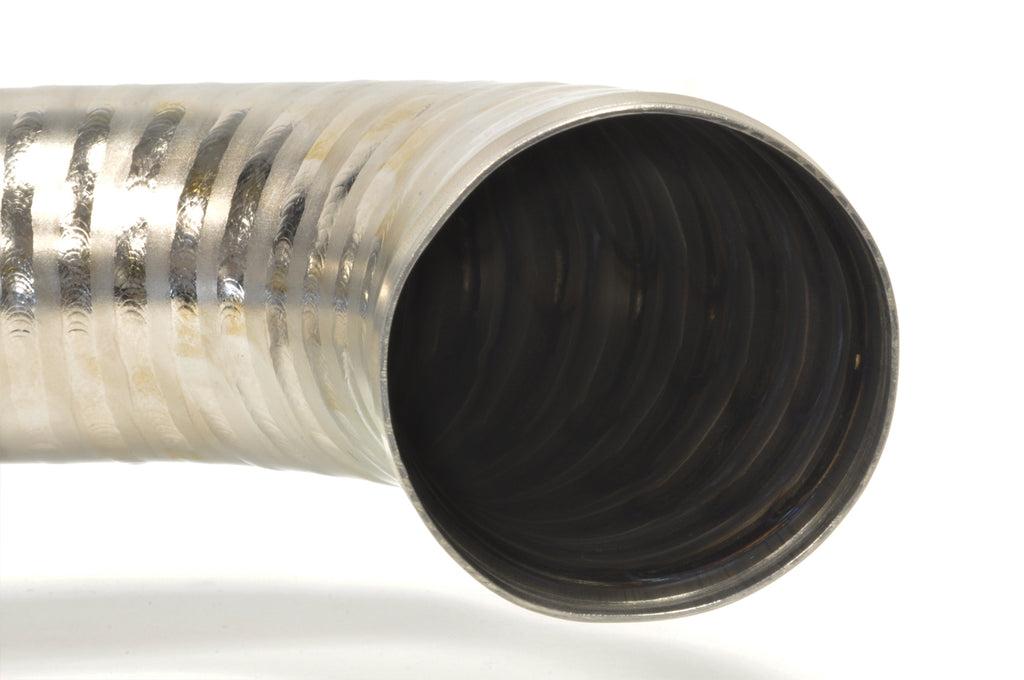

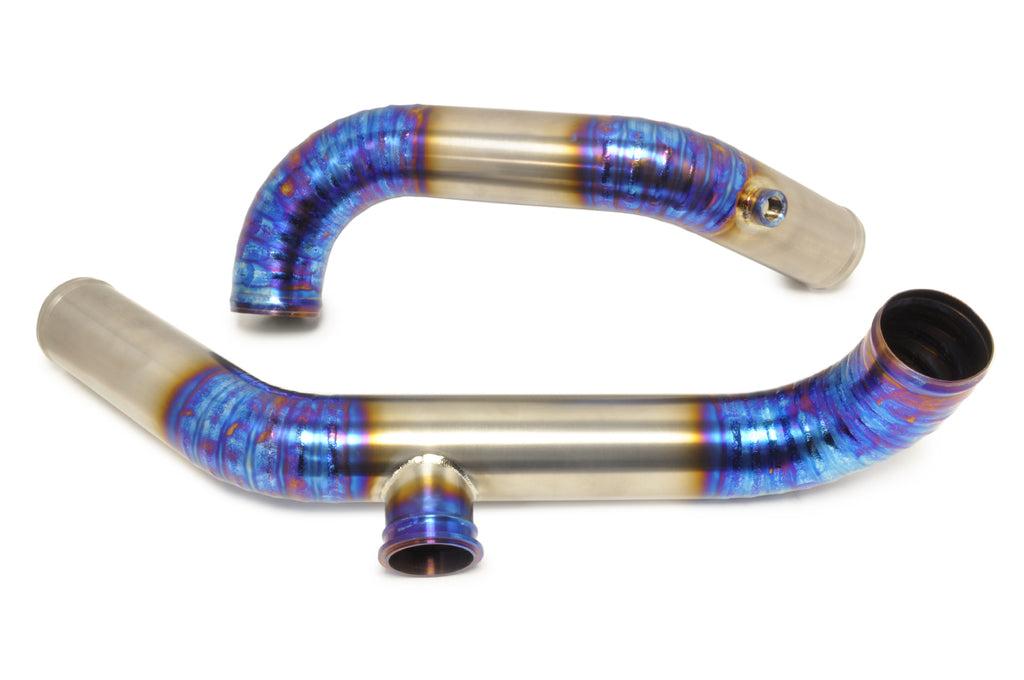

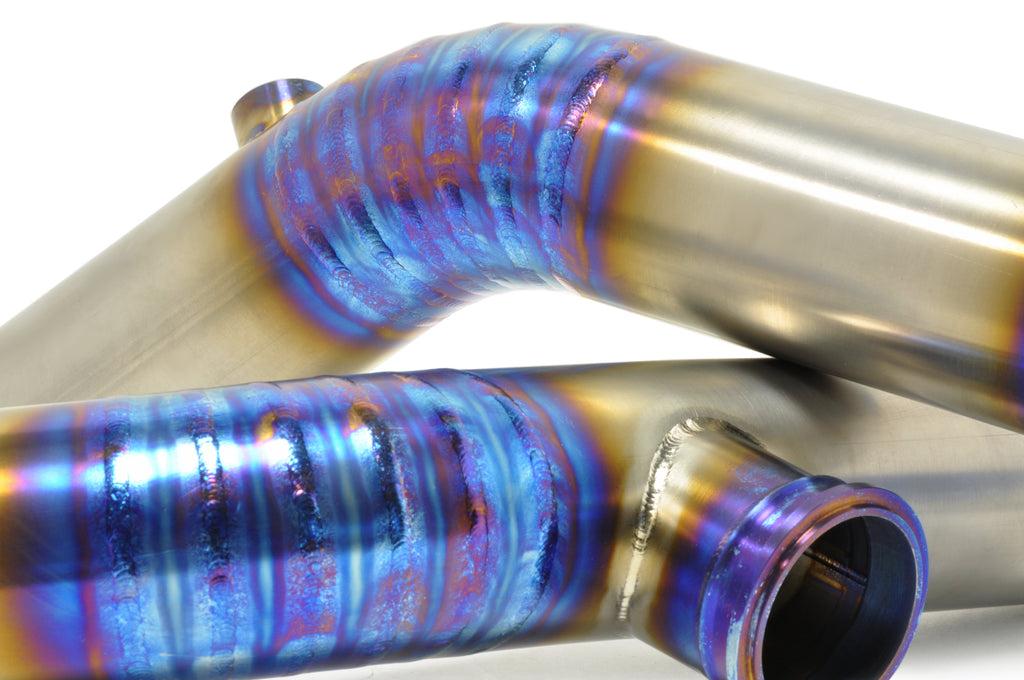

The STM 2.5' titanium upper intercooler pipe kit for the Evo 5/6 is pie-cut and tig welded for strength and durability. Choose the bare titanium finish or burned blue/purple/gold. Each piece is hand-made and hand-burned. Available with either a TiAL blow off valve flange or stock and includes an AIT bung. (A plug is included if AIT is not needed for your application).

Vehicle Fitment:
Mitsubishi Evolution IV VI
• Fits with the
• Fits with the

Evo 4 Notes:
These upper intercooler pipes can fit Evo 4 stock intercooler - but you may need a 30° coupler to the intercooler and possibly more modification. It's not a direct fit. Additionally, you'll need a small battery. Our STM Evo 5/6 battery kit is *just* a touch different on Evo 4 where the mounting hole is to the frame. Again, you could do some custom mods, but we cannot suggest exact install directions.

Intake Manifold Fitment:
This kit is designed to work with any intake manifold that utilizes the factory throttle body location, including OEM, Skunk2, Driven Innovations, AMS F1 and so on.

Throttle Body Fitment:
Select the proper coupler size to match your throttle body in the purchase menu. We offer a 2.75' option to match the stock TB or 3' which fits with the both S90 70mm and 74mm. Please double check your TB size if you have another style.

Battery Fitment:
These pipes will not clear a factory-sized battery. The is required for install.

Intercooler Fitment:
This pipe set has been test fitted to the . These are not confirmed to fit with the factory intercooler or any other aftermarket options.

Blow Off Valve Fitment:

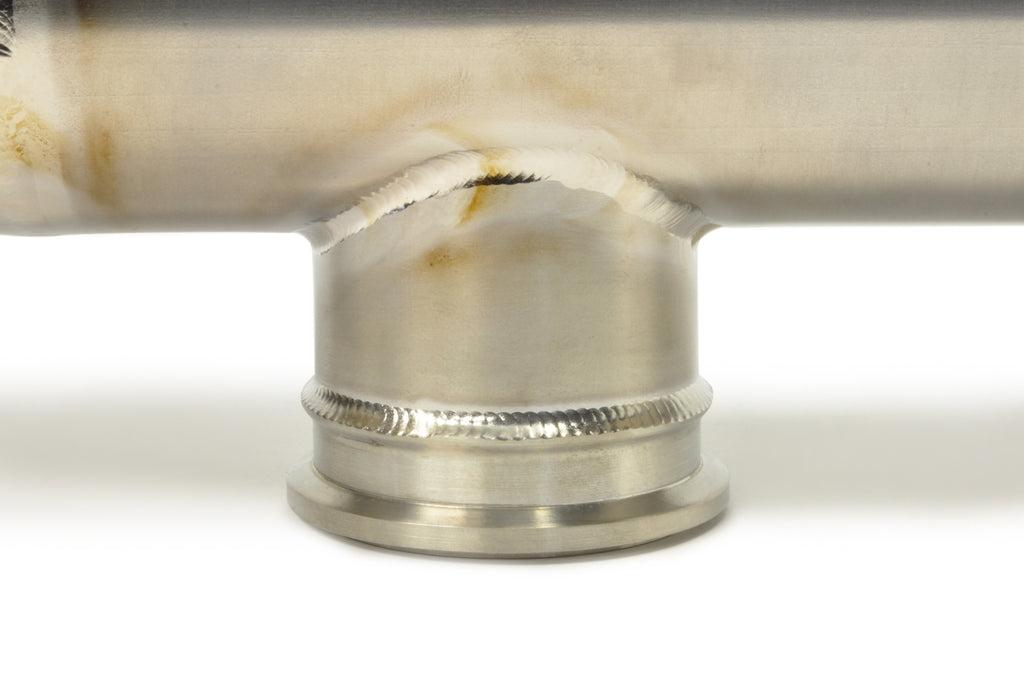

We offer the titanium pipes with either a stock BOV flange or a TiAL Sport flange.

AIT Bung & Plug:
All STM UICP kits will include an AIT bung welded onto the bottom pipe that connects to the intercooler. If you do not need to run an AIT sensor, we also include a black plug to seal it off. should be used when installing the plug.

Features:
• Burned Titanium Finish
• 2.5' Pie-Cut Titanium Tubing
• Hand Fabricated In-House
• Bead-Rolled Pipe Ends
• High-Quality Couplers
• Stainless T-Bolt Clamps
• AIT Bung & Plug
• Good for 50+ PSI
• STM Products are made in the USA!
• Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects

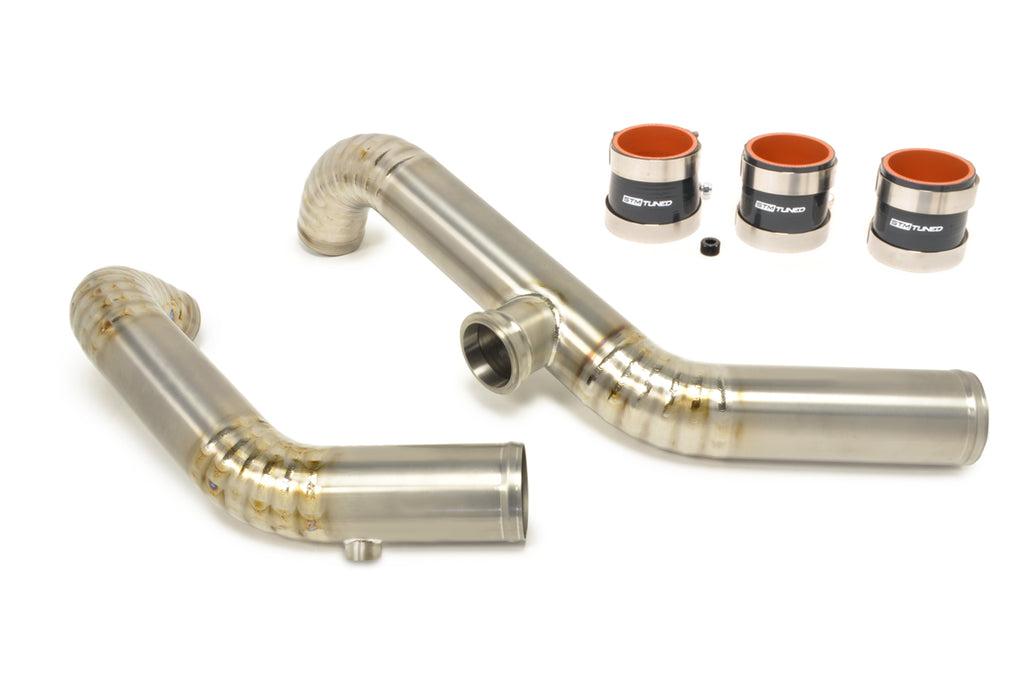

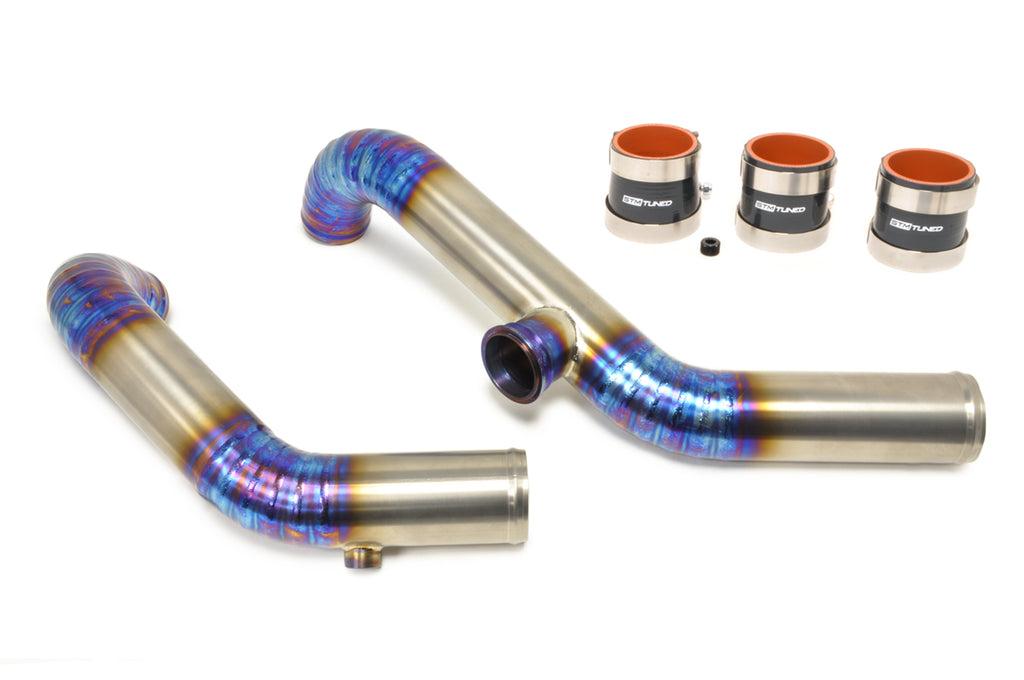

Includes:
(2) STM 2.5' Titanium Pipes

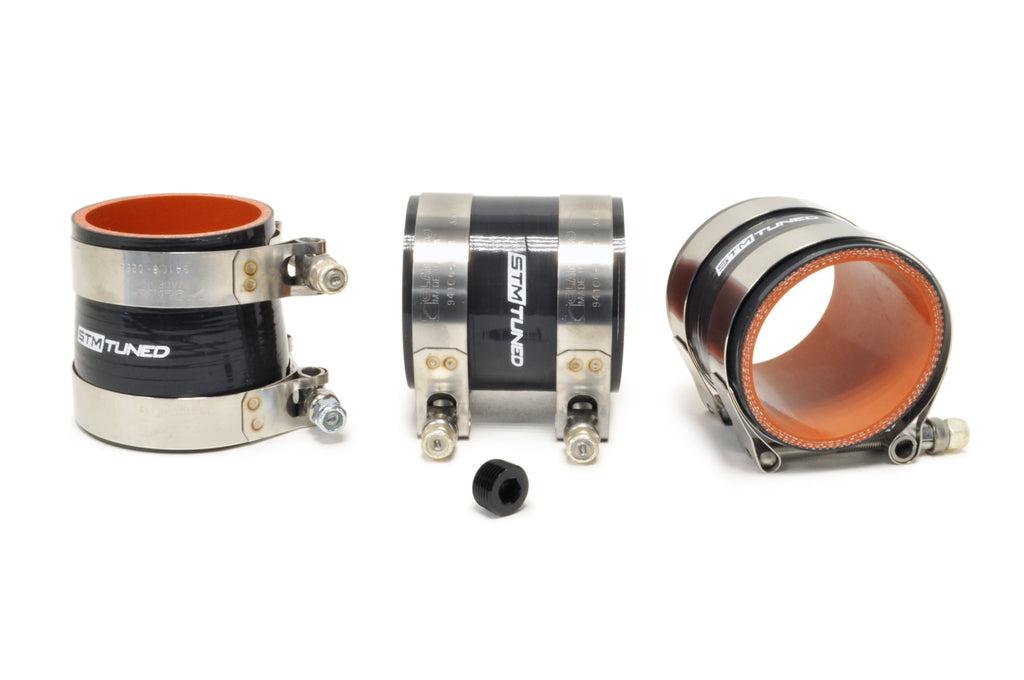

(3) Couplers
(6) Stainless Steel T-Bolt Clamps
(1) Vibrant Plug (10492)

Options:
• Bare Titanium or Burned
• Choice of Blow Off Valve Flange
• Coupler Size for Throttle Body

More Options:
The STM upper intercooler pipes are available in 2.5' titanium or aluminum with various finish options.

Shipping Times: 1-14 Days
Hand crafted in New York, please give our fabricators time to create and finish your pipes!

Previous Part Numbers:
STM-EVO46-UICP-TI, STM-EVO46-UICP-TI-BRN
