STM -10AN Turbo Oil Return Line Braided Nylon G-Series for DSM/Evo 7-9 (TORLB-G)

The STM braided nylon -10AN 'G-Series' turbo oil return line kit for DSM and Evo 7/8/9 includes soft braided nylon line and black fittings to go from your turbo to oil pan. The G-Series flange typically fits PTE turbos and non-ball-bearing Garrett turbos among other applications. Provides enough line to work with most forward-facing and standard placement turbo kits. The G-Series drain fitting measures 2' from bolt hole to bolt hole, please double check your fitments.

Vehicle Fitment:
2001-2006 Evolution VII VIII IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS

Turbo Fitment:
• PTE Turbos
• Non-Ball-Bearing Garrett Turbos
• NOTE: Does NOT fit the new (2020/2021) Garrett G-Series Turbos. The new Garrett G-Series turbos will use the oil return line.

Features:
• From turbo to oil pan
• Braided Nylon line won't scratch finishes
• Billet Aluminum Drain Flanges
• Gaskets Included
• Long enough to work with most Forward-Facing and Standard Placement Turbo Kits
• G-Series drain fitting measures 2' from bolt hole to bolt hole

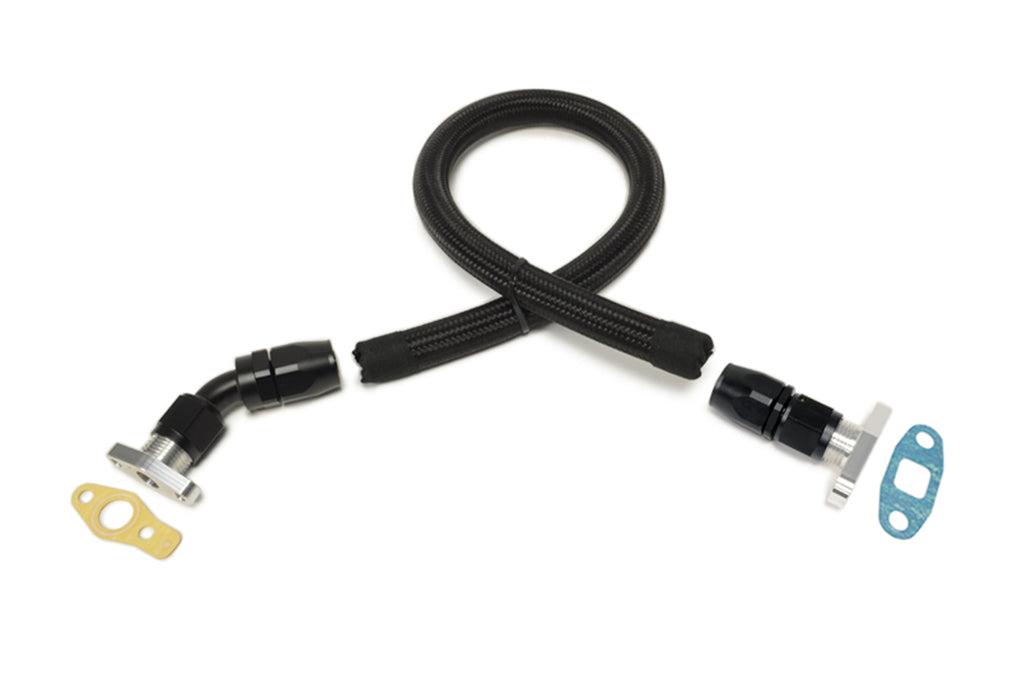

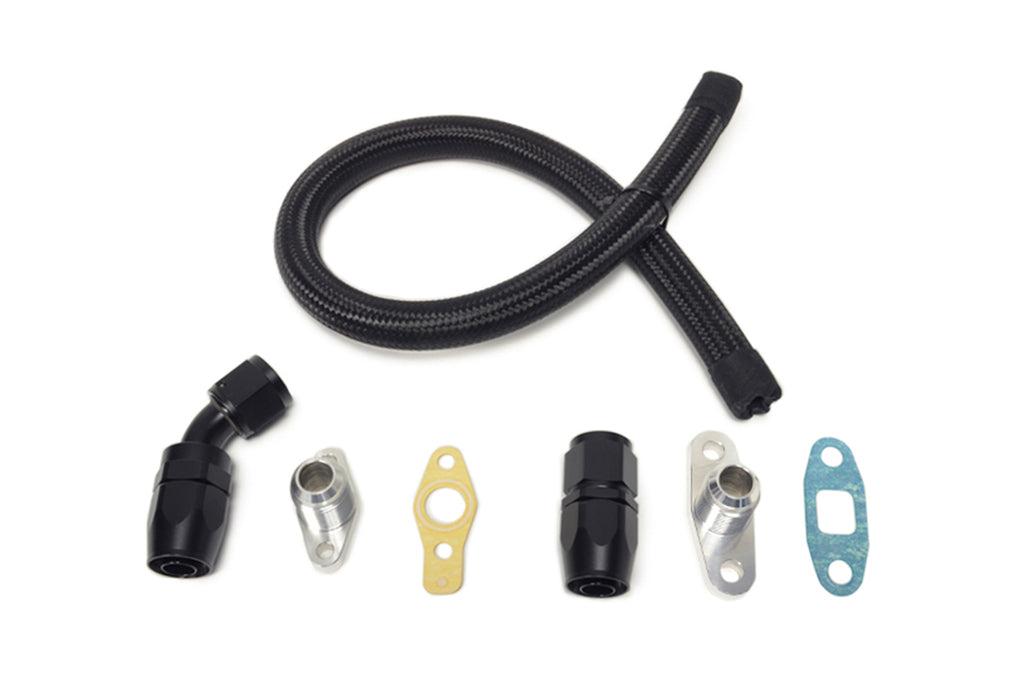

Includes:
(1) STM Mitsu-Series -10AN Oil Drain Flange (Bolts to Oil Pan)
(1) STM G-Series -10AN Oil Drain Flange (Bolts to Turbo)
(1) 2 Feet of -10 Braided Nylon Hose
(1) Straight -10AN Swivel Fitting
(1) 45° -10AN Swivel Fitting
(1) G-Series Oil Gasket
(1) OEM Mitsubishi Oil Drain Gasket (MR258477)
