STM 6-Bolt DSM Standard Engine Oil Cooler Kit *Currently Unavailable*

The STM Engine Oil Cooler Kit for 6-bolt DSM is designed around your needs as you can cut the length of line to your specific liking for a perfectly custom set-up. Utilizing the well known and trusted B&M Coolers, combined with high quality Vibrant braided nylon line and black aluminum fittings, this kit has everything you'll need to get this done the way you want.

Designed to bolt up to the factory 1990 DSM oil filter housing. If you have an air cooled housing in your DSM, it will work for you. It will take a little bit of DSM DIY work, but this setup works perfectly and we have sold a ton of them with great results!

*Currently Unavailable*
The 70273 B&M cooler was discontinued in February 2023 and we finally ran out of stock in June 2023. We will be working on redesigning all the STM oil cooler kits. Stay Tuned!

Vehicle Fitment:
6-Bolt 4G63 1G DSM
1990-1992.5 Eclipse GST/GSX
1990-1992.5 Talon TSi
1990-1992.5 Laser RS
• Requires custom mounting bracket
• Required air-cooled oil filter housing

Important Notes:
The fittings threading into the oil cooler are pipe thread. Over tightening pipe thread will cause things to break. If you are not familiar with it, please seek professional installation.

Features:
• B&M Oil Cooler
• Nylon-Covered Stainless Braided Hose Won't Scratch Finishes
• Black Anodized Aluminum Fittings
• Low-Profile 90° Fittings for the Oil Cooler
• Genuine Mitsubishi Gaskets

B&M Oil Cooler Dimensions (Small):
11' Wide
5.75' Tall
1.5' Thick
Part Number 70273

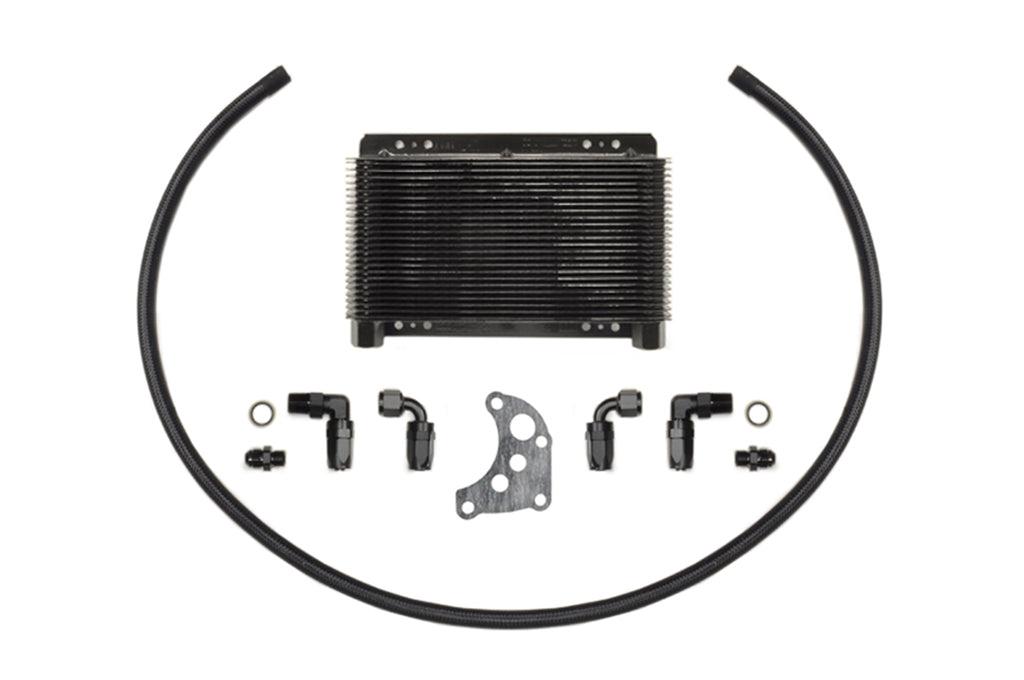

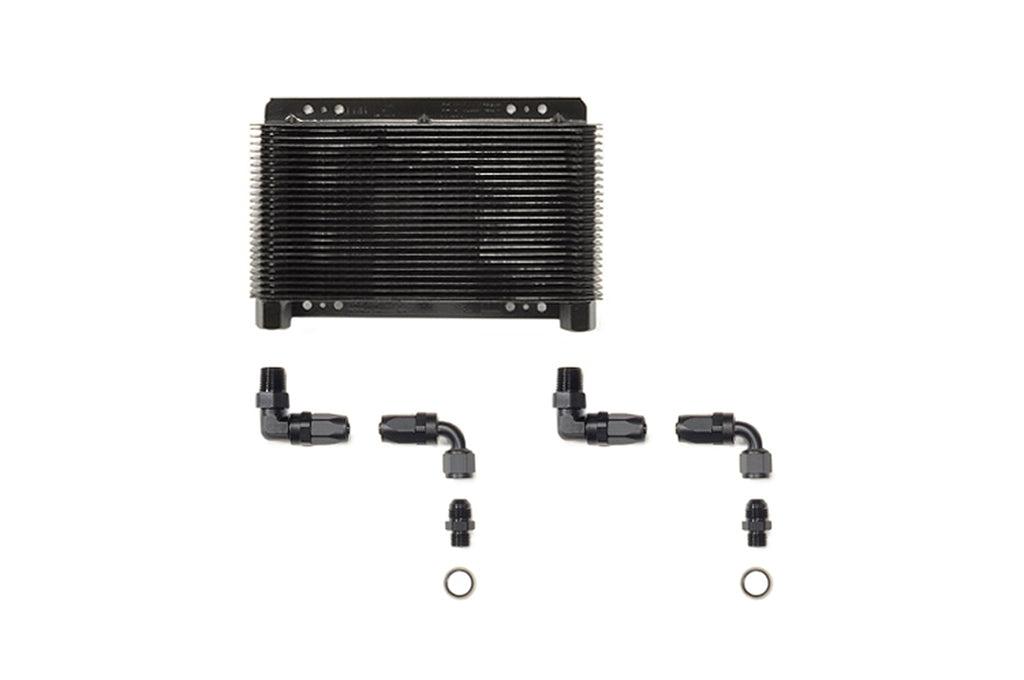

Includes:
(1) 5-Feet -8AN Nylon Hose
(1) B&M Oil Cooler

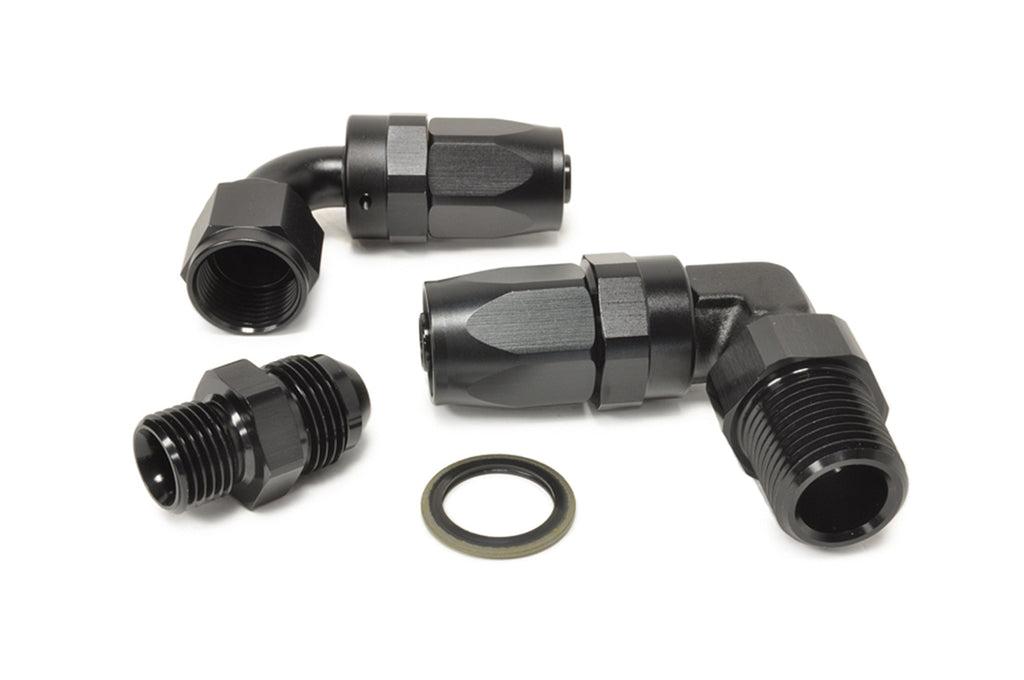

(2) Vibrant -8AN 90° Swivel Fittings
(2) Vibrant -8AN to 1/2' NPT 90° Fittings
(2) Vibrant -8AN to M16 Fittings
(2) OEM Mitsubishi Washers
(1) OEM Mitsubishi 6-Bolt Oil filter Housing Gasket (MD149370)
