Sheridan Water Temp Sensor Connector for 2G DSM Evo 4-9 3000GT (1P250SENDER-B)

This Sheridan Engineering Type-B sender can be used with the 2G DSM, Evo 4/5/6/7/8/9 and 3000GT single-wire coolant sensor ().

The Sheridan Engineering 1P 250 sender connector is an amp connector, the OEM supplier. It is a .250 wide receptacle connector. It is commonly used to attach to 1 wire gauge senders and switches. What makes it different is that the locking mechanism is on the terminal itself and not on the plastic housing. The plastic housing has the release mechanism built in.

Many people replace these with generic .250 receptacles, which work but do not have any sort of locking mechanism to lock it onto the sensor. These correct parts will allow you to replace the connector, terminal, and wire with new OEM parts and keep the terminal latching intact.

Vehicle Fitment:
1996-2006 Evolution IV V VI VII VIII IX
1995-1999 Eclipse GST/GSX
1995-1998 Talon TSi
1991-1999 3000GT VR-4
1991-1996 Stealth R/T

Purchase Includes:
(1) Connector
(1) Terminal

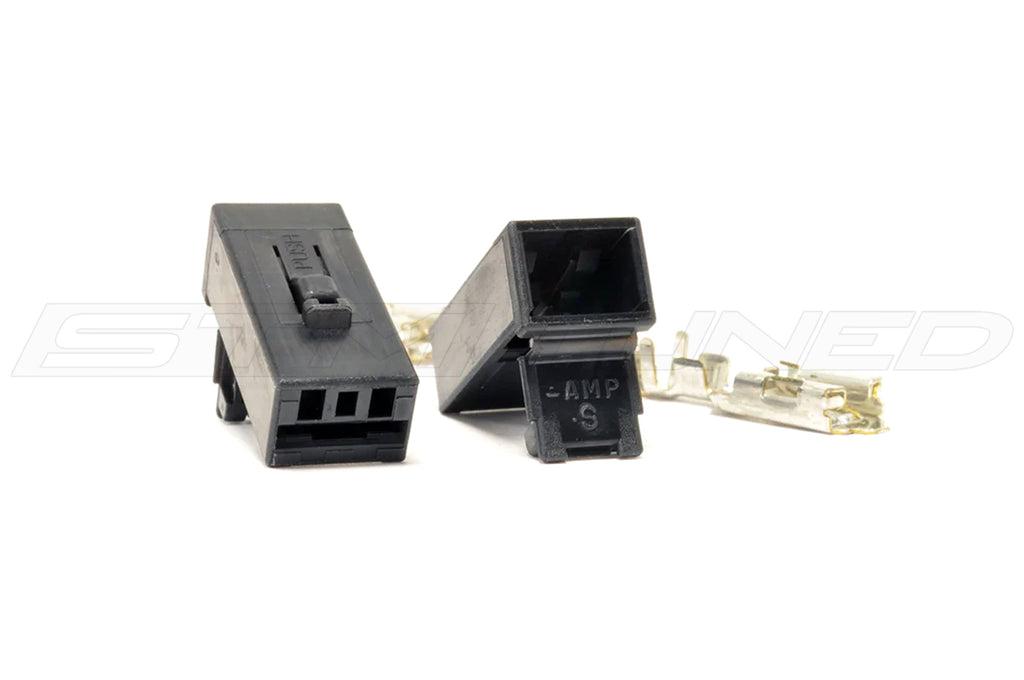

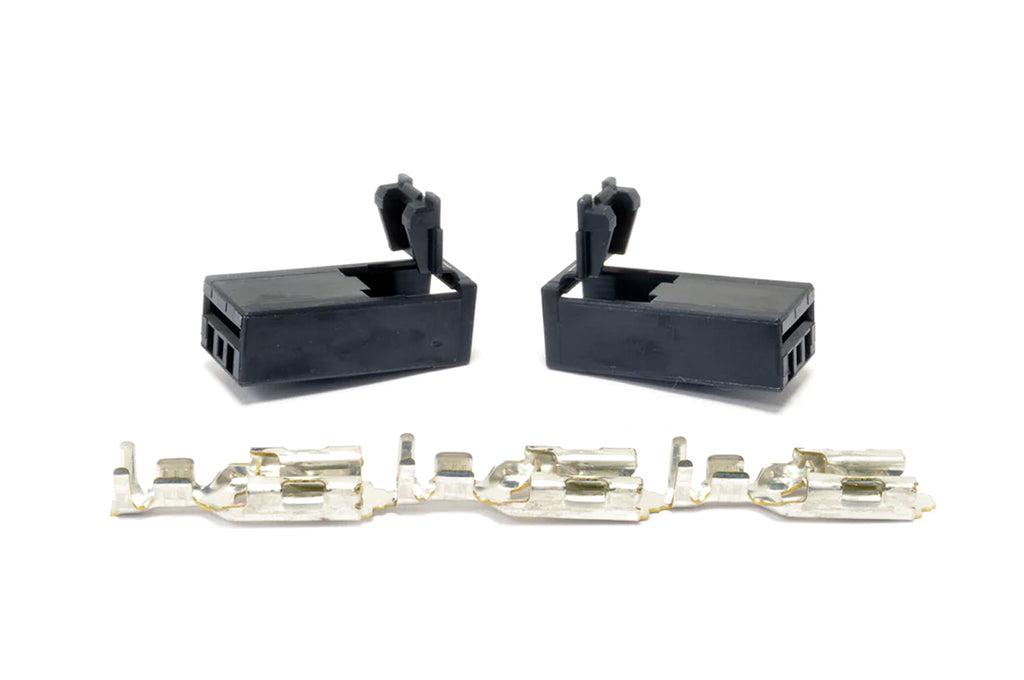

Pictured:
Exact product is pictured, Sheridan 1P250SENDER.

Discounts:
We are sorry, discounts are not available with Sheridan products.
