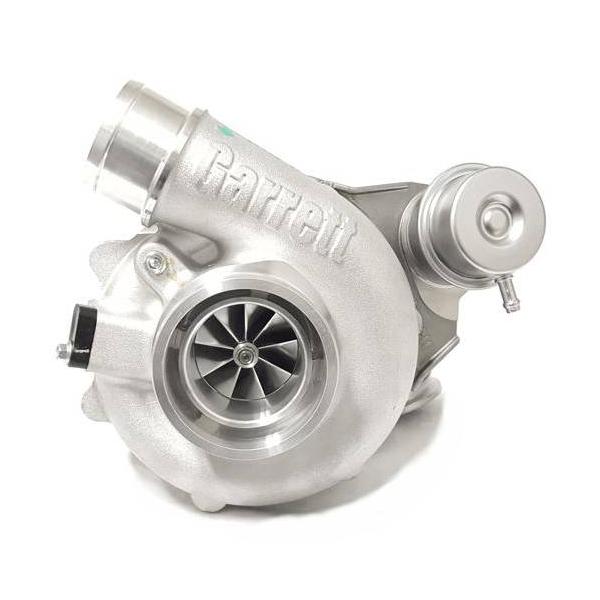

Reverse Rotation Garrett G25-550 G Series - .72AR V-Band IWG

Garrett G25-550 G Series Reverse Rotation .72AR V-Band/V-Band IWG Dual Ball Bearing Turbocharger - 877895-5007S

'Spools like a 28, Powers like a 30'
In Stock, Shipping Now!

PRODUCT SUMMARY:
Garrett Reverse Rotation G25-550 Turbo, V-Band Inlet, Internally Wastegated, and V-Band Outlet Turbine Housing, .72 A/R. Garrett # 871390-5002S / 877895-5007S

Horse Power Rating: 550 HP

PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN

Alternate Garrett Product Code(s): 877895-5007S, 871399-5001S, 740902-0078

THE ALL NEW GARRETT G SERIES TURBOCHARGERS
Garrett G Series Highlights:

EVOLUTIONARY ULTRA HIGH FLOW G-Series Turbine Wheel
Advanced aerodynamics G Series Compressor Wheel
Compact Standard Package
Standard & Reverse rotation (spins counterclockwise) options
The Results: +20% More Horsepower & Quicker Spool!!!

Introducing the next evolution in performance, the Garrett G Series Turbochargers. The Garrett G Series combines the latest performance turbocharger technology and advanced aerodynamic designs. The result, is the highest horsepower small frame turbocharger!!!

Ultra High Flow G-Series Compressor Wheel:

Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings. Forged fully-machined compressor wheel and new aerodynamics design increases maximum horsepower output, up to +30%. The G-Series aero design not only increases peak flow but higher power levels within a large operating RPM range.

Garrett G Series Turbine Wheel:
By incorporating the latest and advanced ULTA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimaginable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius, +200 degrees Celsius over inconel turbine wheels.

Garrett G Series Additional Features:

Includes oil feed and coolant fittings
Reduced size bearing cartridge and twin piston rings on both sides of the wheel assembly for increased durability and reduction in oil leakage.
Pre-tapped speed sensor port and boost pressure signal port.
NEW compact design bearing housing and CHRA to Turbine Housing V-band Connection.
Garrett G25-550 G Series Reverse Rotation .72AR Dual Ball Bearing TurbochargerNEW and improved oiling and cooling system.
