PTE 6776 MFS Journal Bearing Turbo (755 HP)
832.99€
Sold By: Baltic Turbo Motors
SKU: PTE-31502008109
Categories: Performance Parts

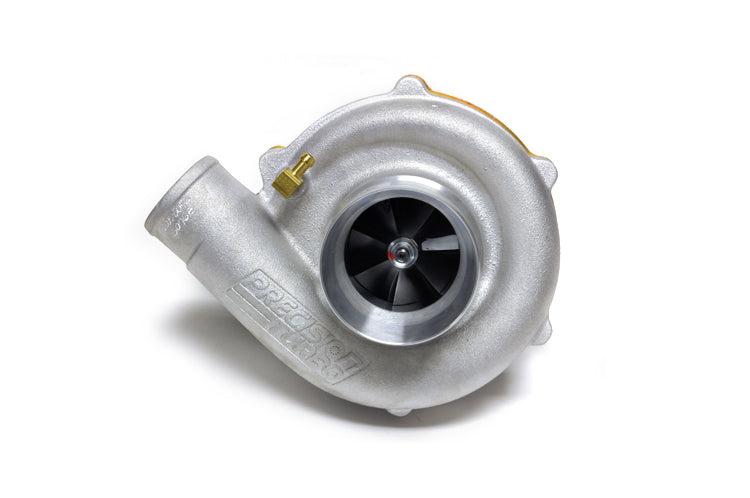

The PTE 6776 Turbo is rated for 755 HP with a journal bearing CHRA. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios..
Features:
• MFS (Machined From Solid) 66.55mm Inducer Compressor Wheel
• 64.56mm Exducer Turbine Wheel
• 360° Journal Bearing System
• Rated for 755 HP
• PTE 'Entry Level Turbo'
Compressor Cover Options:
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet)
• H Cover Ported (4.0' Inlet / 3.0' Outlet)
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
PTE 6776 Turbo Options with E Cover (3.0' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 31502008109 | E Cover | T3 Inlet | 4-Bolt Outlet | .82 |
| 31502008199 | E Cover | T4 Inlet | V-Band Outlet | .58 |
| 31502008209 | E Cover | T4 Inlet | V-Band Outlet | .68 |
| 31502008219 | E Cover | T4 Inlet | V-Band Outlet | .81 |
| 31502008229 | E Cover | T4 Inlet | V-Band Outlet | .96 |
PTE 6776 Turbo Options with SP Cover (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 31504008089 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .63 |
| 31504008109 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 31504008179 | S Cover Ported | T3 Inlet | 5-Bolt Outlet | .63 |
| 31504008189 | S Cover Ported | T3 Inlet | 5-Bolt Outlet with Hole | .63 |
| 31504008199 | S Cover Ported | T4 Inlet | V-Band Outlet | .58 |
| 31504008209 | S Cover Ported | T4 Inlet | V-Band Outlet | .68 |
| 31504008219 | S Cover Ported | T4 Inlet | V-Band Outlet | .81 |
| 31504008229 | S Cover Ported | T4 Inlet | V-Band Outlet | .96 |
PTE 6776 Turbo Options with HP Cover (4.0' Inlet / 3.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 31507008109 | H Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 31507008219 | H Cover Ported | T4 Inlet | V-Band Outlet | .81 |
| 31507008229 | H Cover Ported | T4 Inlet | V-Band Outlet | .96 |
