PTE 6176 MFS Journal Bearing Turbo (670 HP)
764.99€
Sold By: Baltic Turbo Motors
SKU: PTE-31002008089
Categories: Performance Parts

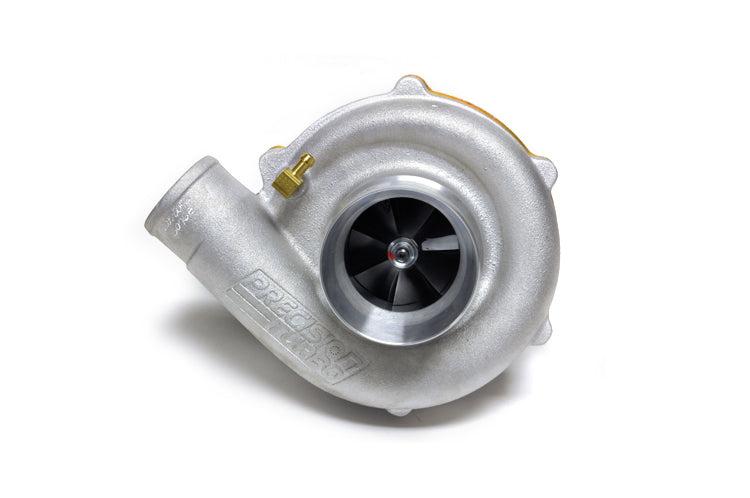

The PTE 6176 Turbo is rated for 670 HP with a journal bearing CHRA. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.
Features:
• MFS (Machined From Solid) 61.37mm Inducer Compressor Wheel
• 64.56mm Exducer Turbine Wheel
• 360° Journal Bearing System
• Rated for 670 HP
• PTE 'Entry Level Turbo'
Compressor Cover Options:
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet)
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
PTE 6176 Turbo Options with E Cover (3.0' Inlet / 2.0' Outlet):
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 31002008089 | E Cover | T3 Inlet | 4-Bolt Outlet | .63 |
| 31002008109 | E Cover | T3 Inlet | 4-Bolt Outlet | .82 |
| 31002008179 | E Cover | T3 Inlet | 5-Bolt Outlet | .63 |
| 31002008189 | E Cover | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .63 |
| 31002008199 | E Cover | T4 Inlet | V-Band Outlet | .58 |
| 31002008209 | E Cover | T4 Inlet | V-Band Outlet | .68 |
| 31002008219 | E Cover | T4 Inlet | V-Band Outlet | .81 |
| 31002008229 | E Cover | T4 Inlet | V-Band Outlet | .96 |
PTE 6176 Turbo Options with SP Cover (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 31004008089 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .63 |
| 31004008109 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 31004008189 | S Cover Ported | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .63 |
| 31004008209 | S Cover Ported | T4 Inlet | V-Band Outlet | .68 |
| 31004008219 | S Cover Ported | T4 Inlet | V-Band Outlet | .81 |
| 31004008229 | S Cover Ported | T4 Inlet | V-Band Outlet | .96 |
