PTE 7675 Gen1 CEA Journal Bearing Turbo (1200 HP)
1,495.99€
Sold By: Baltic Turbo Motors
SKU: PTE-12207012219
Categories: Performance Parts

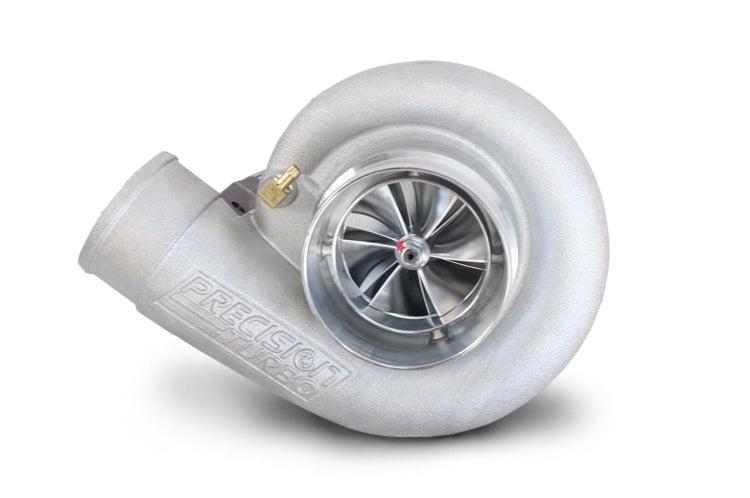

The PTE PT7675 Gen1 Turbo is rated for 1200 HP with a journal bearing CHRA. This is the 'Gen1' version with the 6-blade CEA compressor wheel. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.
Features:
• Journal Bearing (JB) Hydrodynamic 360° Thrust Bearing System
• Gen 1 6-Blade CEA Compressor Wheel
• 76mm Inducer Compressor Wheel
• 75mm, 84 Trim CEA Turbine Wheel
• Rated for 1200 HP
• PTE 'Street and Race Turbo'
Compressor Cover Options:
• H Cover (4.0' Inlet / 2.5' Outlet)
• HP Cover (H Ported) (4.0' Inlet / 2.5' Outlet)
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
PTE 7675 Gen1 Journal Bearing Options
H Cover (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 12206012219 *Discontinued* | H Cover | T4 Inlet | V-Band Outlet | .81 |
| 12206012229 *Discontinued* | H Cover | T4 Inlet | V-Band Outlet | .96 |
PTE 7675 Gen1 Journal Bearing Options
HP Cover Ported (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 12207012219 | HP Cover | T4 Inlet | V-Band Outlet | .81 |
| 12207012229 | HP Cover | T4 Inlet | V-Band Outlet | .96 |
| 12207012289 | HP Cover | V-Band T4 Inlet | V-Band T4 Outlet | .81 |
| 12207012299 | HP Cover | V-Band T4 Inlet | V-Band T4 Outlet | .96 |
