PTE 7275 Gen1 CEA Journal Bearing Turbo (1015 HP)
1,487.49€
Sold By: Baltic Turbo Motors
SKU: PTE-11907012219
Categories: Performance Parts

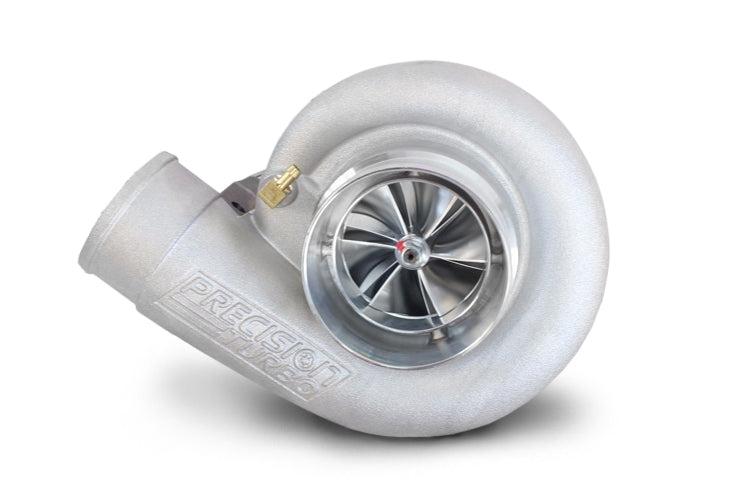

The PTE PT7275 Gen1 Turbo is rated for 1015 HP with a journal bearing CHRA. This is the 'Gen1' version with the 6-blade CEA compressor wheel. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.
Features:
• Journal Bearing (JB) Hydrodynamic 360° Thrust Bearing System
• Gen 1 6-Blade CEA Compressor Wheel
• 72mm Inducer Compressor Wheel
• 75mm CEA Turbine Wheel
• Rated for 1015 HP
• PTE 'Street and Race Turbo'
Compressor Cover Options:
• H Cover (4.0' Inlet / 2.5' Outlet)
• HP Cover (H Ported) (4.0' Inlet / 2.5' Outlet)
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
PTE 7275 Gen1 Journal Bearing Options
H Cover (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 11906012219 *Discontinued* | H Cover | T4 Inlet | V-Band Outlet | .81 |
| 11906012229 *Discontinued* | H Cover | T4 Inlet | V-Band Outlet | .96 |
PTE 7275 Gen1 Journal Bearing Options
HP Cover Ported (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 11907012219 | HP Cover Ported | T4 Inlet | V-Band Outlet | .81 |
| 11907012229 | HP Cover Ported | T4 Inlet | V-Band Outlet | .96 |
| 11907012289 | HP Cover Ported | V-Band T4 Inlet | V-Band T4 Outlet | .81 |
| 11907012299 | HP Cover Ported | V-Band T4 Inlet | V-Band T4 Outlet | .96 |
