PTE 6766 Gen1 CEA Ball Bearing Turbo (935 HP)
1,954.99€
Sold By: Baltic Turbo Motors
SKU: PTE-11502210089
Categories: Performance Parts

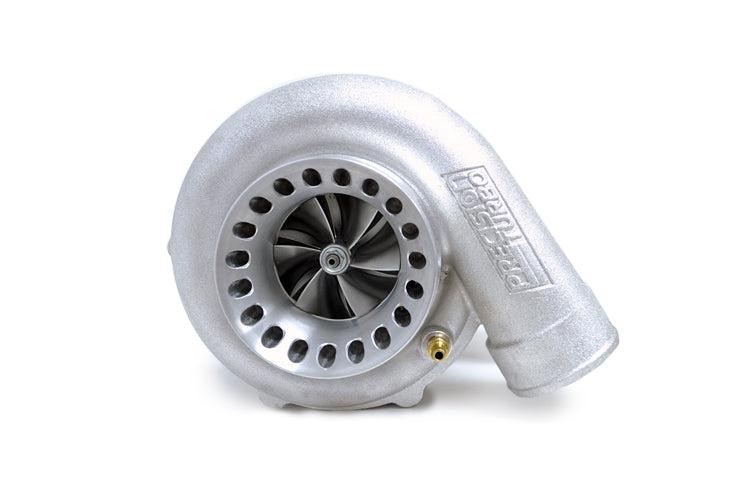

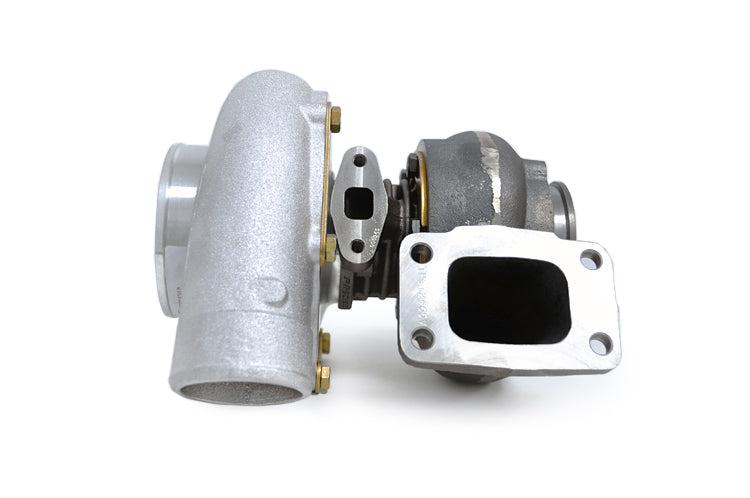

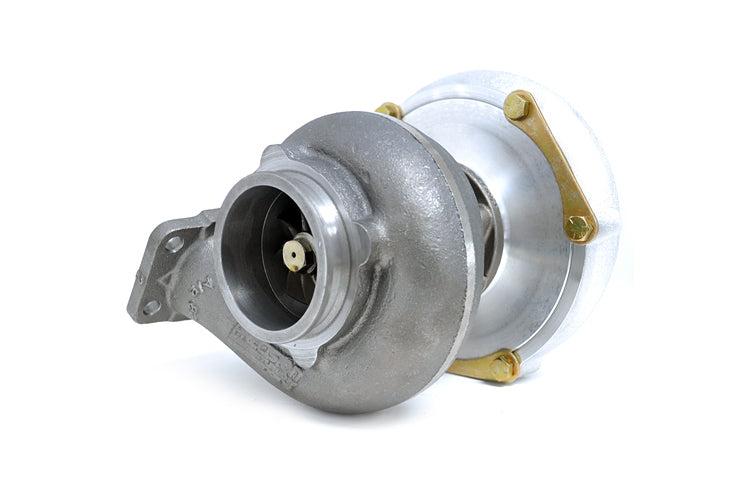

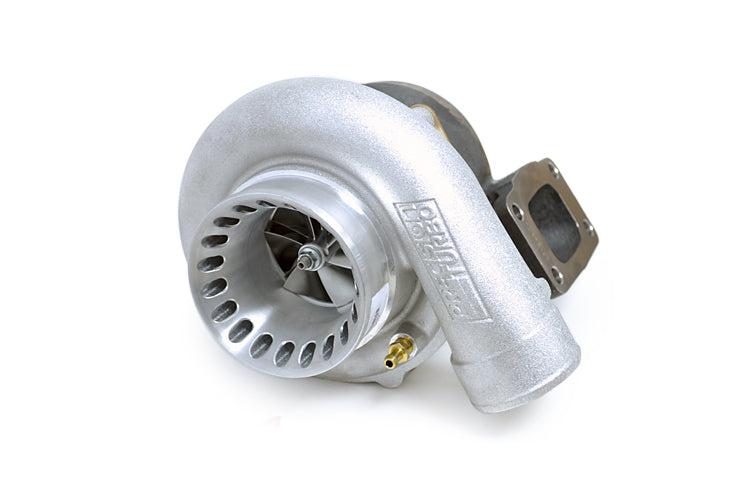

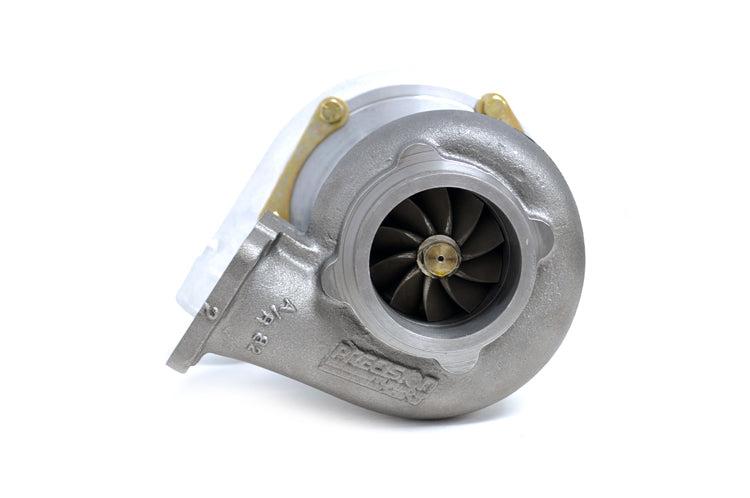

The Precision PTE PT6766 Gen1 Turbo is rated for 935 HP with a ball bearing CHRA. This is the 'Gen1' version with the 6-blade CEA compressor wheel. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios when ordering the 6766 turbo.
Features:
• Ball Bearing (BB) (Air-Cooled, Dual Ceramic)
• Gen 1 6-Blade CEA Compressor Wheel
• 67mm Inducer Compressor Wheel
• 66mm, 76 Trim CEA Turbine Wheel
• Rated for 935 HP
• PTE 'Street and Race Turbo'
Compressor Cover Options:
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet)
• H Cover Ported (4.0' Inlet / 2.5' Outlet)
Turbine Housing Options:
• T3 with 4-Bolt (2.5') Outlet
• T3 with 5-Bolt Outlet (with or without wastegate hole)
• T3 with 3' OD V-Band Outlet
• V-Band T3 Inlet with V-Band Outlet
• T4 or T4 Divided with 3 5/8' OD V-Band Outlet
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
PTE 6766 Gen1 Ball Bearing Options
E Cover (3.0' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 11502210089 | E Cover | T3 Inlet | 4-Bolt Outlet | .63 |
| 11502210109 | E Cover | T3 Inlet | 4-Bolt Outlet | .82 |
| 11502210179 | E Cover | T3 Inlet | 5-Bolt Outlet | .63 |
| 11502210189 | E Cover | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .63 |
| 11502210099 | E Cover | T3 Inlet | V-Band Outlet | .63 |
| 11502210119 | E Cover | T3 Inlet | V-Band Outlet | .82 |
| 11502210139 | E Cover | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 11502210149 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 11502210799 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | 1.05 |
| 11502210199 | E Cover | T4 Inlet | V-Band Outlet | .58 |
| 11502210209 | E Cover | T4 Inlet | V-Band Outlet | .68 |
| 11502210219 | E Cover | T4 Inlet | V-Band Outlet | .81 |
| 11502210229 | E Cover | T4 Inlet | V-Band Outlet | .96 |
| 11502210239 | E Cover | T4 Divided Inlet | V-Band Outlet | .84 |
| 11502210249 | E Cover | T4 Divided Inlet | V-Band Outlet | 1.00 |
| 11502210259 | E Cover | T4 Divided Inlet | V-Band Outlet | 1.15 |
| 11502210269 | E Cover | T4 Divided Inlet | V-Band Outlet | 1.32 |
PTE 6766 Gen1 Ball Bearing Options
SP Cover (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 11504210089 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .63 |
| 11504210109 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 11504210179 | S Cover Ported | T3 Inlet | 5-Bolt Outlet | .63 |
| 11504210189 | S Cover Ported | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .63 |
| 11504210099 | S Cover Ported | T3 Inlet | V-Band Outlet | .63 |
| 11504210119 | S Cover Ported | T3 Inlet | V-Band Outlet | .82 |
| 11504210139 | S Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 11504210149 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 11504210799 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | 1.05 |
| 11504210199 | S Cover Ported | T4 Inlet | V-Band Outlet | .58 |
| 11504210209 | S Cover Ported | T4 Inlet | V-Band Outlet | .68 |
| 11504210219 | S Cover Ported | T4 Inlet | V-Band Outlet | .81 |
| 11504210229 | S Cover Ported | T4 Inlet | V-Band Outlet | .96 |
| 11504210239 | S Cover Ported | T4 Divided Inlet | V-Band Outlet | .84 |
| 11504210249 | S Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.00 |
| 11504210259 | S Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.15 |
| 11504210269 | S Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.32 |
PTE 6766 Gen1 Ball Bearing Options
HP Cover (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 11507210089 | H Cover Ported | T3 Inlet | 4-Bolt Outlet | .63 |
| 11507210109 | H Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 11507210179 | H Cover Ported | T3 Inlet | 5-Bolt Outlet | .63 |
| 11507210189 | H Cover Ported | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .63 |
| 11507210099 | H Cover Ported | T3 Inlet | V-Band Outlet | .63 |
| 11507210119 | H Cover Ported | T3 Inlet | V-Band Outlet | .82 |
| 11507210139 | H Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 11507210149 | H Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 11507210199 | H Cover Ported | T4 Inlet | V-Band Outlet | .58 |
| 11507210209 | H Cover Ported | T4 Inlet | V-Band Outlet | .68 |
| 11507210219 | H Cover Ported | T4 Inlet | V-Band Outlet | .81 |
| 11507210229 | H Cover Ported | T4 Inlet | V-Band Outlet | .96 |
| 11507210239 | H Cover Ported | T4 Divided Inlet | V-Band Outlet | .84 |
| 11507210249 | H Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.00 |
| 11507210259 | H Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.15 |
| 11507210269 | H Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.32 |
