PTE 6766 Gen1 CEA Journal Bearing Turbo (935 HP)
1,172.99€
Sold By: Baltic Turbo Motors
SKU: PTE-11502010089
Categories: Performance Parts

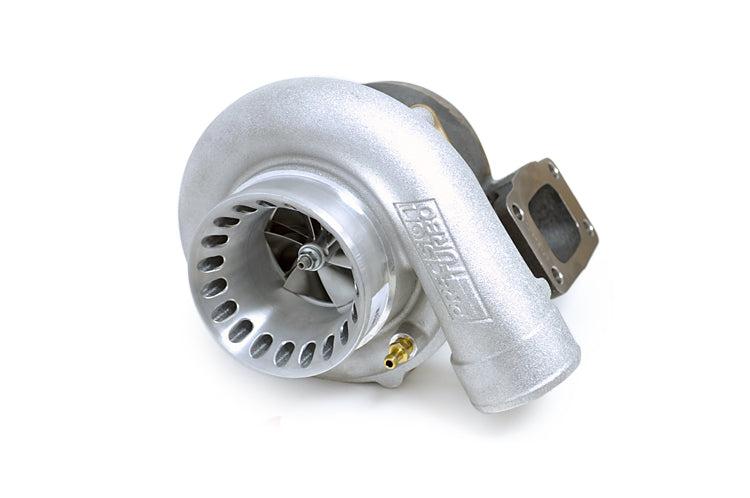

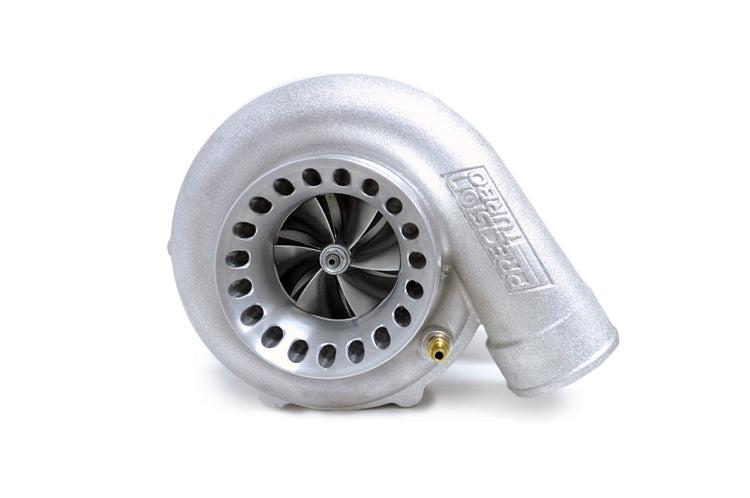

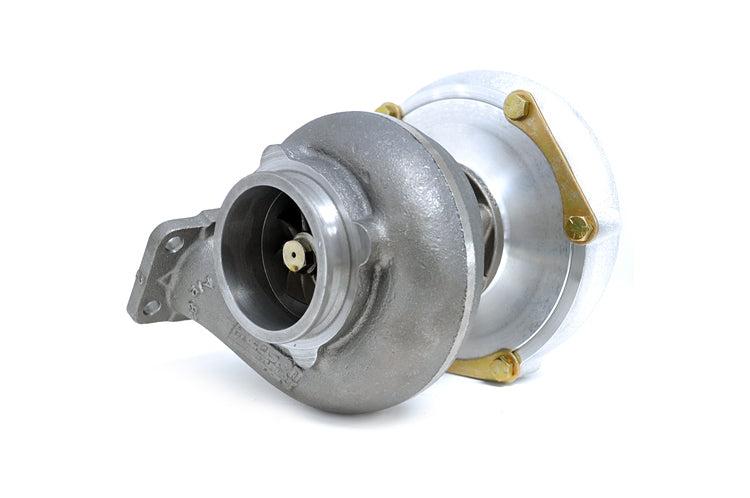

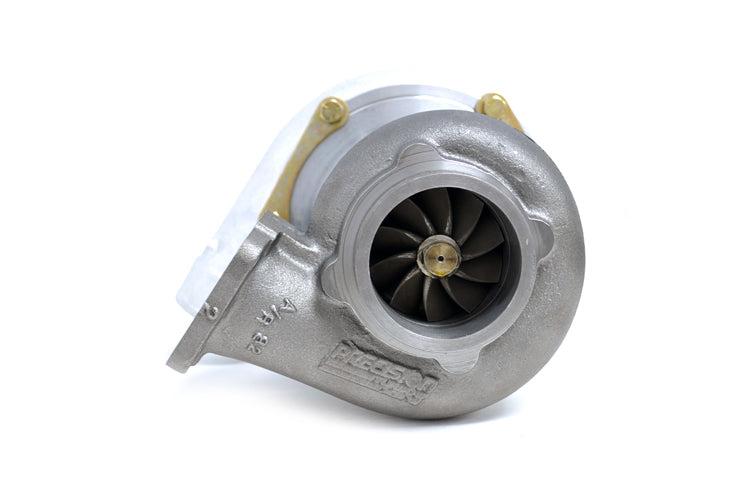

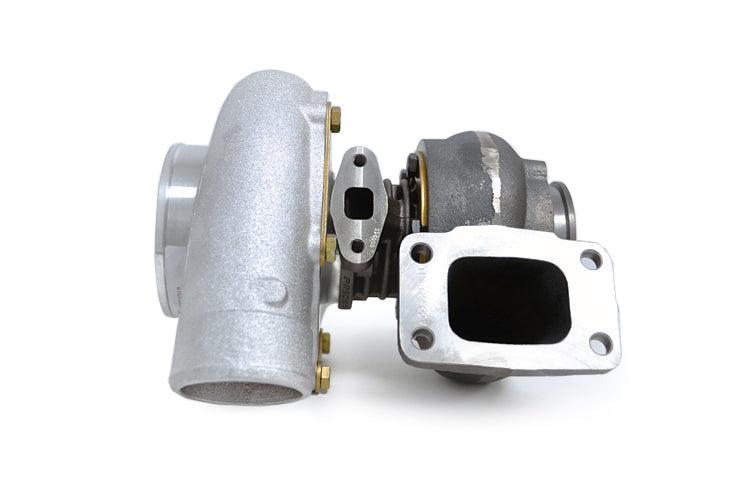

The PTE PT6766 Gen1 Turbo is rated for 935 HP with a journal bearing CHRA. This is the 'Gen1' version with the 6-blade CEA compressor wheel. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.
Features:
• Journal Bearing (JB) Hydrodynamic 360° Thrust Bearing System
• Gen 1 6-Blade CEA Compressor Wheel
• 67mm Inducer Compressor Wheel
• 66mm, 76 Trim CEA Turbine Wheel
• Rated for 935 HP
• PTE 'Street and Race Turbo'
Compressor Cover Options:
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet)
• H Cover Ported (4.0' Inlet / 2.5' Outlet)
Turbine Housing Options:
• T3 with 4-Bolt (2.5') Outlet
• T3 with 3' OD V-Band Outlet
• V-Band T3 Inlet with V-Band Outlet
• T4 or T4 Divided with 3 5/8' OD V-Band Outlet
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
PTE 6766 Gen1 Journal Bearing Options
E Cover (3.0' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 11502010089 | E Cover | T3 Inlet | 4-Bolt Outlet | .63 |
| 11502010109 | E Cover | T3 Inlet | 4-Bolt Outlet | .82 |
| 11502010099 | E Cover | T3 Inlet | V-Band Outlet | .63 |
| 11502010119 | E Cover | T3 Inlet | V-Band Outlet | .82 |
| 11502010139 | E Cover | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 11502010149 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 11502010199 | E Cover | T4 Inlet | V-Band Outlet | .58 |
| 11502010209 | E Cover | T4 Inlet | V-Band Outlet | .68 |
| 11502010219 | E Cover | T4 Inlet | V-Band Outlet | .81 |
| 11502010229 | E Cover | T4 Inlet | V-Band Outlet | .96 |
| 11502010239 | E Cover | T4 Divided Inlet | V-Band Outlet | .84 |
| 11502010249 | E Cover | T4 Divided Inlet | V-Band Outlet | 1.00 |
| 11502010259 | E Cover | T4 Divided Inlet | V-Band Outlet | 1.15 |
| 11502010269 | E Cover | T4 Divided Inlet | V-Band Outlet | 1.32 |
PTE 6766 Gen1 Journal Bearing Options
SP Cover (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 11504010089 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .63 |
| 11504010109 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 11504010099 | S Cover Ported | T3 Inlet | V-Band Outlet | .63 |
| 11504010119 | S Cover Ported | T3 Inlet | V-Band Outlet | .82 |
| 11504010139 | S Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 11504010149 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 11504010199 | S Cover Ported | T4 Inlet | V-Band Outlet | .58 |
| 11504010209 | S Cover Ported | T4 Inlet | V-Band Outlet | .68 |
| 11504010219 | S Cover Ported | T4 Inlet | V-Band Outlet | .81 |
| 11504010229 | S Cover Ported | T4 Inlet | V-Band Outlet | .96 |
| 11504010239 | S Cover Ported | T4 Divided Inlet | V-Band Outlet | .84 |
| 11504010249 | S Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.00 |
| 11504010259 | S Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.15 |
| 11504010269 | S Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.32 |
PTE 6766 Gen1 Journal Bearing Options
HP Cover (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 11507010089 | H Cover Ported | T3 Inlet | 4-Bolt Outlet | .63 |
| 11507010109 | H Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 11507010099 | H Cover Ported | T3 Inlet | V-Band Outlet | .63 |
| 11507010119 | H Cover Ported | T3 Inlet | V-Band Outlet | .82 |
| 11507010139 | H Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 11507010149 | H Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 11507010199 | H Cover Ported | T4 Inlet | V-Band Outlet | .58 |
| 11507010209 | H Cover Ported | T4 Inlet | V-Band Outlet | .68 |
| 11507010219 | H Cover Ported | T4 Inlet | V-Band Outlet | .81 |
| 11507010229 | H Cover Ported | T4 Inlet | V-Band Outlet | .96 |
| 11507010239 | H Cover Ported | T4 Divided Inlet | V-Band Outlet | .84 |
| 11507010249 | H Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.00 |
| 11507010259 | H Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.15 |
| 11507010269 | H Cover Ported | T4 Divided Inlet | V-Band Outlet | 1.32 |
