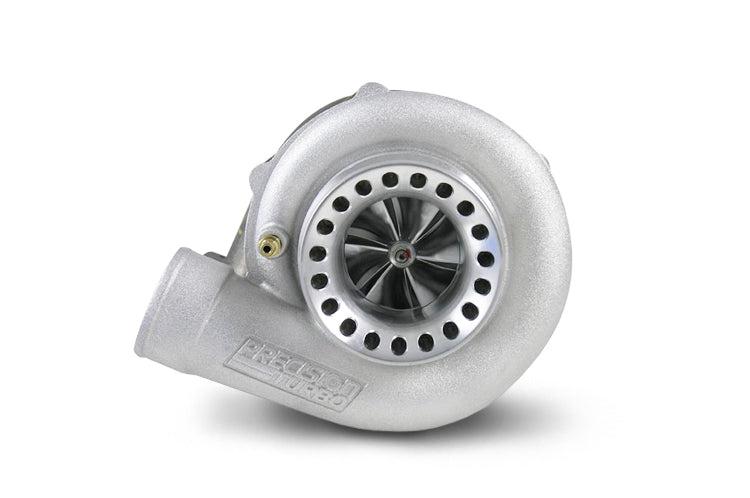

PTE 5862 Gen1 CEA Ball Bearing Turbo (640 HP)
1,487.49€
Sold By: Baltic Turbo Motors
SKU: PTE-10701207109
Categories: Performance Parts
The PTE PT5862 Gen1 Turbo is rated for 640 HP with a ball bearing CHRA. This is the 'Gen1' version with the 6-blade CEA compressor wheel. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.
Features:
• Ball Bearing (BB) (Air-Cooled, Dual Ceramic)
• Gen 1 6-Blade CEA Compressor Wheel
• 58mm Inducer Compressor Wheel
• 62mm, 76 Trim CEA Turbine Wheel
• Rated for 640 HP
• PTE 'Street and Race Turbo'
Compressor Cover:
• B Cover (2.8' Inlet / 2.0' Outlet)
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet)
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
PTE 5862 Gen1 Ball Bearing Options
B Cover (2.8' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10701207109 | B Cover | T3 Inlet | 4-Bolt Outlet | .82 |
| 10701207179 | B Cover | T3 Inlet | 5-Bolt Outlet | .63 |
| 10701207139 | B Cover | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10701207239 | B Cover | T4 Divided Inlet | V-Band Outlet | .84 |
PTE 5862 Gen1 Ball Bearing Options
E Cover (3.0' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10702207089 | E Cover | T3 Inlet | 4-Bolt Outlet | .63 |
| 10702207109 | E Cover | T3 Inlet | 4-Bolt Outlet | .82 |
| 10702207099 | E Cover | T3 Inlet | V-Band Outlet | .63 |
| 10702207109 | E Cover | T3 Inlet | V-Band Outlet | .82 |
| 10702207129 | E Cover | V-Band T3 Inlet | V-Band T3 Outlet | .64 |
| 10702207279 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .64 |
| 10702207139 | E Cover | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10702207149 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 10702207199 | E Cover | T4 Inlet | V-Band Outlet | .58 |
PTE 5862 Gen1 Ball Bearing Options
SP Cover (3.0' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10704207089 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .63 |
| 10704207109 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 10704207099 | S Cover Ported | T3 Inlet | V-Band Outlet | .63 |
| 10704207119 | S Cover Ported | T3 Inlet | V-Band Outlet | .82 |
| 10704207129 | S Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .64 |
| 10704207249 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .64 |
| 10704207139 | S Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10704207149 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 10704207199 | S Cover Ported | T4 Inlet | V-Band Outlet | .58 |
| 10704207209 | S Cover Ported | T4 Inlet | V-Band Outlet | .68 |
| 10704207239 | S Cover Ported | T4 Divided Inlet | V-Band Outlet | .84 |
