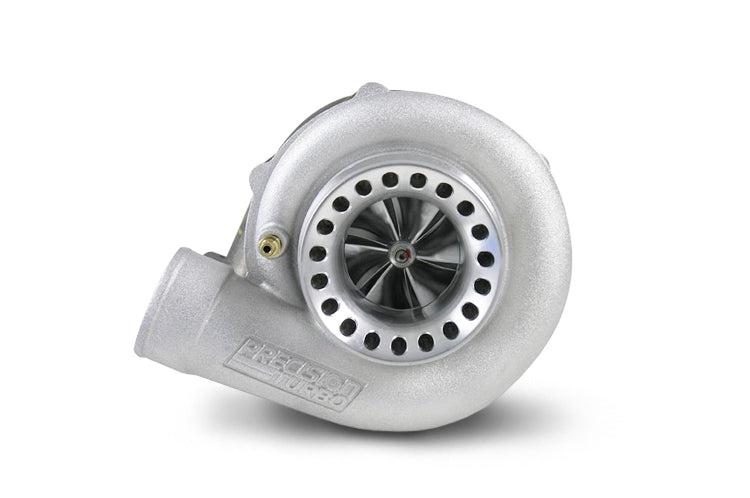

PTE 5858 Gen1 CEA Ball Bearing Turbo (620 HP)
1,487.49€
Sold By: Baltic Turbo Motors
The PTE PT5858 Gen1 Turbo is rated for 620 HP with a ball bearing CHRA. This is the 'Gen1' version w
SKU: PTE-10701206069
Categories: Performance Parts
Share:
The PTE PT5858 Gen1 Turbo is rated for 620 HP with a ball bearing CHRA. This is the 'Gen1' version with the 6-blade CEA compressor wheel. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.
Features:
• Ball Bearing (BB) (Air-Cooled, Dual Ceramic)
• Gen 1 6-Blade CEA Compressor Wheel
• 58mm Inducer Compressor Wheel
• 58mm, 76 Trim CEA Turbine Wheel
• Rated for 620 HP
• PTE 'Street and Race Turbo'
Compressor Cover:
• B Cover (2.8' Inlet / 2.0' Outlet)
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet)
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
See more about the different PTE housing options, compressor covers and PTE videos to help you get your turbo built correctly!
PTE 5858 Gen1 Ball Bearing Options
PTE 5858 Gen1 Ball Bearing Options
PTE 5858 Gen1 Ball Bearing Options
Features:
• Ball Bearing (BB) (Air-Cooled, Dual Ceramic)
• Gen 1 6-Blade CEA Compressor Wheel
• 58mm Inducer Compressor Wheel
• 58mm, 76 Trim CEA Turbine Wheel
• Rated for 620 HP
• PTE 'Street and Race Turbo'
Compressor Cover:
• B Cover (2.8' Inlet / 2.0' Outlet)
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet)
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
See more about the different PTE housing options, compressor covers and PTE videos to help you get your turbo built correctly!
PTE 5858 Gen1 Ball Bearing Options
B Cover (2.8' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10701206069 | B Cover | T3 Inlet | 4-Bolt Outlet | .48 |
| 10701206099 | B Cover | T3 Inlet | 4-Bolt Outlet | .63 |
| 10701206109 | B Cover | T3 Inlet | 4-Bolt Outlet | .82 |
| 10701206179 | B Cover | T3 Inlet | 5-Bolt Outlet | .63 |
| 10701206189 | B Cover | T3 Inlet | 5-Bolt Outlet With Wastegate Hole | .63 |
| 10701206129 | B Cover | V-Band T3 Inlet | V-Band T3 Outlet | .64 |
| 10701206279 | B Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .64 |
| 10701206139 | B Cover | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10701206149 | B Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
PTE 5858 Gen1 Ball Bearing Options
E Cover (3.0' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10702206069 | E Cover | T3 Inlet | 4-Bolt Outlet | .48 |
| 10702206089 | E Cover | T3 Inlet | 4-Bolt Outlet | .63 |
| 10702206109 | E Cover | T3 Inlet | 4-Bolt Outlet | .82 |
| 10702206169 | E Cover | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .48 |
| 10702206079 | E Cover | T3 Inlet | V-Band Outlet | .48 |
| 10702206099 | E Cover | T3 Inlet | V-Band Outlet | .63 |
| 10702206119 | E Cover | T3 Inlet | V-Band Outlet | .82 |
| 10702206129 | E Cover | V-Band T3 Inlet | V-Band T3 Outlet | .64 |
| 10702206279 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .64 |
| 10702206139 | E Cover | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10702206149 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 10702206199 | E Cover | T4 Inlet | V-Band Outlet | .58 |
PTE 5858 Gen1 Ball Bearing Options
SP Cover (3.0' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10704206069 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .48 |
| 10704206089 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .63 |
| 10704206109 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 10704206179 | S Cover Ported | T3 Inlet | 5-Bolt Outlet | .63 |
| 10704206189 | S Cover Ported | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .63 |
| 10704206079 | S Cover Ported | T3 Inlet | V-Band Outlet | .48 |
| 10704206099 | S Cover Ported | T3 Inlet | V-Band Outlet | .63 |
| 10704206119 | S Cover Ported | T3 Inlet | V-Band Outlet | .82 |
| 10704206129 | S Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .64 |
| 10704206279 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .64 |
| 10704206139 | S Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10704206149 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 10704206199 | S Cover Ported | T4 Inlet | V-Band Outlet | .58 |
