PTE 5862 Gen1 CEA Journal Bearing Turbo (640 HP)
922.24€
Sold By: Baltic Turbo Motors
SKU: PTE-10701007179
Categories: Performance Parts

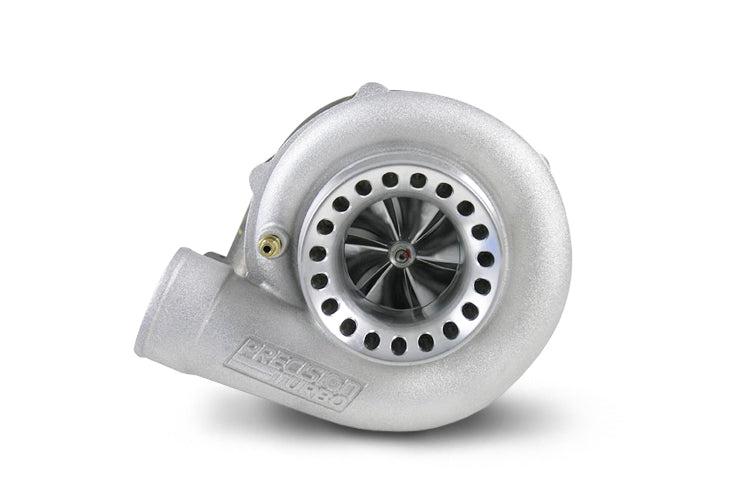

The PTE PT5862 Gen1 Turbo is rated for 640 HP with a journal bearing CHRA. This is the 'Gen1' version with the 6-blade CEA compressor wheel. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.
Features:
• Journal Bearing (JB) Hydrodynamic 360° Thrust Bearing System
• Gen 1 6-Blade CEA Compressor Wheel
• 58mm Inducer Compressor Wheel
• 62mm, 76 Trim CEA Turbine Wheel
• Rated for 640 HP
• PTE 'Street and Race Turbo'
Compressor Cover:
• B Cover (2.8' Inlet / 2.0' Outlet)
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet)
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
PTE 5862 Gen1 Journal Bearing Options
B Cover (2.8' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10701007179 | B Cover | T3 Inlet | 5-Bolt Outlet | .63 |
| 10701007139 | B Cover | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10701007209 | B Cover | T4 Inlet | V-Band Outlet | .68 |
PTE 5862 Gen1 Journal Bearing Options
E Cover (3.0' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10702007089 | E Cover | T3 Inlet | 4-Bolt Outlet | .63 |
| 10702007179 | E Cover | T3 Inlet | 5-Bolt Outlet | .63 |
| 10702007189 | E Cover | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .63 |
| 10702007099 | E Cover | T3 Inlet | V-Band Outlet | .63 |
| 10702007119 | E Cover | T3 Inlet | V-Band Outlet | .82 |
| 10702007129 | E Cover | V-Band T3 Inlet | V-Band T3 Outlet | .64 |
| 10702007279 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .64 |
| 10702007139 | E Cover | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10702007149 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 10702007209 | E Cover | T4 Inlet | V-Band Outlet | .68 |
| 10702007239 | E Cover | T4 Divided Inlet | V-Band Outlet | .84 |
PTE 5862 Gen1 Journal Bearing Options
SP Cover (3.0' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10704007089 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .63 |
| 10704007109 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 10704007189 | S Cover Ported | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .63 |
| 10704007099 | S Cover Ported | T3 Inlet | V-Band Outlet | .63 |
| 10704007119 | S Cover Ported | T3 Inlet | V-Band Outlet | .82 |
| 10704007129 | S Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .64 |
| 10704007279 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .64 |
| 10704007139 | S Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10704007149 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 10704007199 | S Cover Ported | T4 Inlet | V-Band Outlet | .58 |
| 10704007209 | S Cover Ported | T4 Inlet | V-Band Outlet | .68 |
| 10704007239 | S Cover Ported | T4 Divided Inlet | V-Band Outlet | .84 |
