PTE 5558 Gen1 CEA Ball Bearing Turbo (590 HP)

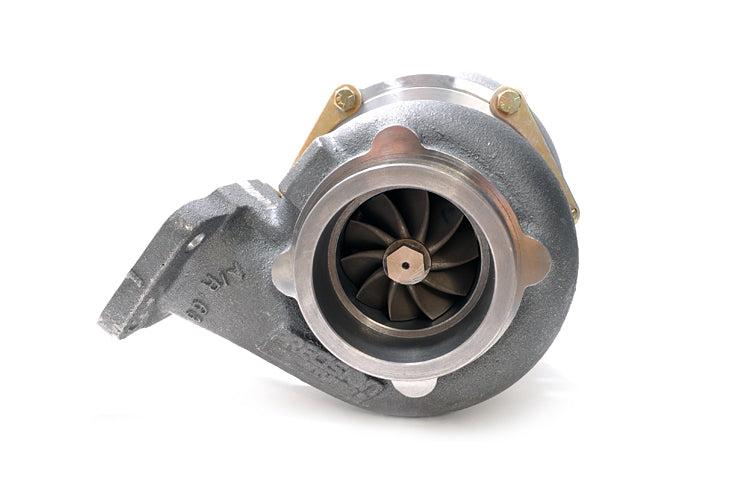

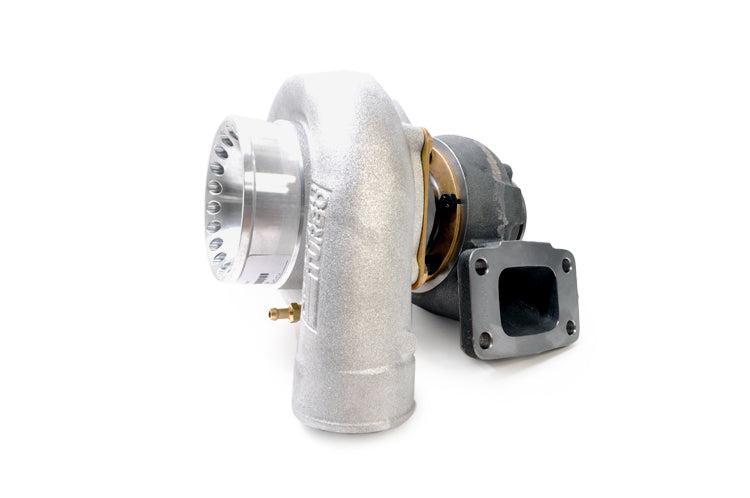

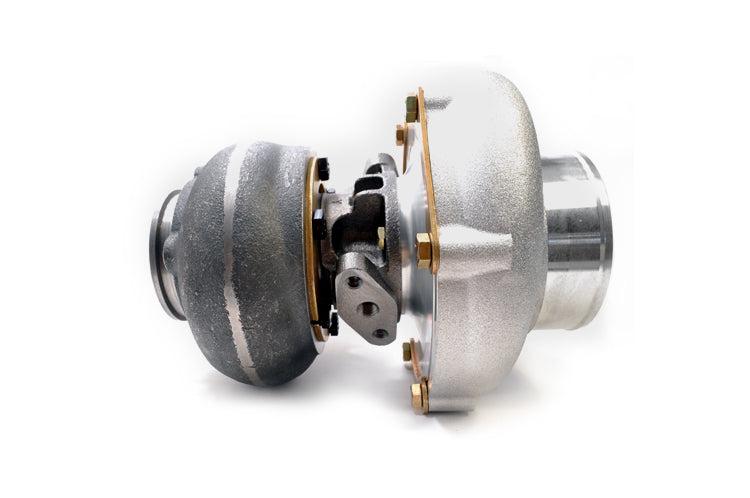

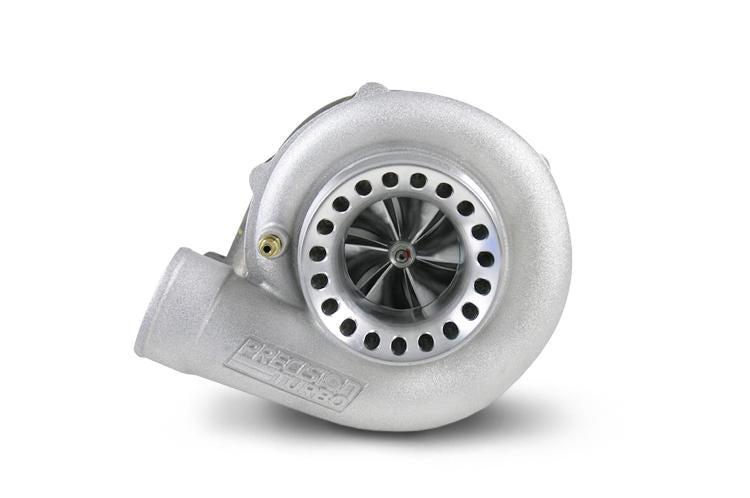

The PTE PT5558 Gen 1 Turbo is rated for 590 HP with a ball bearing CHRA. This is the 'Gen1' version with the 6-bladed CEA compressor wheel. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.

Features:
• Ball Bearing (Air-Cooled, Dual Ceramic)
• Gen1 6-Blade CEA Compressor Wheel
• 55mm Inducer Compressor Wheel
• 58mm, 76 Trim Turbine Wheel
• Rated for 590 HP
• PTE 'Street and Race Turbo'

Compressor Cover Options:
• B Cover (2.8' Inlet / 2.0' Outlet)
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet

Turbine Housing Options:
• T3 .48, .63 or .82 A/R with 4-Bolt (2.5') Outlet
• T3 .48 or .63 A/R with 5-Bolt Outlet (with or without wastegate hole)
• T3 .48, .63 or .82 A/R with 3' OD V-Band Outlet
• V-Band T3 Inlet .64 or .82 A/R with V-Band Outlet
• T4 Tangential .58 A/R with 3 5/8' OD V-Band Outlet

Also Available Journal Bearing:
•

Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.

PT5558 Ball Bearing Options
B Compressor Cover (2.8' Inlet / 2.0' Outlet)

PT5558 Ball Bearing Options
E Compressor Cover (3.0' Inlet / 2.0' Outlet)

PT5558 Ball Bearing Options
SP Compressor Cover (4.0' Inlet / 2.5' Outlet)
