PTE 5558 Gen1 CEA Journal Bearing Turbo (590 HP)
922.24€
Sold By: Baltic Turbo Motors
The PTE PT5558 Gen1 Turbo is rated for 590 HP with a journal bearing CHRA. This is the 'Gen1' versio
SKU: PTE-10501006089
Categories: Performance Parts
Share:

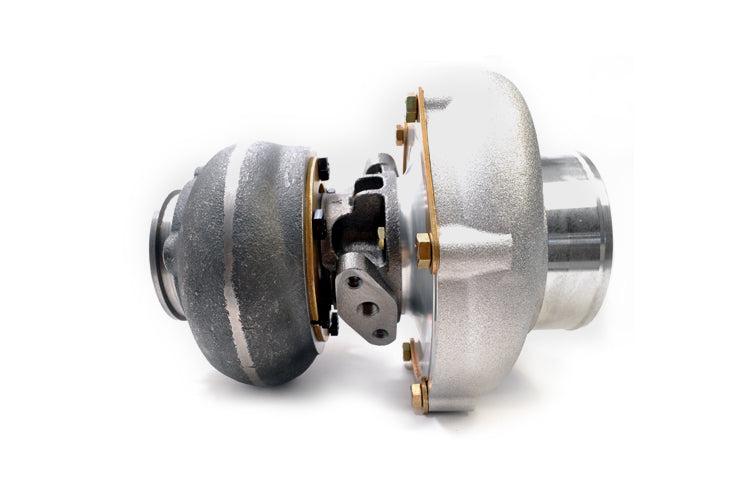

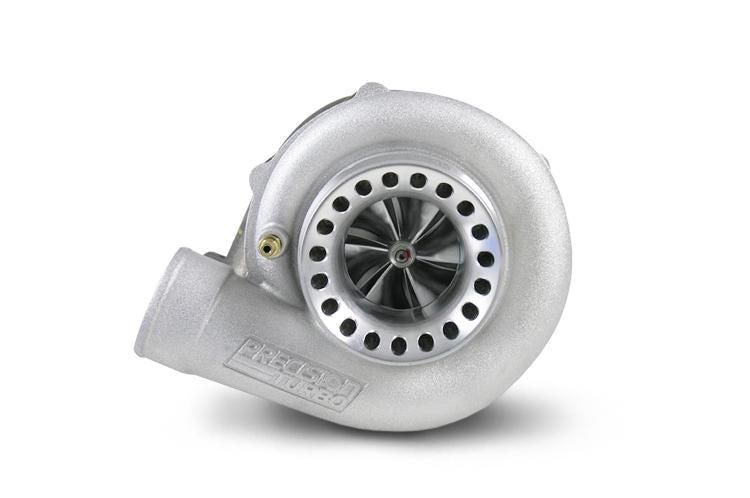

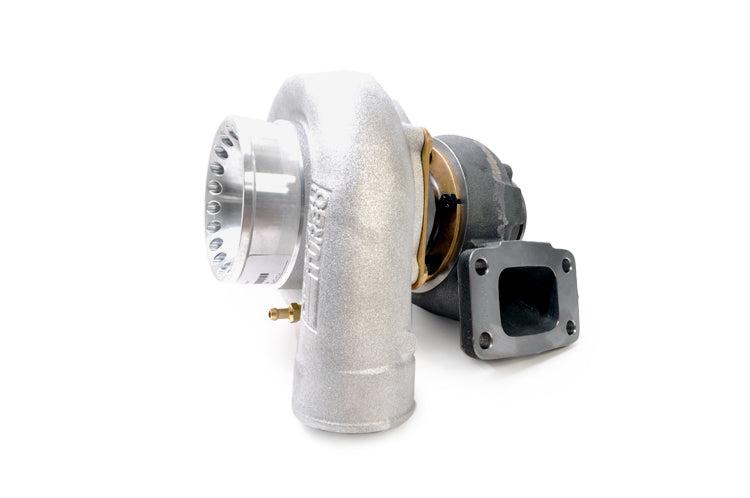

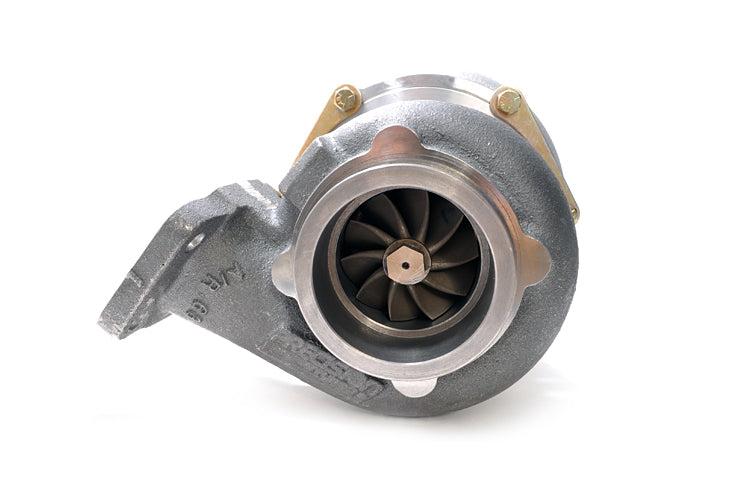

The PTE PT5558 Gen1 Turbo is rated for 590 HP with a journal bearing CHRA. This is the 'Gen1' version with the 6-bladed CEA compressor wheel. Photos are for reference as each turbo can be configured differently. Please review all options for the compressor cover, exhaust housing inlet and outlet and A/R ratios.
Features:
• Journal Bearing (JB) Hydrodynamic 360° Thrust Bearing System
• Gen 1 6-blade CEA Compressor Wheel
• 55mm Inducer Compressor Wheel
• 58mm, 76 Trim Turbine Wheel
• Rated for 590 HP
• PTE 'Street and Race Turbo'
Compressor Cover Options:
• B Cover (2.8' Inlet / 2.0' Outlet)
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet)
Turbine Housing Options:
• T3 .48, .63 or .82 A/R with 4-Bolt (2.5') Outlet
• T3 .48 or .63 A/R with 5-Bolt Outlet (with or without wastegate hole)
• T3 .48, .63 or .82 A/R with 3' OD V-Band Outlet
• V-Band T3 Inlet .64 or .82 A/R with V-Band Outlet
• T4 Tangential .58 A/R with 3 5/8' OD V-Band Outlet
Also Available Ball Bearing:
•
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
See more about the different PTE housing options, compressor covers and PTE videos to help you get your turbo built correctly!
PT5558 Journal Bearing Options with
PT5558 Journal Bearing Options with
PT5558 Journal Bearing Options with
Features:
• Journal Bearing (JB) Hydrodynamic 360° Thrust Bearing System
• Gen 1 6-blade CEA Compressor Wheel
• 55mm Inducer Compressor Wheel
• 58mm, 76 Trim Turbine Wheel
• Rated for 590 HP
• PTE 'Street and Race Turbo'
Compressor Cover Options:
• B Cover (2.8' Inlet / 2.0' Outlet)
• E Cover (3.0' Inlet / 2.0' Outlet)
• S Cover Ported (4.0' Inlet / 2.5' Outlet)
Turbine Housing Options:
• T3 .48, .63 or .82 A/R with 4-Bolt (2.5') Outlet
• T3 .48 or .63 A/R with 5-Bolt Outlet (with or without wastegate hole)
• T3 .48, .63 or .82 A/R with 3' OD V-Band Outlet
• V-Band T3 Inlet .64 or .82 A/R with V-Band Outlet
• T4 Tangential .58 A/R with 3 5/8' OD V-Band Outlet
Also Available Ball Bearing:
•
Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.
See more about the different PTE housing options, compressor covers and PTE videos to help you get your turbo built correctly!
PT5558 Journal Bearing Options with
B Compressor Cover (2.8' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10501006089 | B Cover | T3 Inlet | 4-Bolt Outlet | .63 |
| 10501006159 | B Cover | T3 Inlet | 5-Bolt Outlet | .48 |
| 10501006169 | B Cover | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .48 |
| 10501006179 | B Cover | T3 Inlet | 5-Bolt Outlet | .63 |
| 10501006079 | B Cover | T3 Inlet | V-Band Outlet | .48 |
| 10501006099 | B Cover | T3 Inlet | V-Band Outlet | .63 |
| 10501006129 | B Cover | V-Band T3 Inlet | V-Band T3 Outlet | .64 |
| 10501006199 | B Cover | T4 Inlet | V-Band Outlet | .58 |
PT5558 Journal Bearing Options with
E Compressor Cover (3.0' Inlet / 2.0' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10502006069 | E Cover | T3 Inlet | 4-Bolt Outlet | .48 |
| 10502006089 | E Cover | T3 Inlet | 4-Bolt Outlet | .63 |
| 10502006159 | E Cover | T3 Inlet | 5-Bolt Outlet | .48 |
| 10502006169 | E Cover | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .48 |
| 10502006179 | E Cover | T3 Inlet | 5-Bolt Outlet | .63 |
| 10502006189 | E Cover | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .63 |
| 10502006079 | E Cover | T3 Inlet | V-Band Outlet | .48 |
| 10502006099 | E Cover | T3 Inlet | V-Band Outlet | .63 |
| 10502006119 | E Cover | T3 Inlet | V-Band Outlet | .82 |
| 10502006129 | E Cover | V-Band T3 Inlet | V-Band T3 Outlet | .64 |
| 10502006279 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .64 |
| 10502006139 | E Cover | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10502006149 | E Cover | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 10502006199 | E Cover | T4 Inlet | V-Band Outlet | .58 |
PT5558 Journal Bearing Options with
SP Compressor Cover (4.0' Inlet / 2.5' Outlet)
| PTE Part Number | Compressor Cover | Exhaust Housing Inlet | Exhaust Housing Outlet | A/R |
| 10504006069 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .48 |
| 10504006089 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .63 |
| 10504006109 | S Cover Ported | T3 Inlet | 4-Bolt Outlet | .82 |
| 10504006159 | S Cover Ported | T3 Inlet | 5-Bolt Outlet | .48 |
| 10504006179 | S Cover Ported | T3 Inlet | 5-Bolt Outlet | .63 |
| 10504006189 | S Cover Ported | T3 Inlet | 5-Bolt Outlet with Wastegate Hole | .63 |
| 10504006079 | S Cover Ported | T3 Inlet | V-Band Outlet | .48 |
| 10504006099 | S Cover Ported | T3 Inlet | V-Band Outlet | .63 |
| 10504006119 | S Cover Ported | T3 Inlet | V-Band Outlet | .82 |
| 10504006129 | S Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .64 |
| 10504006279 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .64 |
| 10504006139 | S Cover Ported | V-Band T3 Inlet | V-Band T3 Outlet | .82 |
| 10504006149 | S Cover Ported | V-Band T3 Inlet (Stainless Housing) | V-Band T3 Outlet (Stainless Housing) | .82 |
| 10504006199 | S Cover Ported | T4 Inlet | V-Band Outlet | .58 |
