Precision 5858 Gen 1 CEA Billet Turbo - 620HP

Precision 5858 Gen 1 CEA Billet Turbo - 620HP

HP Rating: 620

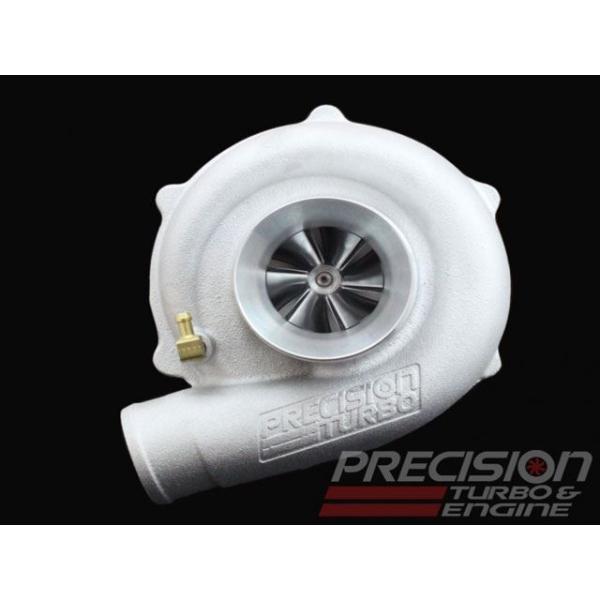

If you're looking for a cost effective turbo that can still make a lot of power, the PT5858 CEA® is a great choice. With a variety of housing options on both the hot and cold sides, we can help you spec out the perfect turbo for your vehicle. Featuring the revolutionary CEA® compressor wheel technology, this turbo offers excellent performance in an easy-to-manage size.

Ball Bearing Option Available

PTE's PT5858 Turbocharger features the following:
• Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
• Higher efficiency and faster transient response for maximum power and performance
• 58mm inducer compressor wheel

Compressor cover options:

- 'B' compressor cover 2.8' inlet/2.0' outlet
- 'E' compressor cover 3.0' inlet/2.0' outlet
- 'Ported S' compressor cover 4.0' inlet/2.5' outlet
• 58mm, 76 trim turbine wheel

Turbine housing options:

- T3 .48, .63 or .82 A/R with 4 bolt (2.5') discharge
- T3 .48 or .63 A/R with 5 bolt discharge (with or without wastegate hole)
- T3 .48, .63 or .82 A/R with 3' V-Band discharge
- V-Band inlet .64 or .82 A/R with V-Band discharge
- T4 Tangential .58 A/R with 3 5/8' V-Band discharge
- Buick .63 A/R
NOTE: Additional cost may apply for certain housings.
• Available with either a Hydrodynamic 360° thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)

Applicable Part#s: 10701006069, 10701006079, 10701006089, 10701006099, 10701006109, 10701006119, 10701006139, 10701006149, 10701006179, 10701006189, 10701206069, 10701206099, 10701206099, 10701206109, 10701206129, 10701206139, 10701206149, 10701206179, 10701206189, 10701206279, 10701206719, 10701206069, 10701206099, 10701206099, 10701206109, 10701206129, 10701206139, 10701206149, 10701206179, 10701206189, 10701206279, 10701206719, 10702206069, 10702206079, 10702206089, 10702206099, 10702206109, 10702206119, 10702206129, 10702206139, 10702206149, 10702206169, 10702206199, 10702206279, 10702206567, 10702206568, 10702206569, 10704006069, 10704006079, 10704006089, 10704006099, 10704006109, 10704006119, 10704006129, 10704006139, 10704006149, 10704006159, 10704006179, 10704006189, 10704006199, 10704006279, 10704006567, 10704006568, 10704006569, 10704206069, 10704206079, 10704206089, 10704206099, 10704206109, 10704206119, 10704206129, 10704206139, 10704206149, 10704206179, 10704206189, 10704206199, 10704206279, 10704206567, 10704206568, 10704206569
