NGK ILKAR8H6 96024 Laser Iridium Spark Plug for 2015+ WRX

NGK Laser Iridium spark plugs for the 2015+ Subaru WRX. Heat range 8, this is a stock-replacement plug. Sold individually. Price is for one plug, please adjust quantity as needed.

Vehicle Fitment:
2015+ Subaru WRX FA20T

Part Number: ILKAR8H6
Stock Number: 96024
Heat Range: 8
Thread Size: 12mm

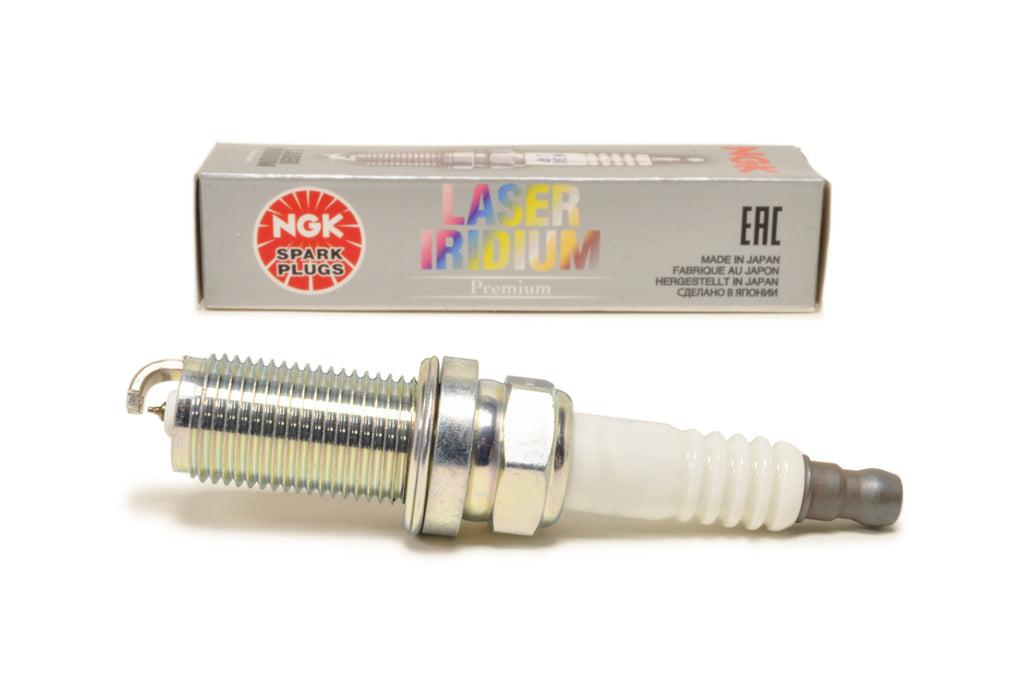

Pictured:
Photo is for reference. New pics coming soon!

More Info:
NGK Laser Iridium spark plugs provide superior ignitability and long service life.
Fine wire iridium tipped center electrode and fine wire platinum tipped ground electrode ensures slow wear rate providing stable idle, superior anti fouling, improved fuel efficiency and lower emissions.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

Shell:
Thread Size: 12mm
Thread Pitch: 1.25mm
Seat Type: Gasket
Resistor Value: 5K Ohm
Reach: 26.5mm (1.04')
Hex Size: 9/16' (14mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .024' (0.6mm)

Center Electrode:
Material: Iridium
Type: Fine Wire
Size: 0.6mm
Projection: Projected

Ground Electrode:
Material: Platinum
Type: Standard
Quantity: 1

Torque Specs:
Cast Iron: 10.8-18 lb. ft.
Aluminum: 10.8-14.5 lb. ft.
