NGK LZTR5A-13 4306 V-Power Spark Plug for Viper & SRT4

NGK LZTR5A-13 4306 V-Power spark plugs for the 2008-2016 Dodge Viper and Neon SRT-4 models. Sold individually. Price is for one plug, please adjust quantity as needed.

Vehicle Fitment:
2008-2016 Dodge Viper 8.4L V10 (Gen IV & V)
2003-2005 Dodge Neon SRT-4

Part Number: LZTR5A-13
Stock Number: 4306
Heat Range: 5
Thread Size: 14mm

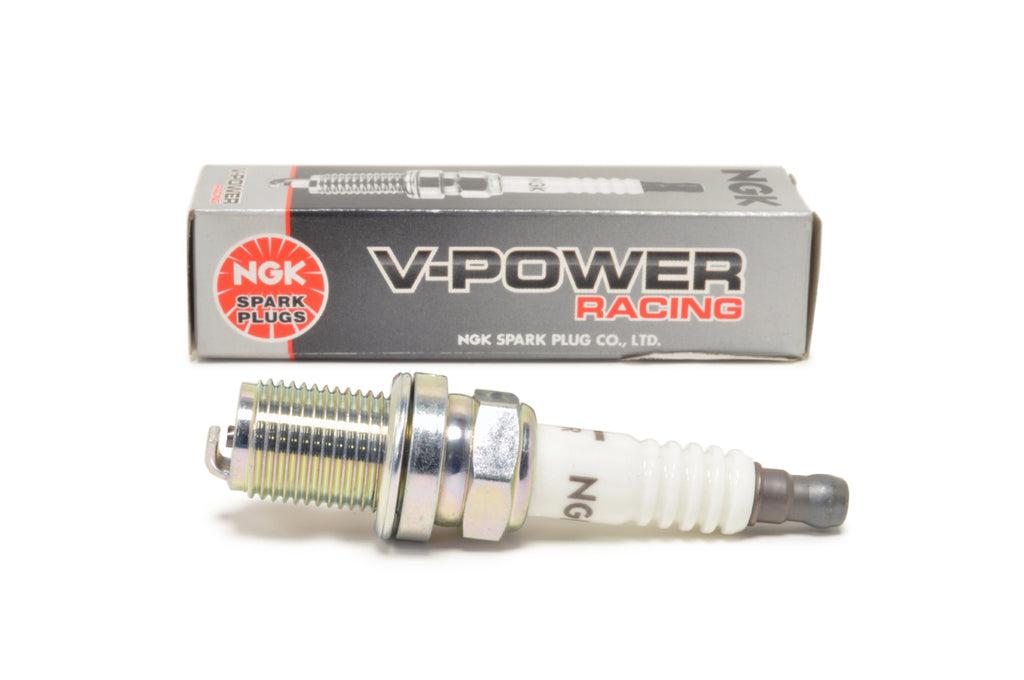

Pictured:
Photo is for reference. New pics coming soon!

More Info:
NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

Shell:
Thread Size: 14mm
Thread Pitch: 1.25mm
Seat Type: Tapered
Resistor Value: 5K Ohm
Reach: 25mm (1')
Hex Size: 5/8' (16mm)
Terminal Type: Solid
Overall Height: ISO
Gap: .050' (1.3mm)

Center Electrode:
Material: Nickel
Type: V-Cut
Size: 2.5mm
Projection: Extended Projection

Ground Electrode:
Material: Nickel
Type: Standard
Quantity: 1

Torque Specs:
Cast Iron: 10.8-18 lb. ft.
Aluminum: 7.2-14.5 lb. ft.
