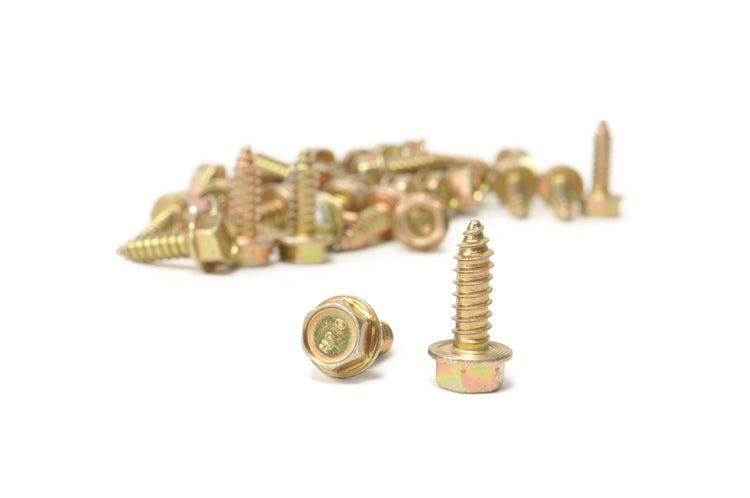

Moroso Wheel Rim Screws (90100)

When you have a hard time keeping your slicks on your wheels... Moroso wheel rim screws to the rescue! Made from Grade 8 steel with a built-in washer face and come with a gold iridite finish.

Includes:
• 35 Screws

Features:
• Manufactured from rugged Grade 8 steel to withstand the extreme loading placed on today's racing tires
• Self-tapping screws feature a built-in washer face for maximum holding strength
• Finished in gold iridite
• Use with 3/8' Socket
• Length: .750'
• Diameter: .250'

Install Instructions:
•

1. Mark and center punch eight locations evenly spaced around the outer flange of the rim so the screws will penetrate into the tire bead.
2. Drill the holes using a 13/64' drill bit. Leave enough room to the edge of the rim to accommodate a 3/8' socket.
3. Deburr the holes, then mount and inflate tires to 25 psi.
4. Use a 3/8' socket to install the screws through the rim and into the tire bead.
5. Inflate/Deflate tire to normal operating pressure.

NOTE: When installing the screws into the rim just snug them up. Over tightening will result in snapping the head off the screw.
