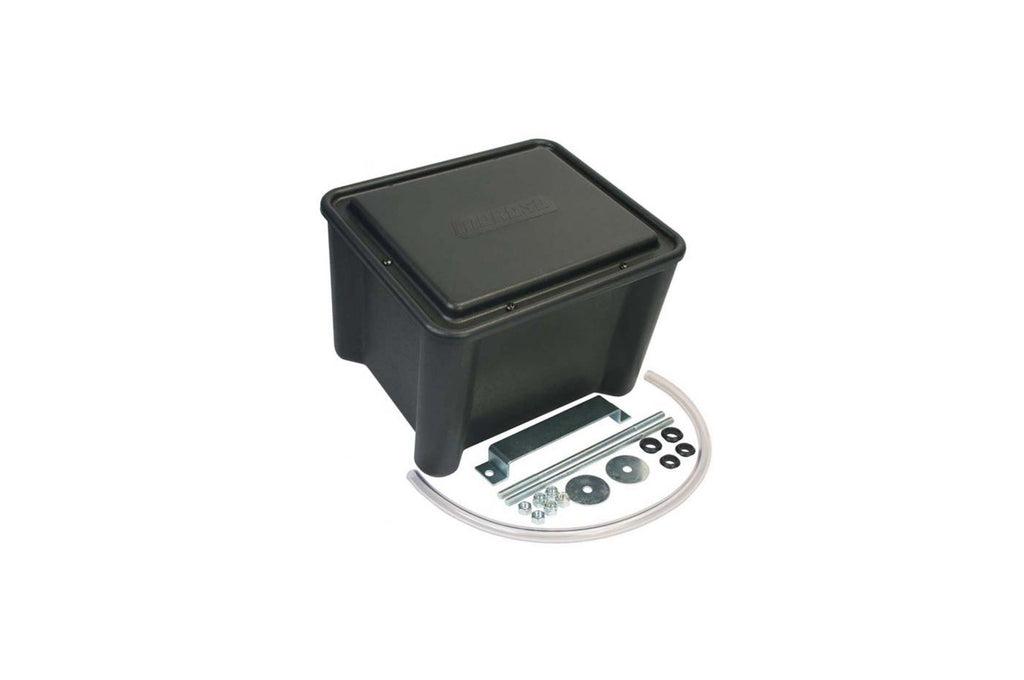

Moroso Universal Sealed Black Battery Box (74051)

The Moroso Sealed Battery Box is ideal for relocating a battery to the rear of any race, street, or show vehicle with or without a rear firewall. Fully approved for racing by NHRA, IHRA and SCCA. Includes grommets and all mounting hardware.

Vehicle Fitment:
Universal Application

Install Notes:
• Does not include battery cable.
• Please use

Features:
• Ideal for relocating a battery to the rear
• Holds a Series 21, 24, 26, 34, 42, 54, 55, 56, 61, 62, 63, 85, 86, 96R battery with either top-post or side-post terminals
• Fully approved for racing by NHRA, IHRA, and SCCA
• Includes grommets and all mounting hardware

Dimensions:
• External: 13.125' Length
• External: 13.125' Width
• External: 13.125' Height
• Internal: 10.50' Length
• Internal: 8.25' Width
• Internal: 8.50' Height

Includes:
(1) Battery Box
(1) Zinc Plated Hold Down
(2) 3/8' Locking Nuts
(1) Molded Lid
(2) 3/8' Hex Nuts
(2) 3/8' 12 Point Nuts
(2) Small Plastic Grommets
(2) 3/8' Dia. Hold Down Studs
(1) 4Ft. EPDM Lid Seal
(2) Large Plastic Grommets
(2) Flat Washers
(6) Pilot Studs
(6) Neoprene Washers
(6) Receptacles
(2) Vent Tubing

Install Instructions:
•
