Moroso Baffled Oil Pan for 1G DSM 6-Bolt (20960)

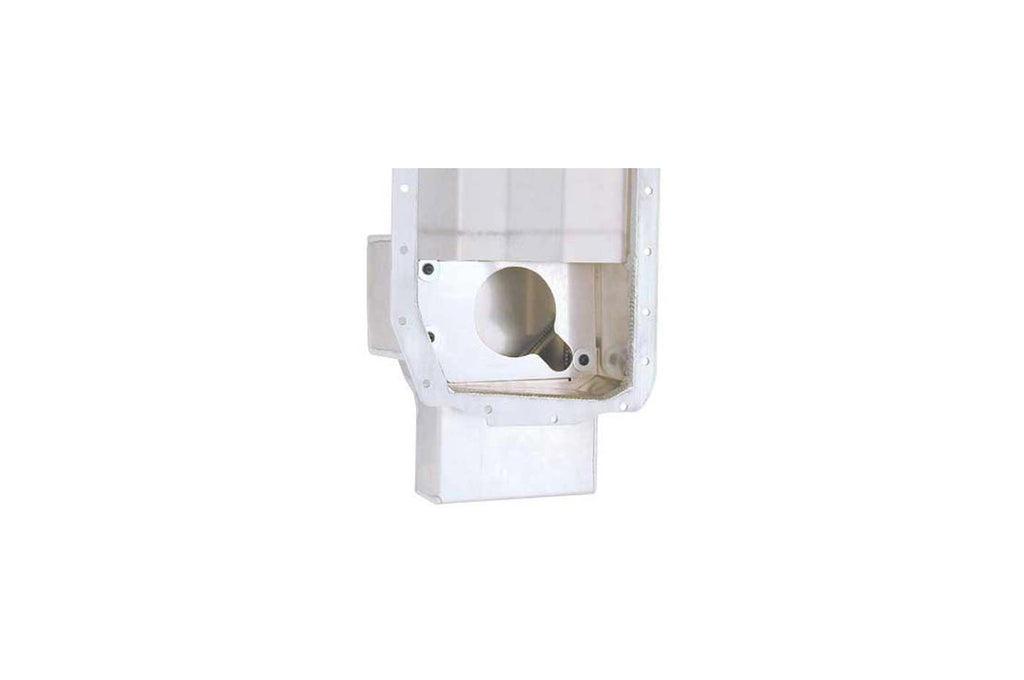

The Moroso 6.25 Quart Aluminum Oil Pan is a direct replacement fitment for the 6-Bolt 4G63 DSM and is compatible with the factory oil pickup tube and oil pump. Built-in mounting flange allows the use of the stock turbo drain tube. Features a one piece, 1/4' thick billet aluminum rail providing a rigid flange for a leak-free seal and trap door baffles provide adequate oil control for drag & road racing situations. Includes new mounting hardware and magnetic drain plug.

Vehicle Fitment:
6-Bolt 4G63 1G DSM
1990-1992.5 Eclipse GST/GSX
1990-1992.5 Talon TSi
1990-1992.5 Laser RS
1991-1992.5 Galant VR4

Features:
• Compatible with FWD and AWD

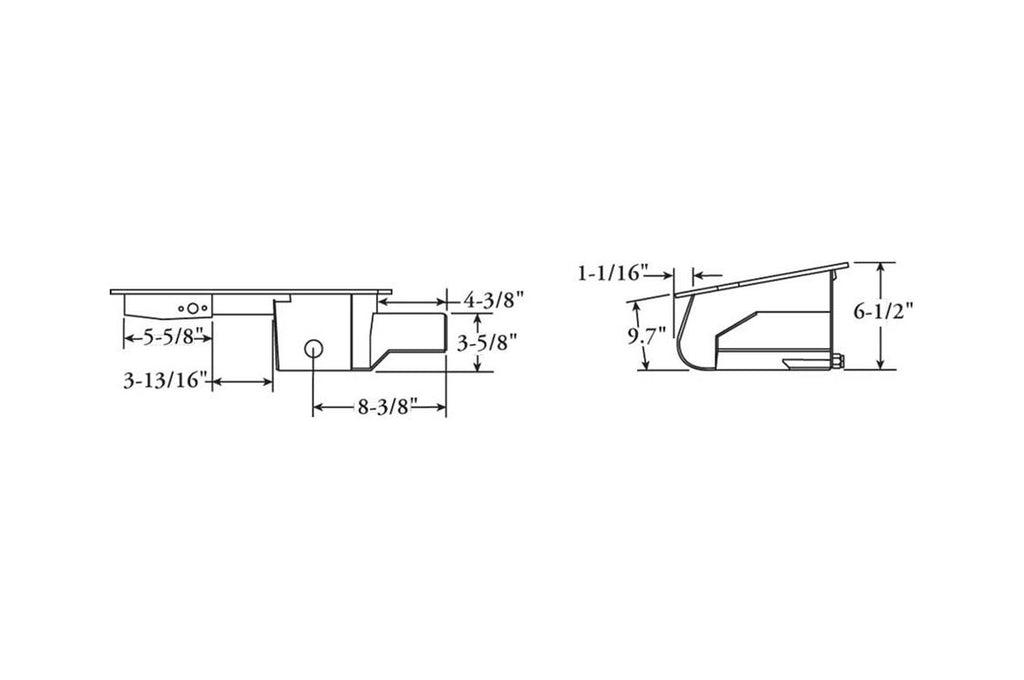

• 6.5' deep
• 1/4' thick billet aluminum pan rail provides a rigid flange for leak-free seal
• Accommodates stock pan gasket
• Trap door baffles provide adequate oil control for drag & road racing
• Built-in mounting flange allows the use of the stock turbo drain tube
• 1/2' NPT bung accommodates oil temperature sender
• Includes mounting kit with hex-drive studs and serrated-face flare nuts
• Magnetic drain plug included
• Use stock oil pump and pickup

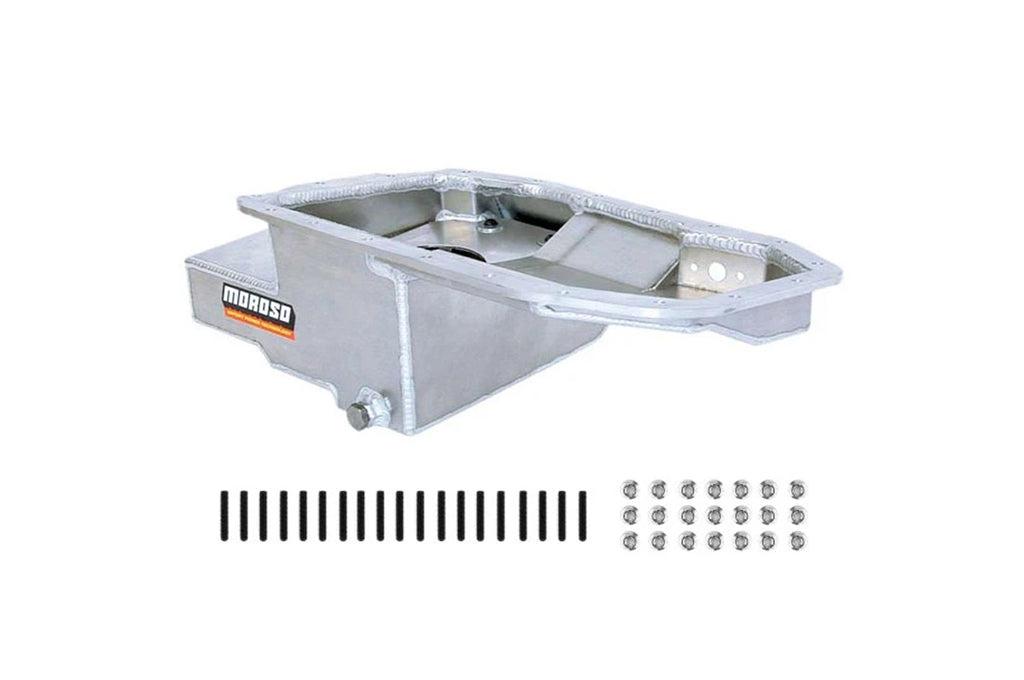

Includes:
(1) Aluminum Oil Pan
(1) Plug (1/2' NPT)
(1) Magnetic Drain Plug (1/2' NPT)
(21) Nuts
(19) Studs

Install Instructions:
•
