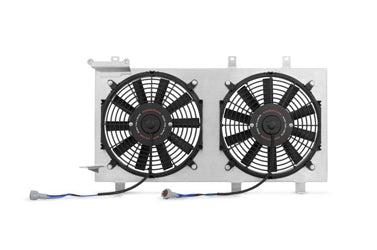

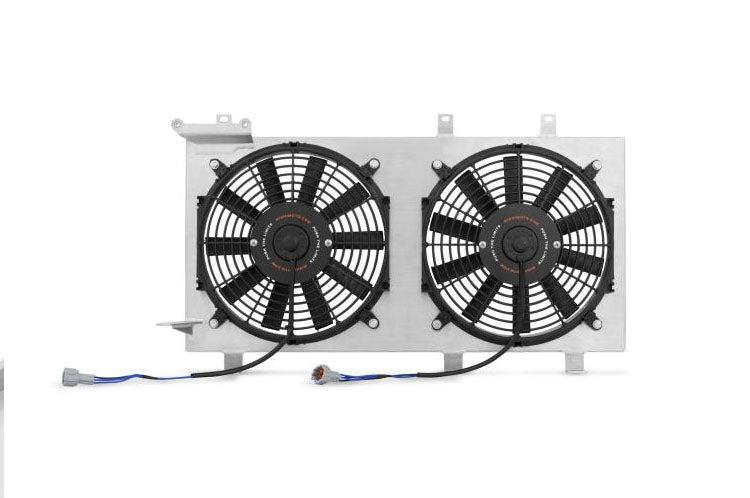

Mishimoto Fan Shroud Kit for 02-07 WRX/STi (MMFS-WRX-01P)

Vehicle Fitment:
2002-2007 Subaru WRX
2004-2007 Subaru STi

Description:
The Mishimoto Subaru fan shroud kit includes pre-wired factory pigtails for a plug-and-play connection and true, direct fit which eliminates the need to splice into your harness.

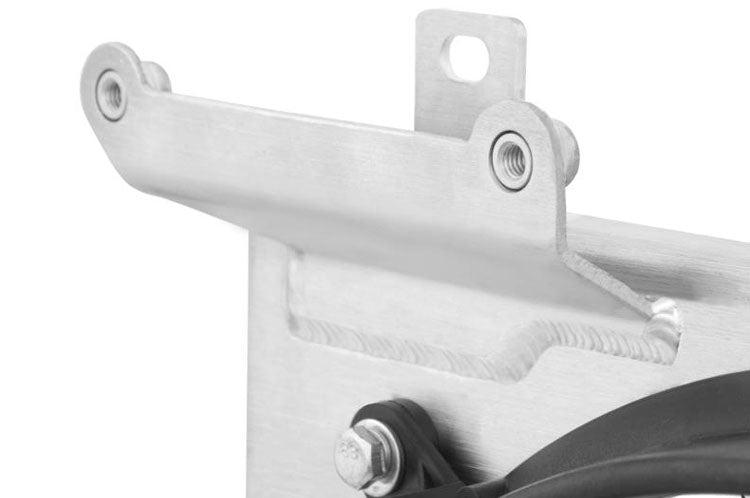

Constructed from lightweight aircraft-quality TIG-welded aluminum with a brushed finish. Utilizes two high-flow 12' fans, which are highly efficient for reducing engine-bay heat and coolant temperatures. Includes provisions for mounting the factory overflow bottle to the shroud for a hassle-free installation. This fan shroud kit is covered by the Mishimoto Lifetime Warranty

• Direct plug-n-play for 2004–2007 WRX/STi

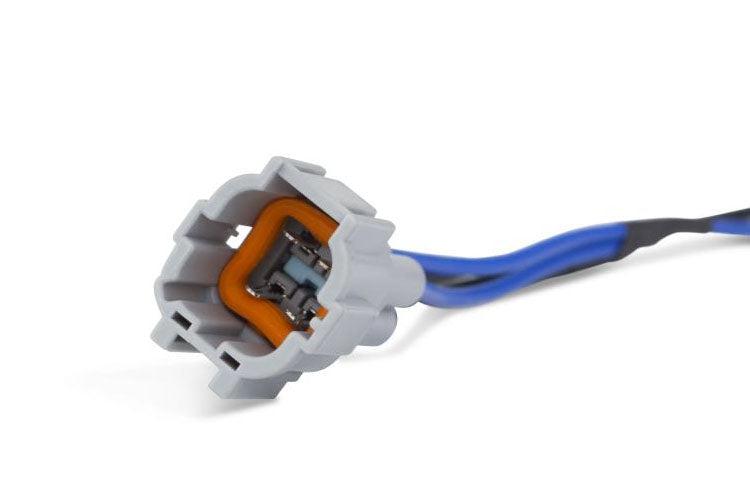

• Includes factory plugs for easy installation
• Fits both stock and Mishimoto radiators
• Accommodates stock coolant overflow
• Maximizes airflow
• Includes two fans, each over 900 CFM
• Includes all mounting hardware
• Brushed aluminum finish
• Mishimoto Lifetime Warranty

Install Notes:
This fan shroud is compatible with the stock overflow tank, fan plugs, and stock radiator.

Please purchase two (2) plug adapters (P/N 45128FE000) from your dealership when used with 02-03 vehicles.

Electric fans already come attached to the shroud.

Specs:
Weight 7.75 pounds
Width 3.5'
Length 28.5'
Height 15.7'
CFM 2300

Purchase Includes:
(1) Aluminum Fan Shroud

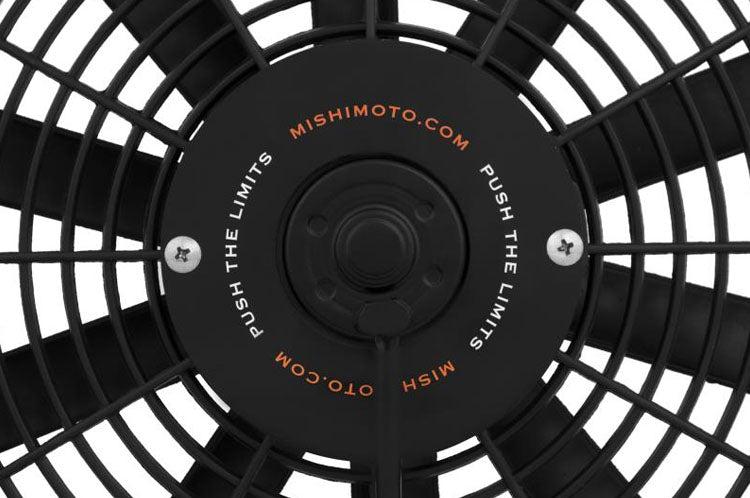

(2) 12' Mishimoto slim electric fans with stock style connectors
(5) M6 x 1.00 Screws
(3) M8 x 1.25 Screws
(3) M8 x 1.25 Nuts
Mishimoto Lifetime Warranty
