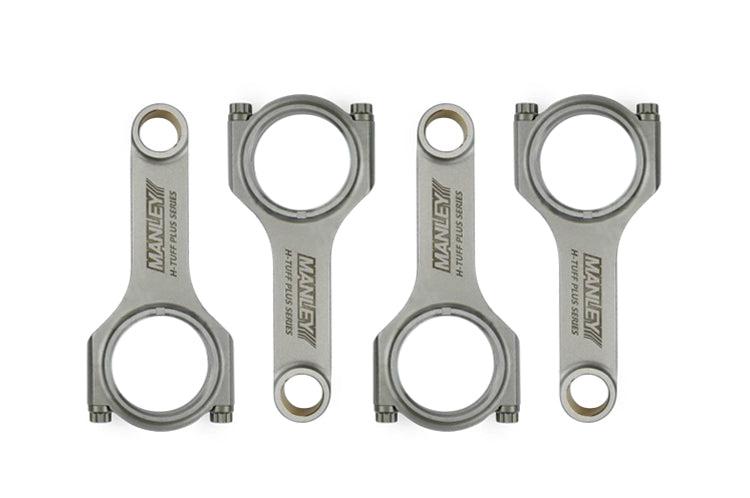

Manley H-Tuff Plus Steel Rods for 7-Bolt 4G63 DSM/Evo
773.32€
Sold By: Baltic Turbo Motors
Manley Performance H-Tuff Plus Steel Rods for the 7-Bolt 4G63 Evolution, Eclipse, Talon, laser and G
SKU: MAN-15022R6-4
Categories: Performance Parts
Share:
Manley Performance H-Tuff Plus Steel Rods for the 7-Bolt 4G63 Evolution, Eclipse, Talon, laser and GVR4 has a wider beam than the standard H-Beam rods. The H-Tuff Plus rods include the upgraded ARP 625+ rod bolts and are good to 950 crank horsepower. Includes a full set of 4 rods with Manley assembly lube.
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1992 Galant VR4
Features:
• Manufactured from 4340 forgings
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed
• Weight matched sets + 1.5 grams
• Cap fasteners are 3/8' ARP 625+ bolts.
• Flywheel horsepower range is 950
Includes:
Set of 4 Rods
Manley Lube
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1992 Galant VR4
Features:
• Manufactured from 4340 forgings
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed
• Weight matched sets + 1.5 grams
• Cap fasteners are 3/8' ARP 625+ bolts.
• Flywheel horsepower range is 950
Includes:
Set of 4 Rods
Manley Lube
| Manley H-Tuff Plus Steel Rods for 4G63 7-Bolt DSM/Evo: | |||||||
| Part Number | Application | Center to Center | Big End Bore | Big End Width | Pin Diameter | Pin Bore | Grams |
| 15022R6‑4 | 7-Bolt 4G63 | 5.905' | 1.890' | 1.038' | .866' (22mm Pin) | .8671' | 635 |
| Notes: 150mm Rod Length. Recommended bearings to be used: ACL 4B1185/H or Clevite CB-1643P. | |||||||
| 15020R6‑4 | 7-Bolt 4G63 | 6.142' | 1.890' | 1.038' | .866' (22mm Pin) | .8671' | 635 |
| Notes: 156mm Rod Length (.237 / 6mm Longer). | |||||||
