Kiggly 12-Tooth Crank Trigger Sensor Kit for 4G63 (CT12-V3) - 3550

The Kiggly Racing Crank Trigger Sensor features a 12-tooth billet crankshaft mounted trigger wheel providing robust, high accuracy engine position. Fits all 4g63 including 6-bolt, 7-bolt, DSM & EVO. Balance shafts must be deleted. Requires cam position sensor

Vehicle Fitment:
Mitsubishi 4G63 * Balance shafts must be deleted *
1992-2006 Evolution I-IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1992 Galant VR4

Features:
• Fits all 4g63 including 6-bolt, 7-bolt, DSM & EVO without Balance Shafts.
• 12-Tooth Version designed for use with an aftermarket ECU, such as Haltech and AEM. Does not work with stock ECU.
• 12-tooth billet crankshaft mounted trigger wheel provides robust, high accuracy engine position.
• A modified 1 pulse per revolution Cam signal is still required (1g, 2g, or EVO).
• Allows easy intake cam timing adjustments and supplies a more stable trigger signal, free of timing belt and valvetrain oscillations.
• Target Sensor Air Gap: 0.025-0.035'

Requires Cam Position Sensor (MD327107)
• Not included
• Required for use
•

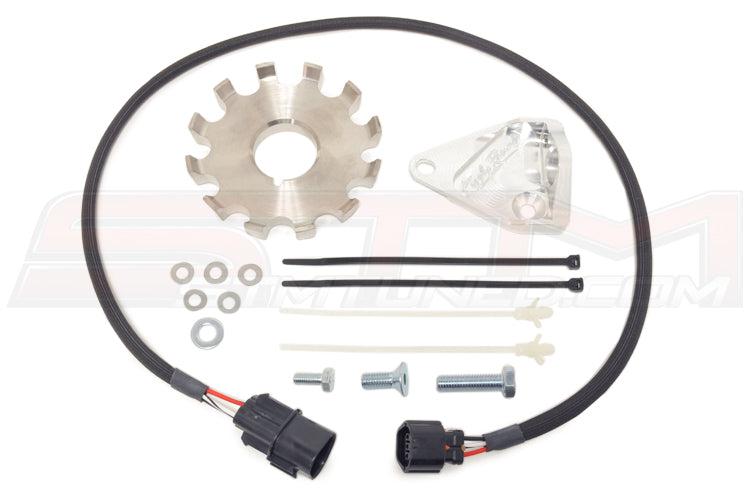

Includes:

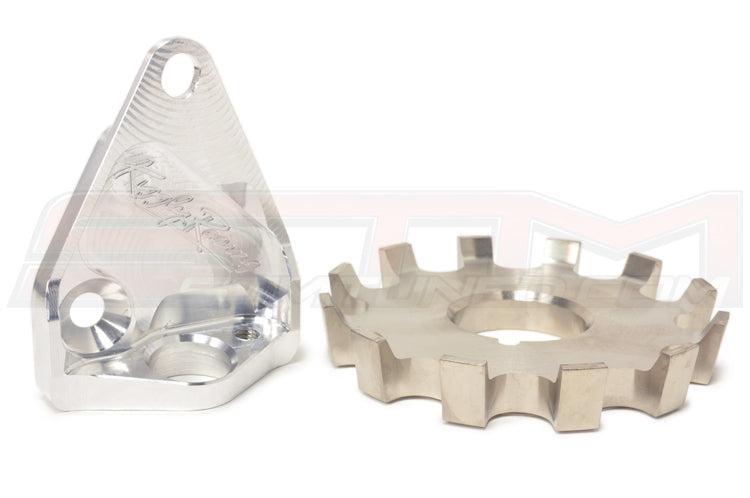

• 12-Tooth Billet Trigger Wheel
• Billet Mounting Bracket
• Plug-and-Play 2G/EVO Cable
• Mounting Hardware
