JMF Top Mount V-Band Exhaust Manifold for 1G/2G DSM * Discontinued*

Discontinued - No Longer Available
This manifold is no longer in production.

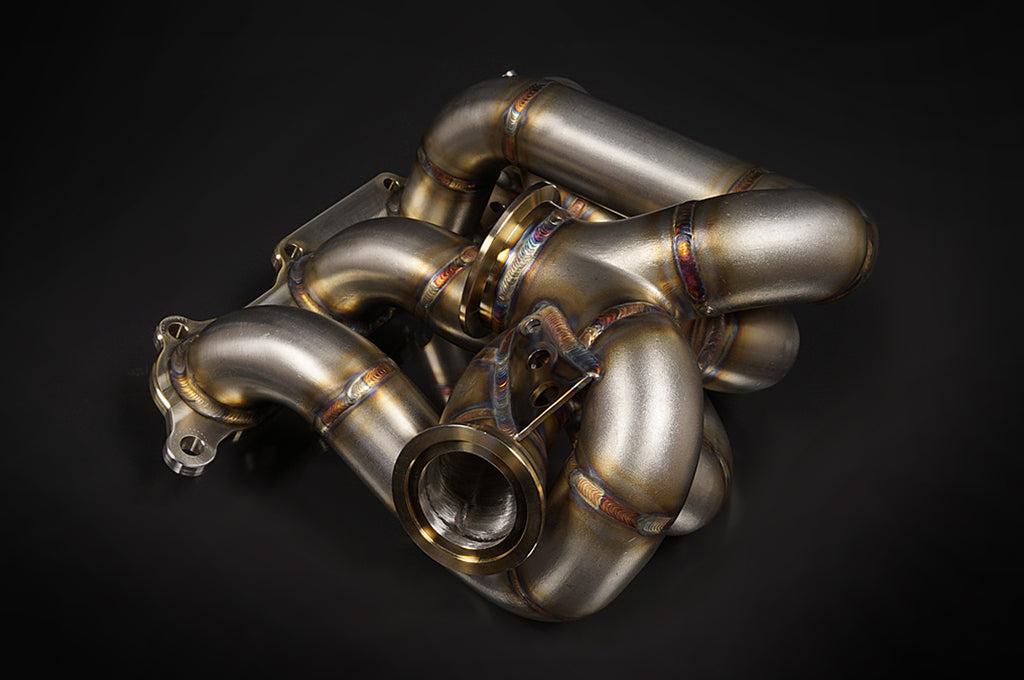

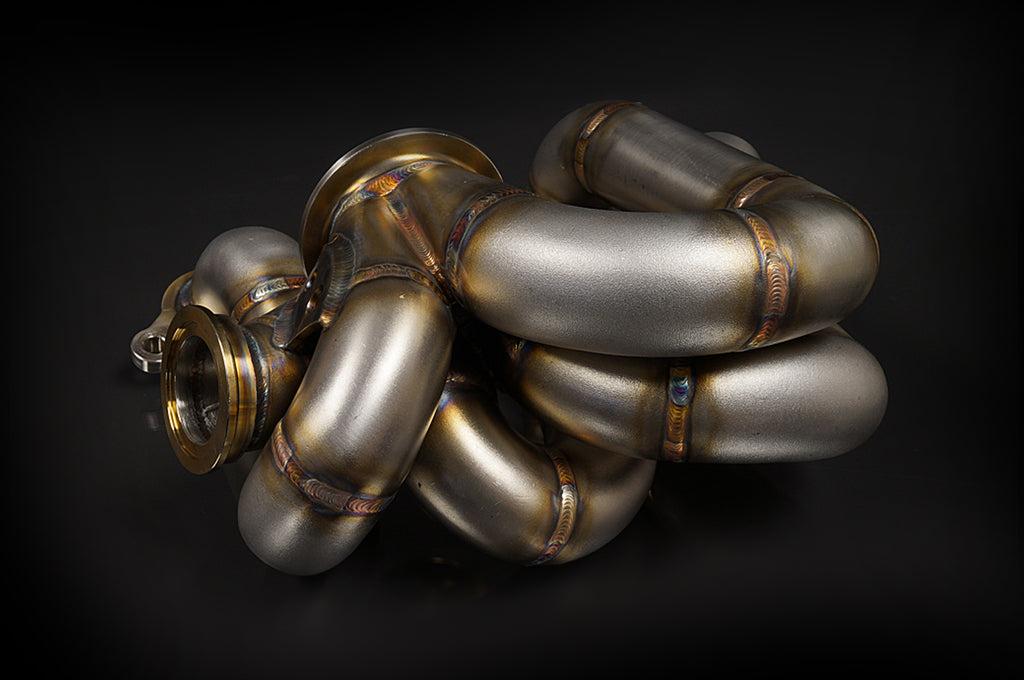

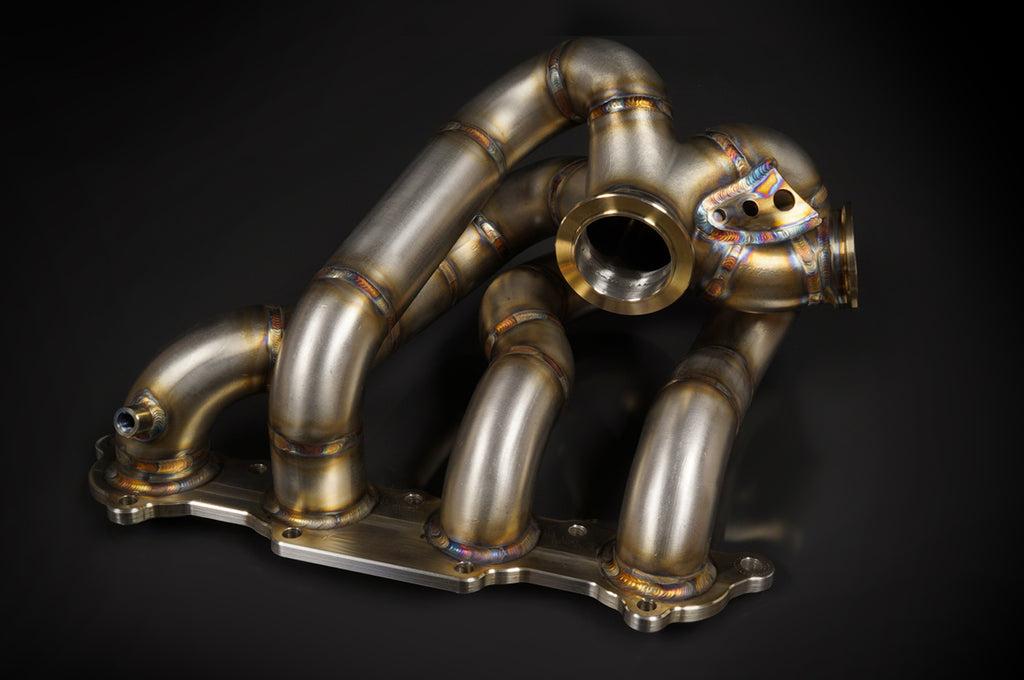

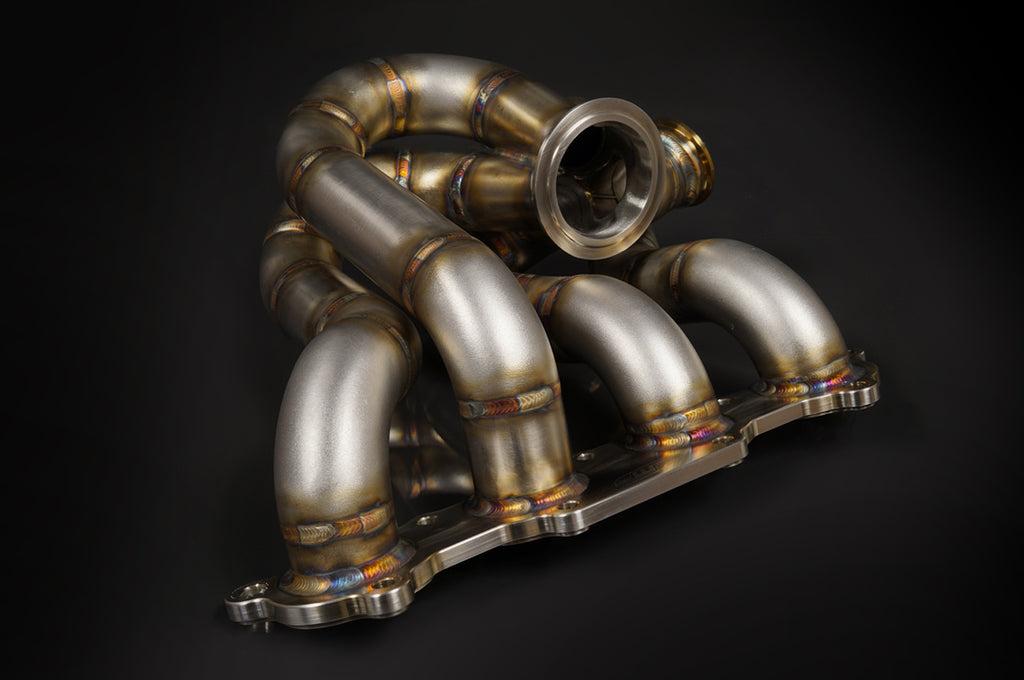

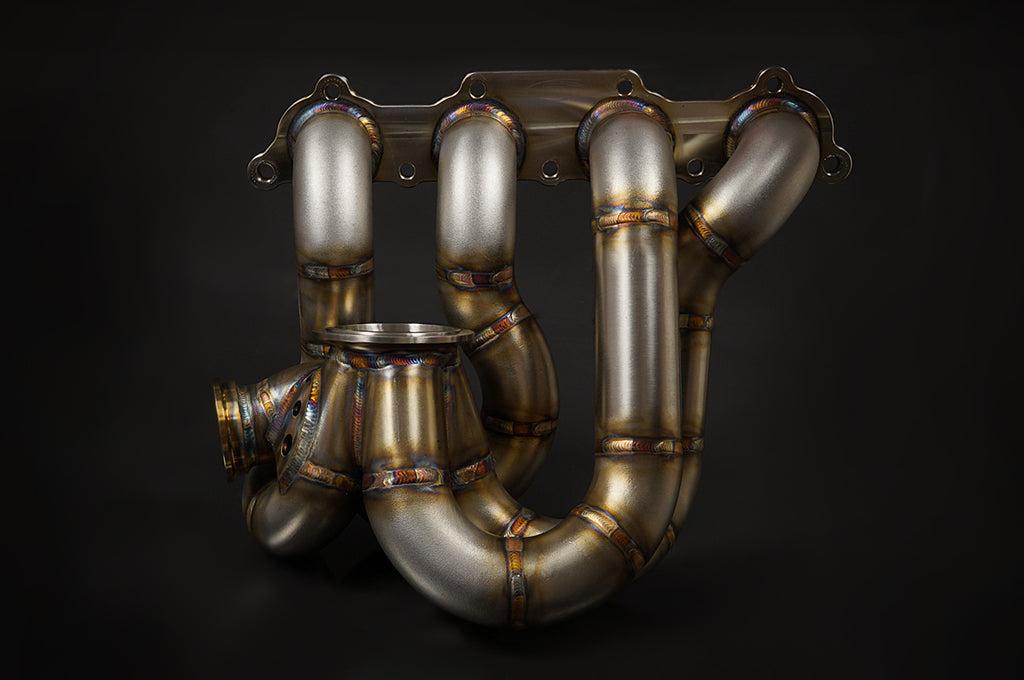

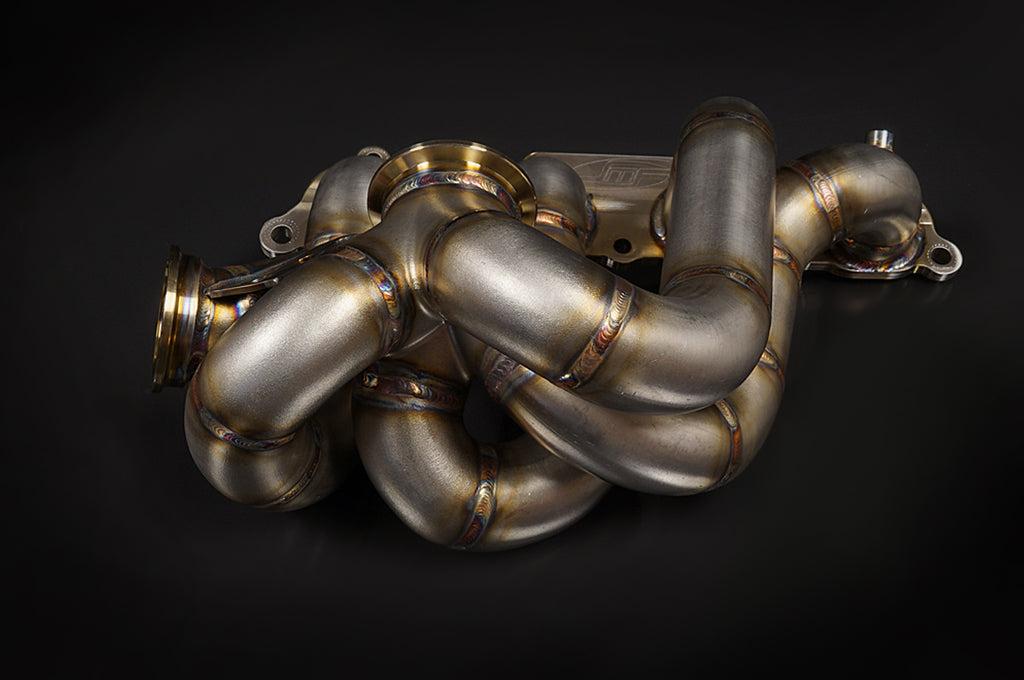

The JMF DSM top mounted v-band turbo exhaust manifold is made from thick-walled 304 stainless steel tubing featuring multi-pass TIG welded joints and CNC machined 1/2' thick 304 stainless steel flanges. The ports are gasket-matched and smoothed to perfection for the best flow and each flange is surfaced for a leak free seal. Designed to fit the TiAL and PTE V-Band turbine housings.

With this manifold on a 1G you will still be able to keep your power steering and a full size radiator however your fans will need to be relocated. Alternator relocation is required when running a 3.5' or larger exhaust. This manifold is designed to work with a 6-bolt block, it will fit a 7-bolt block but there is a small unnecessary portion of casting on the front of the 7-bolt block that will need to be sanded down slightly. 2G fitment is VERY tight with a full size radiator, it is recommended to use a half sized radiator for an easier install.

Vehicle Fitment:
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
