JMF Front Mount Intercooler for 1G DSM *Discontinued*

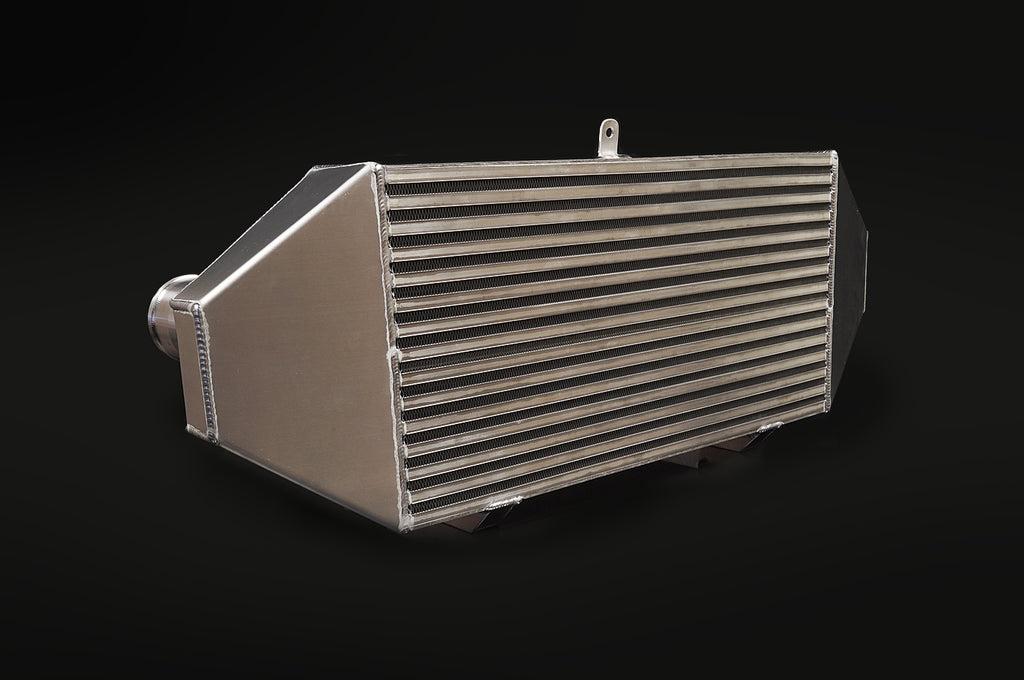

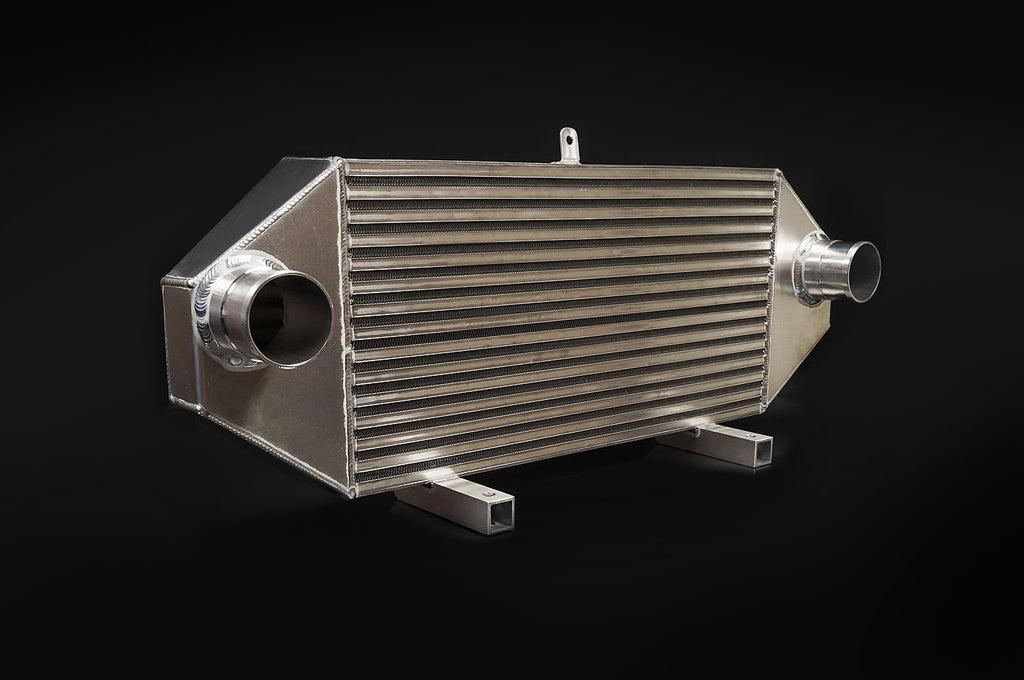

The JMF 1G DSM front mount intercooler uses a genuine Garrett core measuring in at a whopping 23.7' x 12' x 3.8' and can support up to 1,000 horsepower! The end tanks are welded inside and out to achieve maximum strength. The inlet/outlet is located on the back side for the shortest pipe routing options.

*Discontinued*
Unfortunately these have been discontinued by JMF. We have none remaining in stock.

Vehicle Fitment:
1G DSM
1990-1994 Eclipse GST/GSX
1990-1994 Talon TSi
1990-1994 Laser RS

More Info:
The bottom of the core features two heavy duty brackets that tie into the frame for solid mounting, the top features a universal mounting tab which will allow the end user to attach their own bracket in several locations depending upon their setup.

Install Notes:

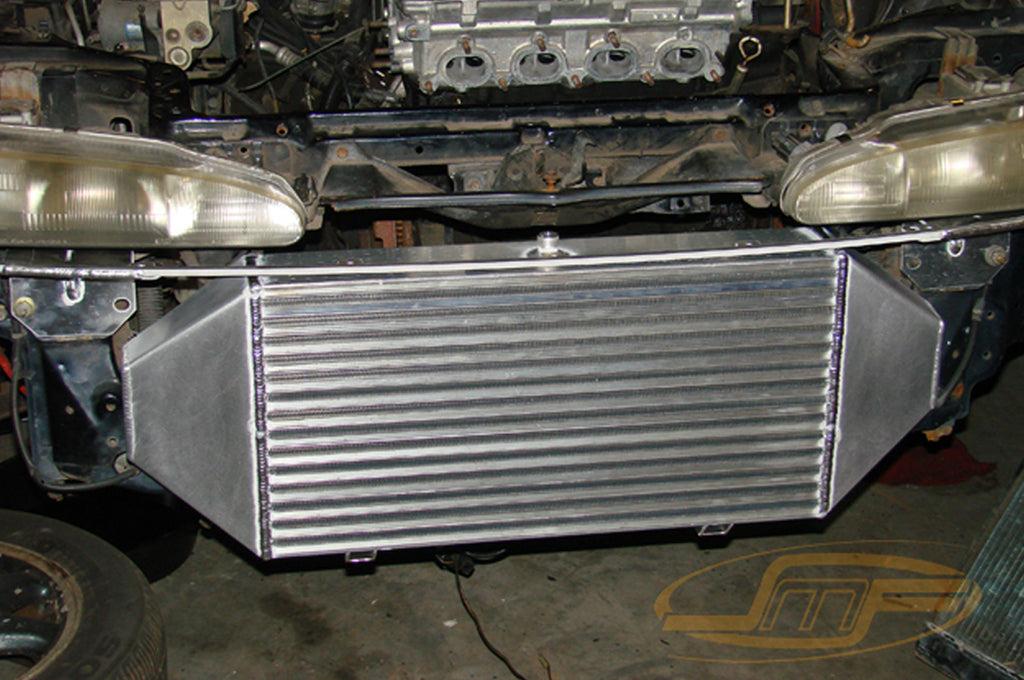

Cutting of your crash bumper and bumper cover will be required, you will also need to trim some material away from the radiator support to allow for clearance of the IC piping. Spacers may be required under the lower mounts to clear our 1G race bumper and other custom bumpers.

Includes:
(1) Intercooler

Shipping Times:
Usually ships in 2-3 weeks.

Shipping Details:
~ 35 pounds (41x19x9)
