GSC 4G63 Conical High Pressure Spring Kit (5079)
401.46€
Sold By: Baltic Turbo Motors
The GSC Power-Division high-pressure conical valve spring kit for Evo and DSM includes 16 titanium r
SKU: GSC-5079
Categories: Performance Parts
Share:
The GSC Power-Division high-pressure conical valve spring kit for Evo and DSM includes 16 titanium retainers and 16 conical valve springs. Designed to work with the OEM spring seat or . Able to use NEW OEM valve spring keepers or the keeper kit. No need for special aftermarket locks that have the potential of being the wrong angle.
Vehicle Fitment:
Mitsubishi 4G63
1992-2006 Evolution I-IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1992 Galant VR4
IN: 114 lbs @ 1.570' / EX: 120 lbs @ 1.550' install height
IN: 256 lbs @ 12.1mm lift / EX: 260lbs @ 12.0mm lift
Includes:

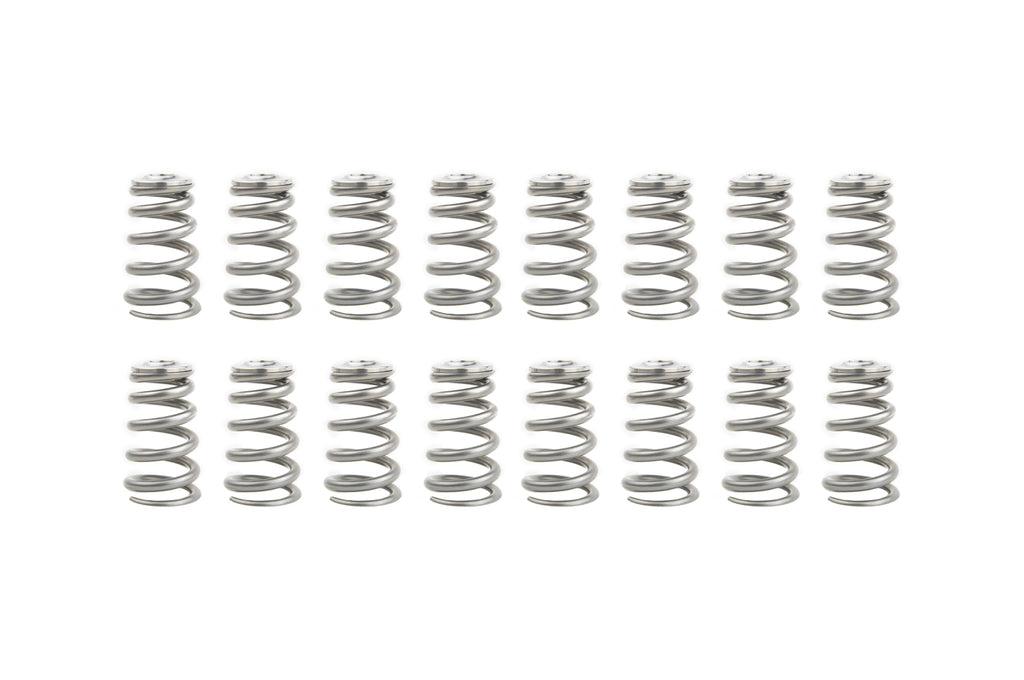

(16) Conical Valve Springs
(16) Titanium Retainers
More Info:

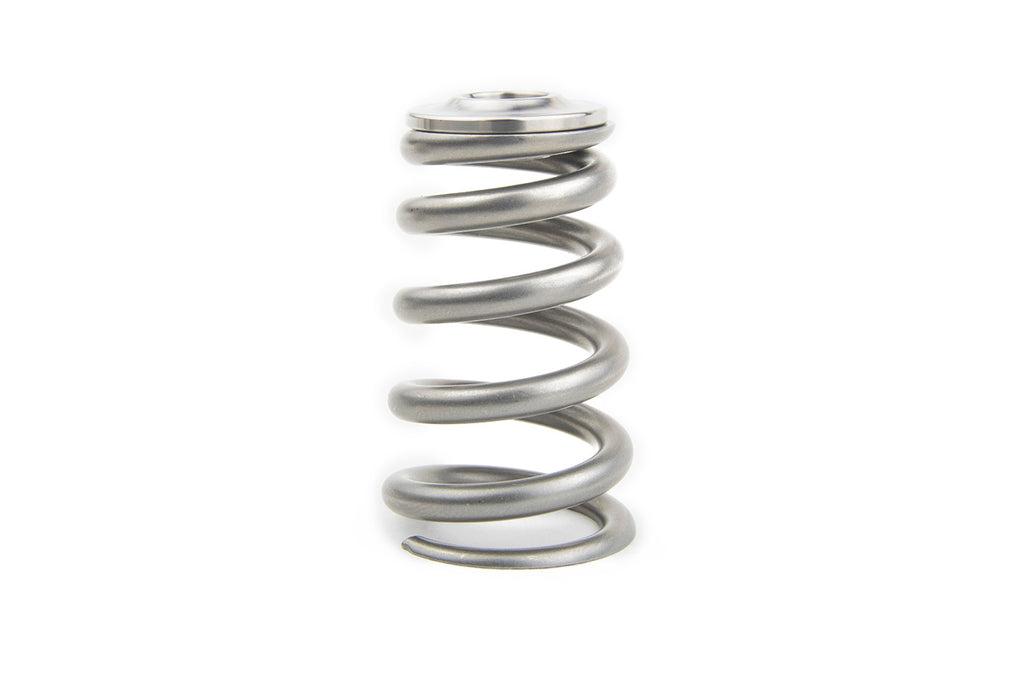

Conical springs allow for the use of a smaller, lighter retainer and have a varying spring rate allowing for higher RPM and more valve control.
Vehicle Fitment:
Mitsubishi 4G63
1992-2006 Evolution I-IX
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
1991-1992 Galant VR4
IN: 114 lbs @ 1.570' / EX: 120 lbs @ 1.550' install height
IN: 256 lbs @ 12.1mm lift / EX: 260lbs @ 12.0mm lift
Includes:
(16) Conical Valve Springs
(16) Titanium Retainers
More Info:
Conical springs allow for the use of a smaller, lighter retainer and have a varying spring rate allowing for higher RPM and more valve control.
| Part Number: | GSC5079 |
| Springs: | HP Beehive |
| Retainers: | Titanium |
| Coil Bind: | 0.952' |
| Install Height: | 1.570 / 1.550' |
| Seat Pressure: | 114 /120 lbs |
| Open Pressure, 12.00mm Lift: | 256 lbs @ 12.1mm lift 260lbs @ 12.0mm lift |
| Maximum Valve Lift: | 0.538' |
| Max RPM: | 10,500 |
| Max Boost: | 50 psi |
| Previous Beehive Part Number: | 5057 |
