GSC R35 GTR Conical Valve Spring Kit High Pressure (5069)

GSC Power-Division high pressure conical valve spring kit for the R35 GTR includes 24 titanium retainers, 24 conical valve springs and 24 valve spring shims. Rated for 1500+ HP.

Vehicle Fitment:
2009+ Nissan R35 GT-R VR38DETT

• IN: 102 lbs @ 1.324' / EX: 108 lbs @ 1.306' install height
• IN: 249 lbs @ 0.879' / EX: 255 lbs @ 0.861'

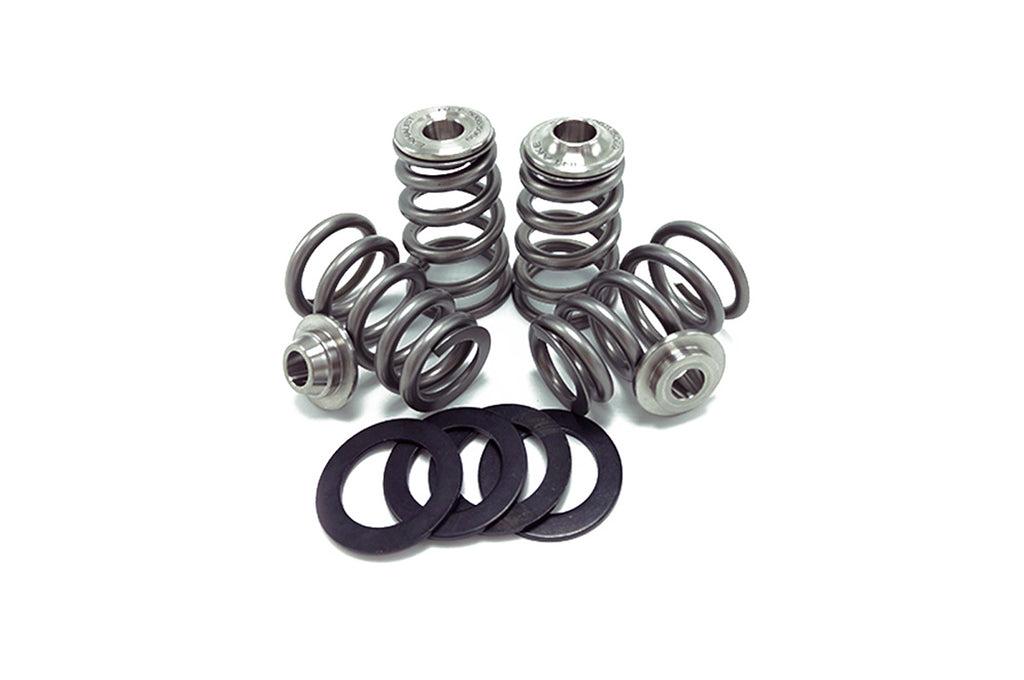

Includes:
(24) Titanium Retainers
(24) Conical HP Valve Springs
(24) Valve Spring Shims

More Info:
True conical valve springs are not a new concept and are industry proven to provide several key advantages over traditional spring designs. A major advantage of conical springs vs. traditional cylindrical or beehive springs is the damping and removal of valvetrain harmonics.

Of the three designs, conical springs are the front runners in valvetrain harmonic stability. Utilizing a varying coil diameter as well as coil spacing, a conical spring acts as a natural harmonic damper in the transfer of valvetrain shock. This translates to less stress, less wear, and a longer life of the included components.

This level of protection is needed in today’s engines being pushed to their physical and mechanical limits by aftermarket modifications. Every GSC conical spring offers a super finished surface treatment to go along with the patented, multi-step heat treatment process. The finished product is an extremely reliable, high-performance spring allowing the users to push higher RPMs, use more aggressive cam profiles, and turn up higher boost pressures.
